Home >> Cadillac >> 2003 >> CTS V6-3.2L VIN N >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Locations >> Component Locations

Component Locations

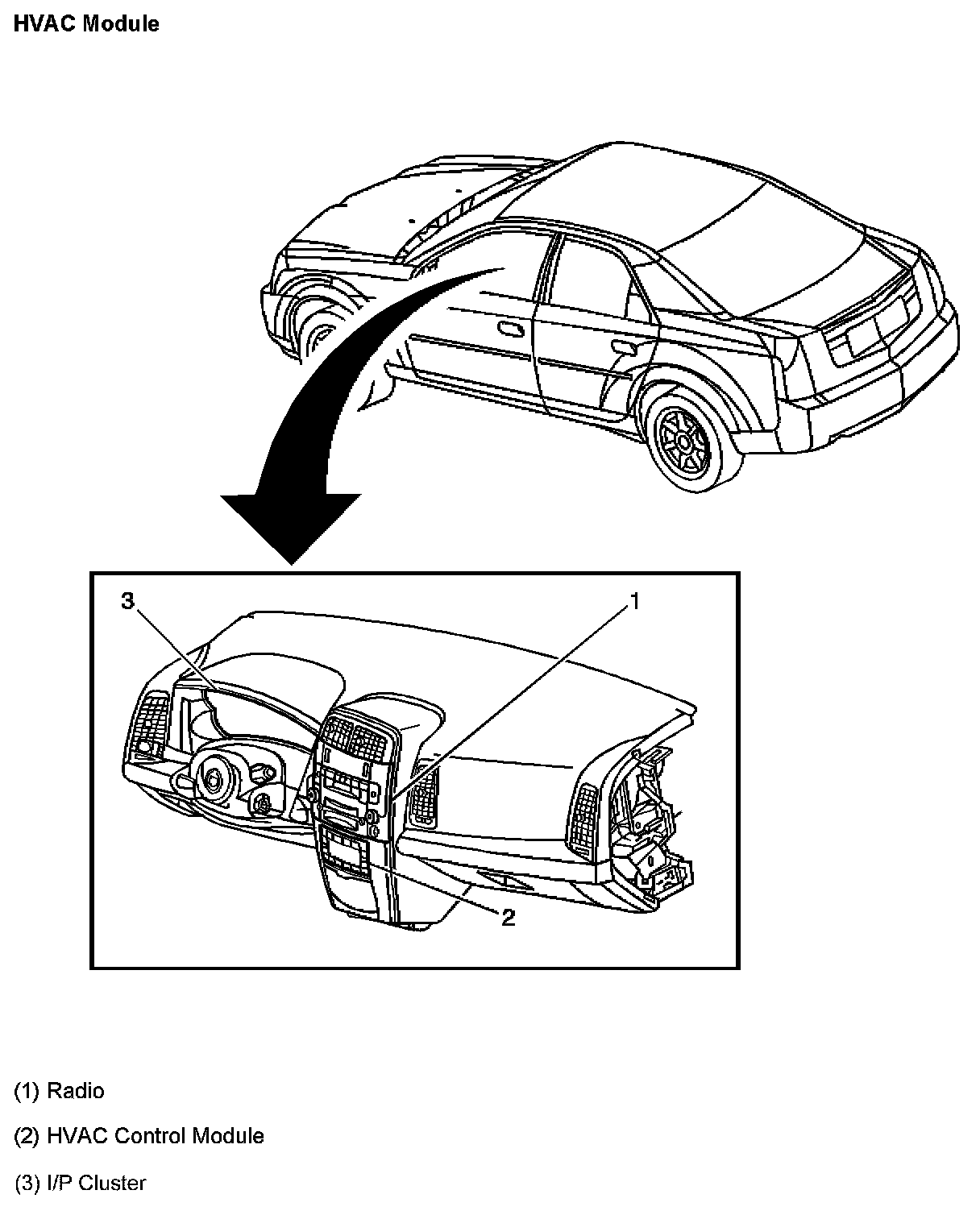

HVAC Module:

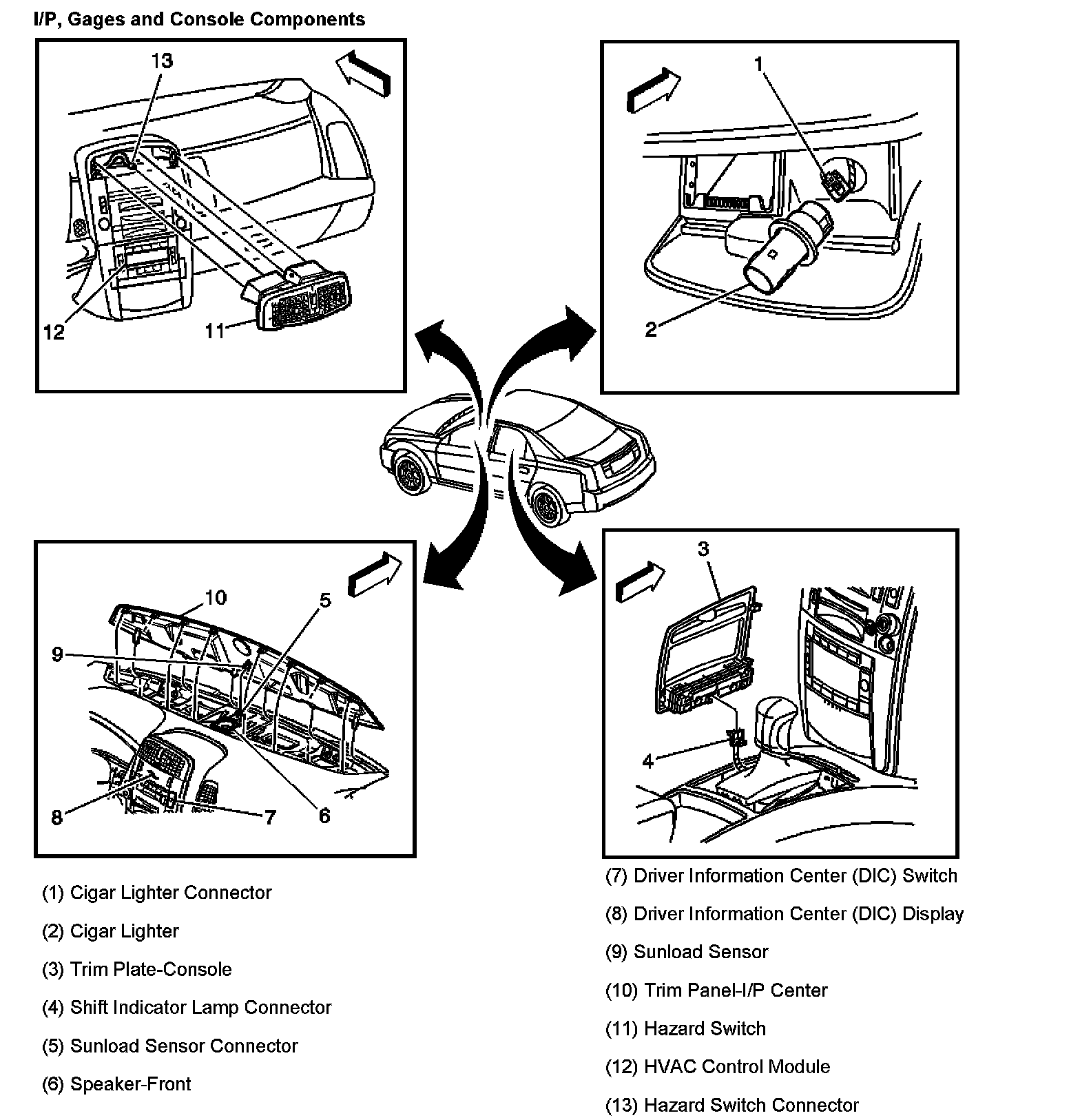

I/P, Gages And Console Components:
