Home >> Cadillac >> 2003 >> CTS V6-3.2L VIN N >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Center Support Assembly

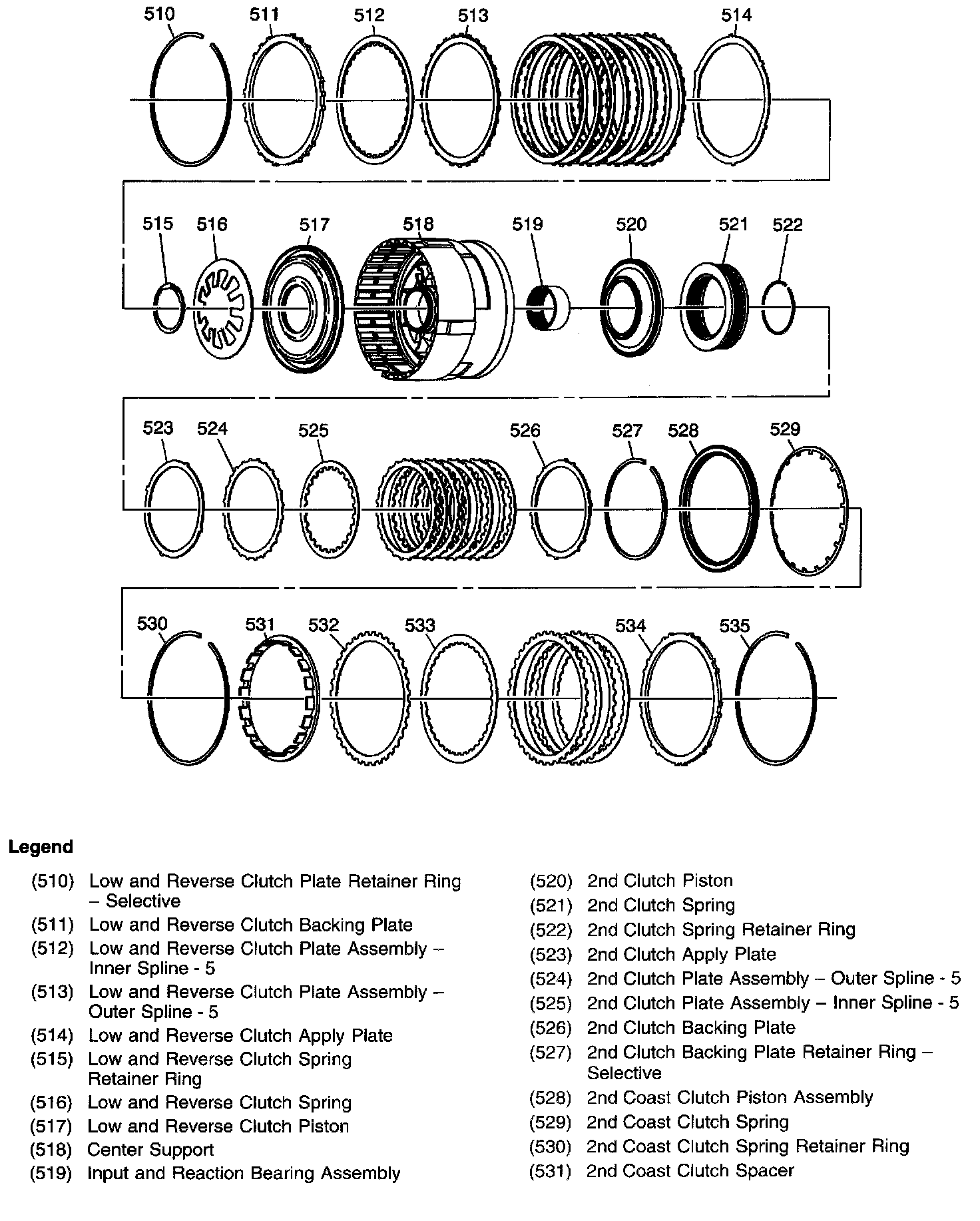

Center Support Assembly

Part 1 Of 2:



Part 2 Of 2:
