Connector Identification

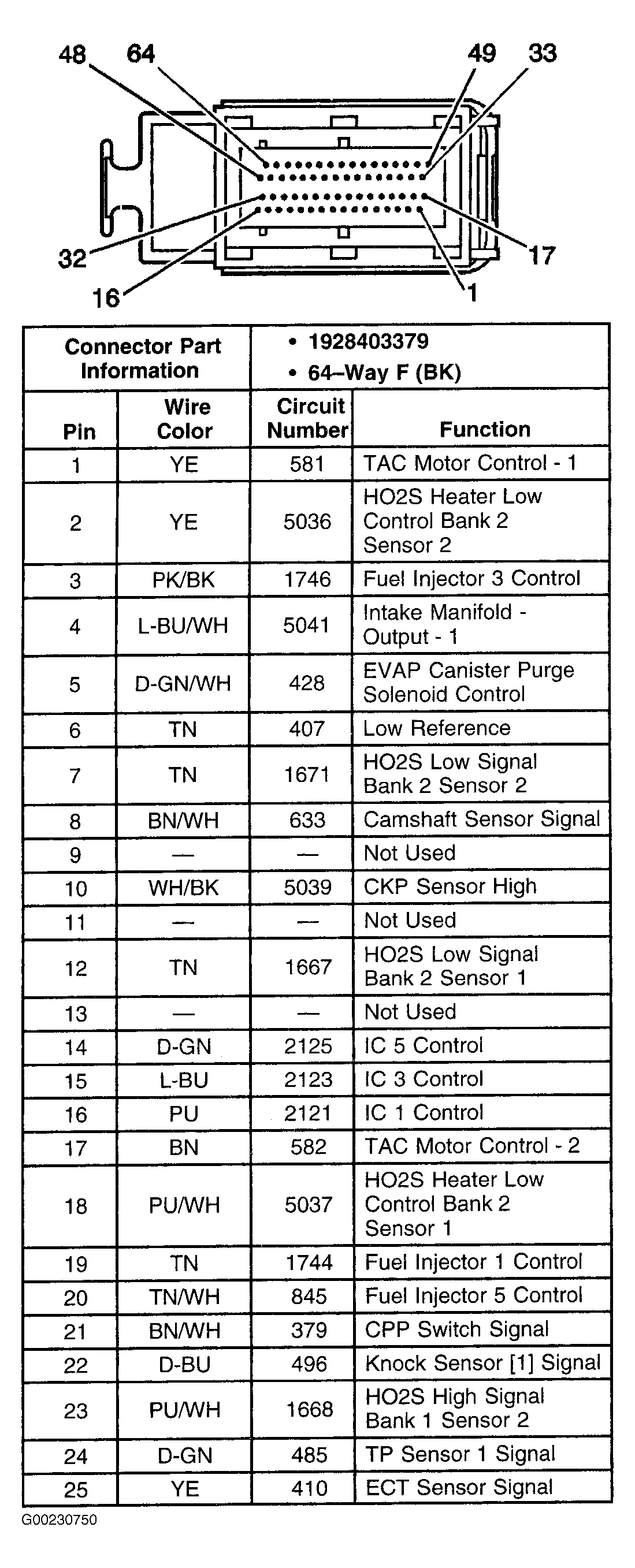

Fig 1: Identifying ECM C1 (1 Of 3)

G00230750

Courtesy of GENERAL MOTORS CORP.

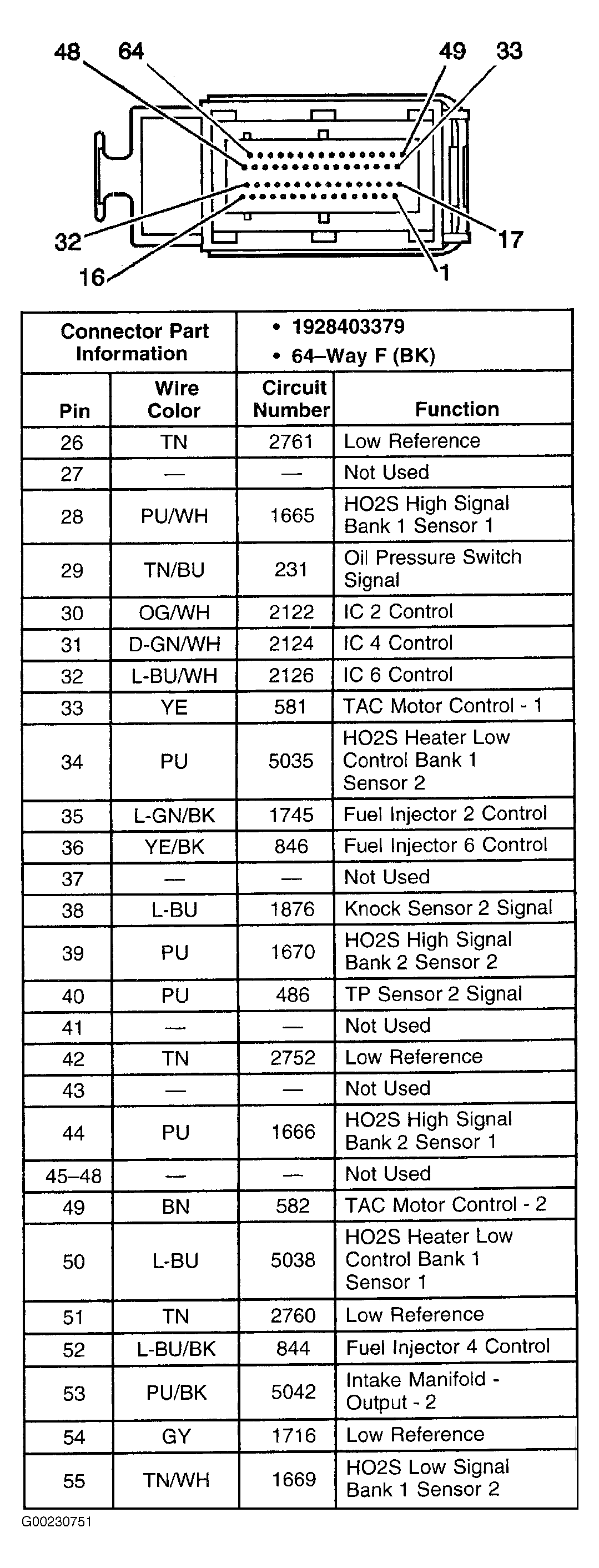

Fig 2: Identifying ECM C1 (2 Of 3)

G00230751

Courtesy of GENERAL MOTORS CORP.

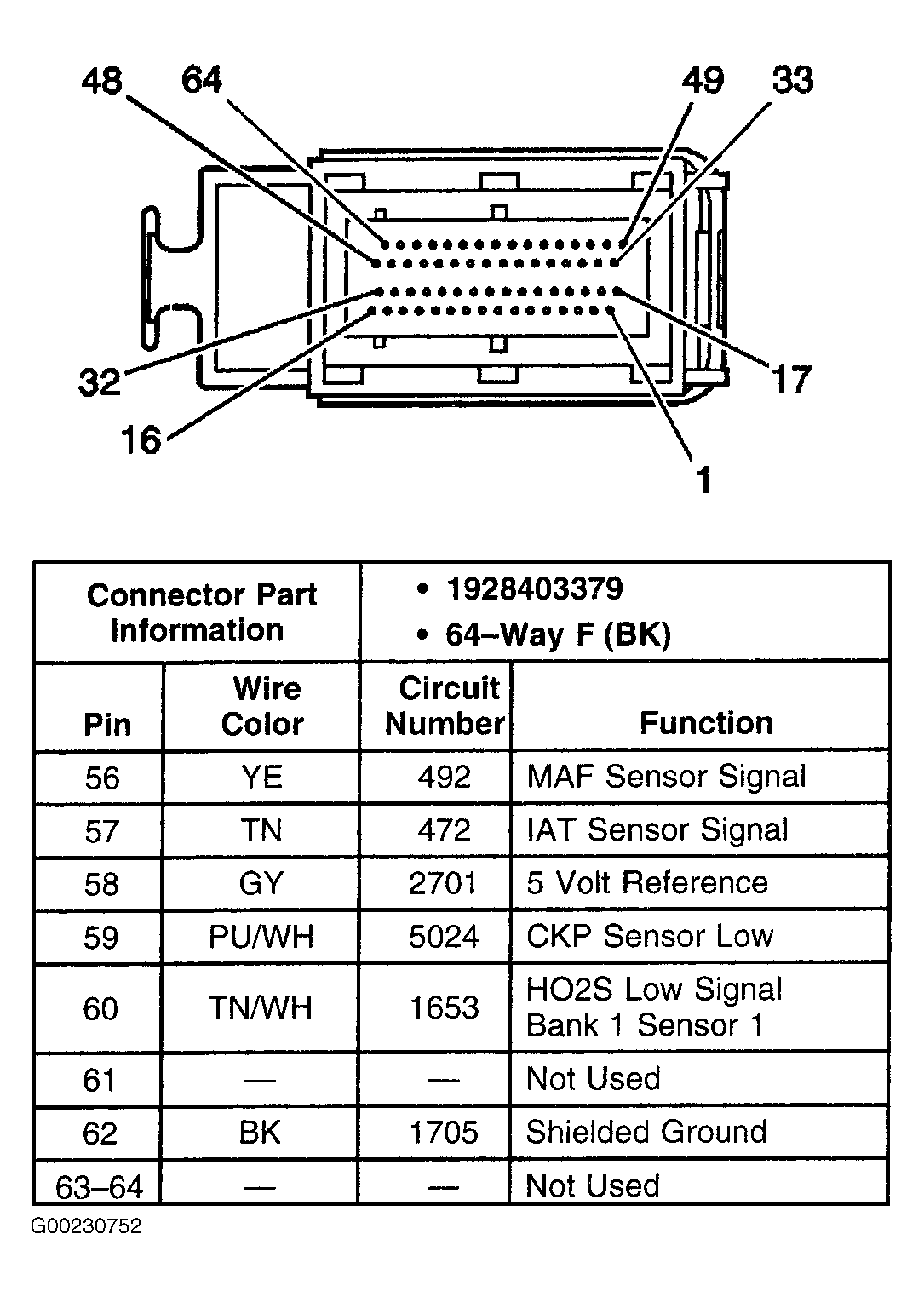

Fig 3: Identifying ECM C1 (3 Of 3)

G00230752

Courtesy of GENERAL MOTORS CORP.

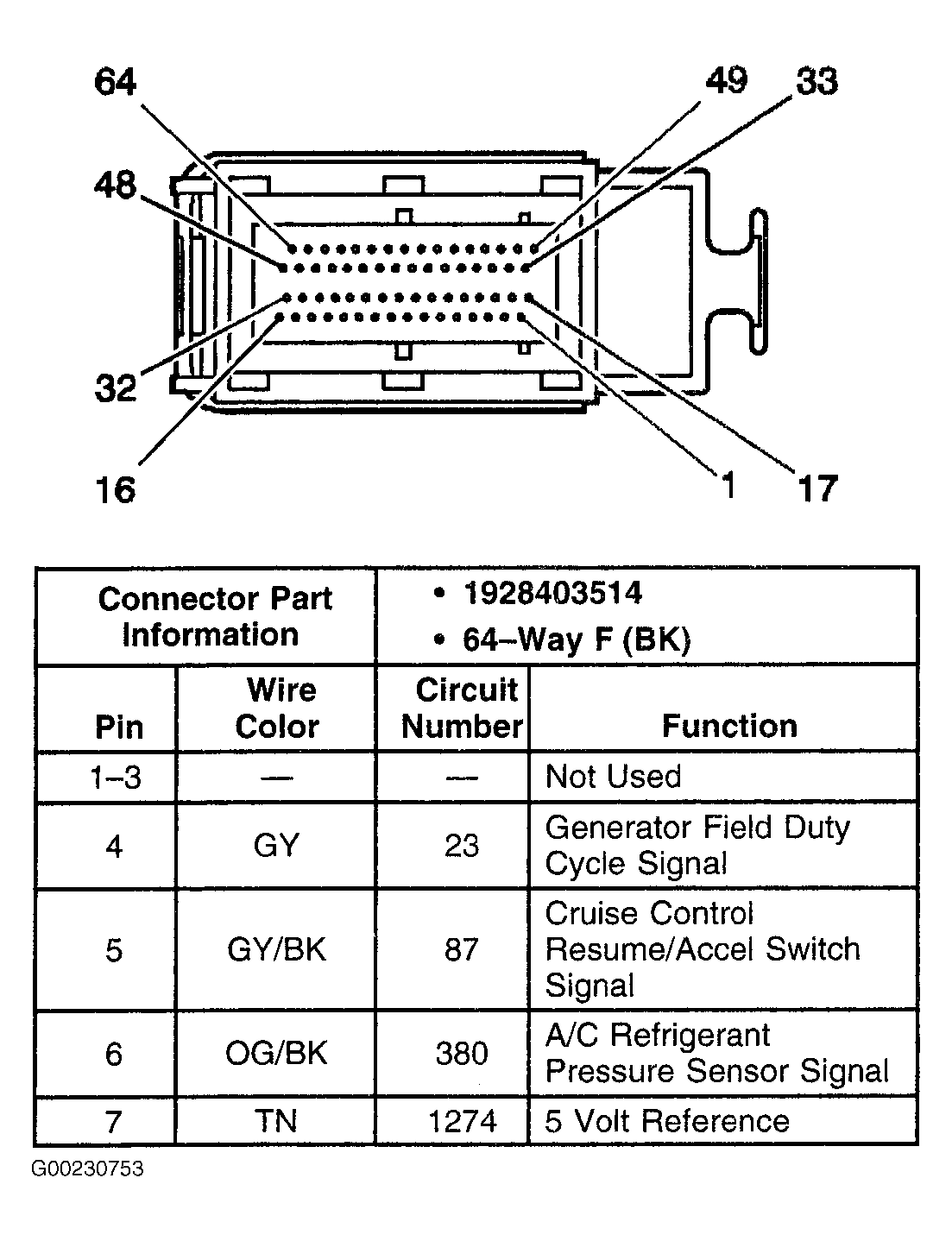

Fig 4: Identifying ECM C2 (1 Of 4)

G00230753

Courtesy of GENERAL MOTORS CORP.

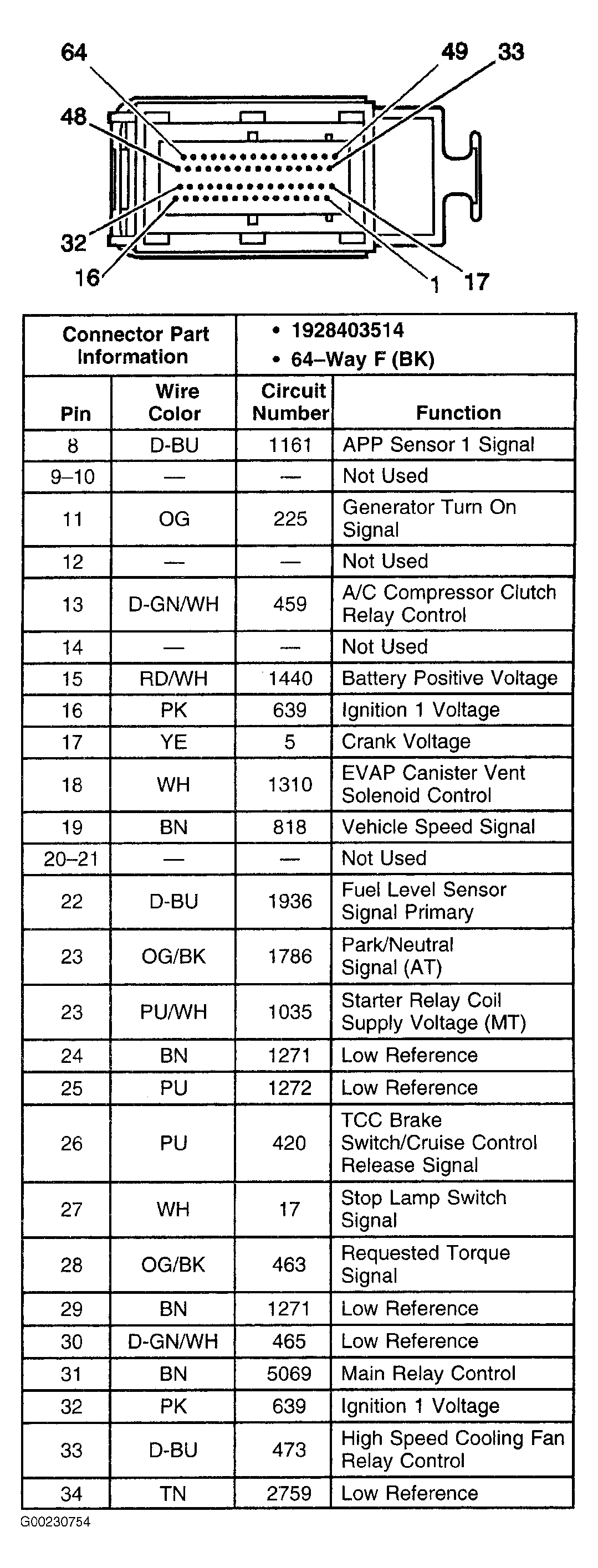

Fig 5: Identifying ECM C2 (2 Of 4)

G00230754

Courtesy of GENERAL MOTORS CORP.

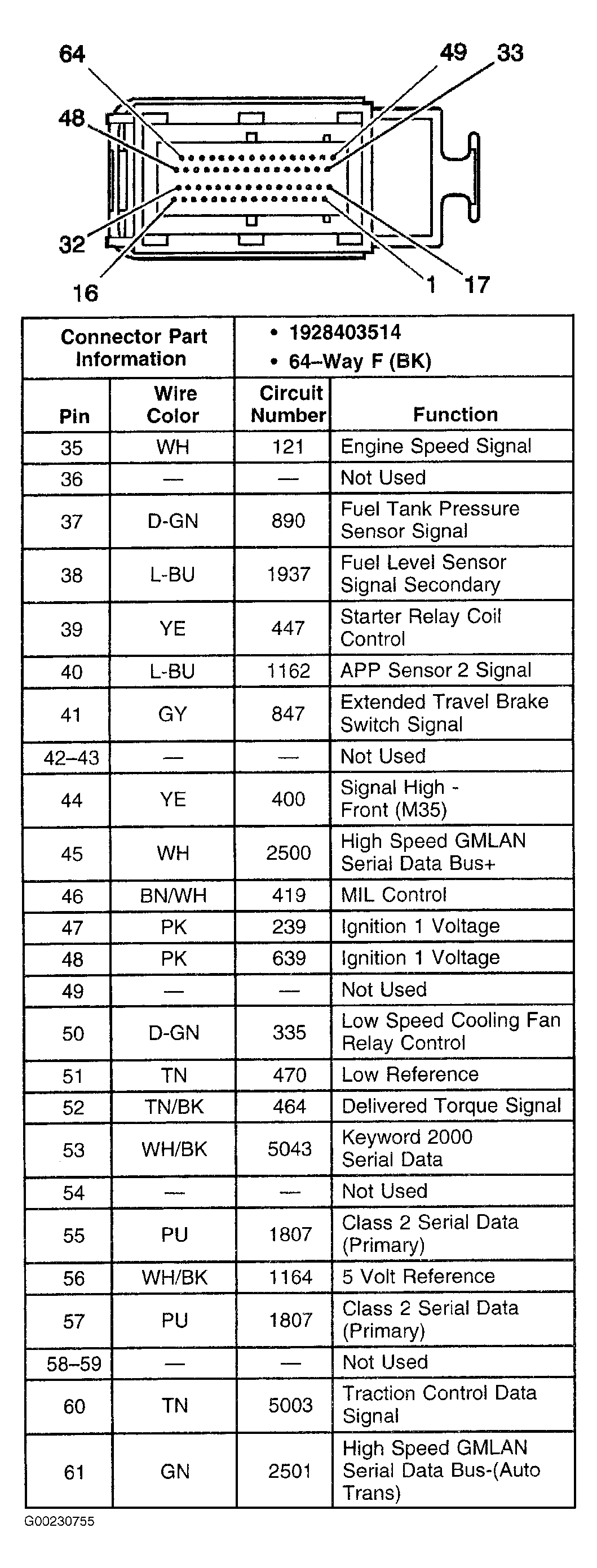

Fig 6: Identifying ECM C2 (3 Of 4)

G00230755

Courtesy of GENERAL MOTORS CORP.

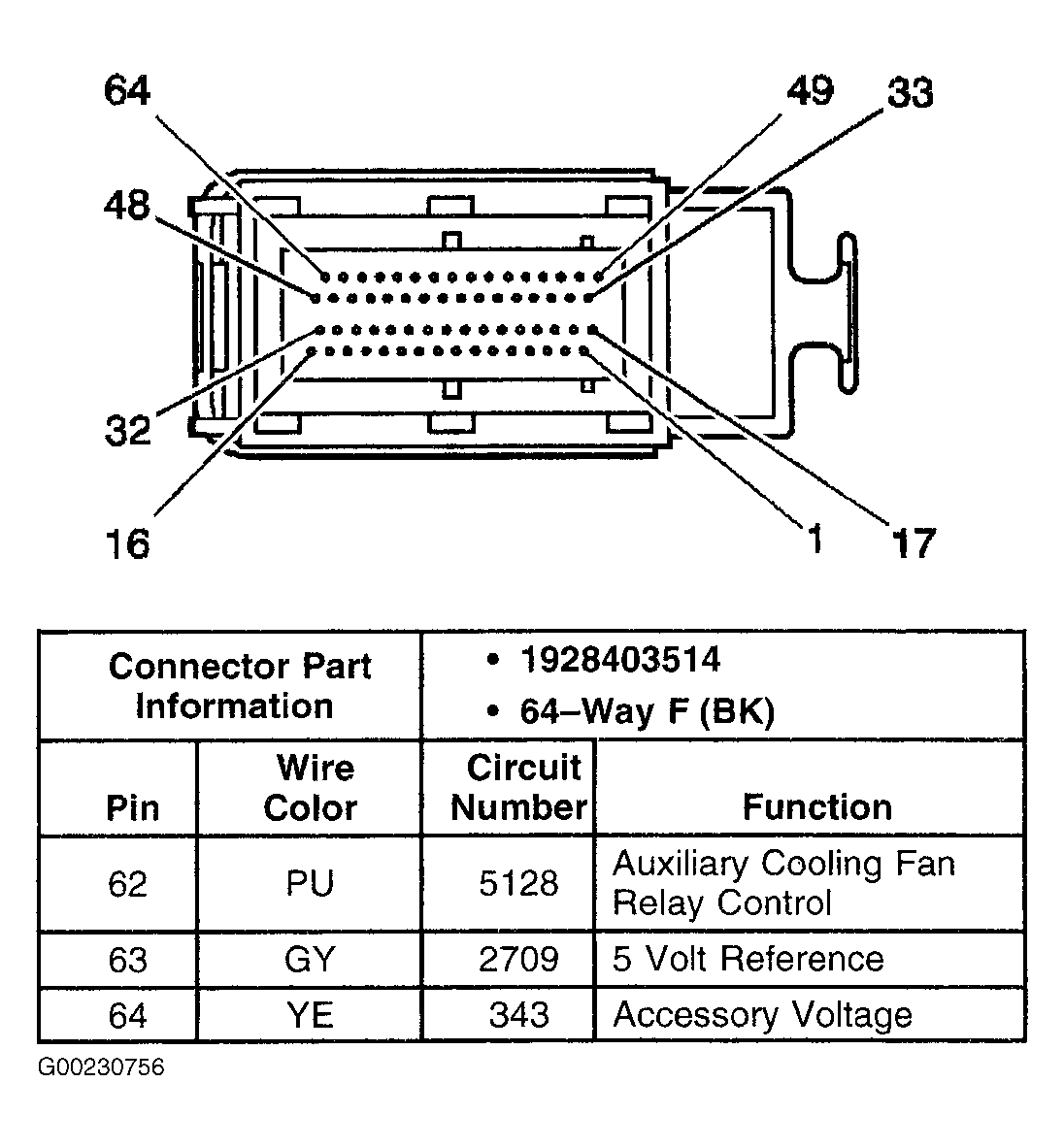

Fig 7: Identifying ECM C2 (4 Of 4)

G00230756

Courtesy of GENERAL MOTORS CORP.
