Home >> Cadillac >> 2002 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Keyless Entry Receiver >> Diagrams

Keyless Entry Receiver: Diagrams

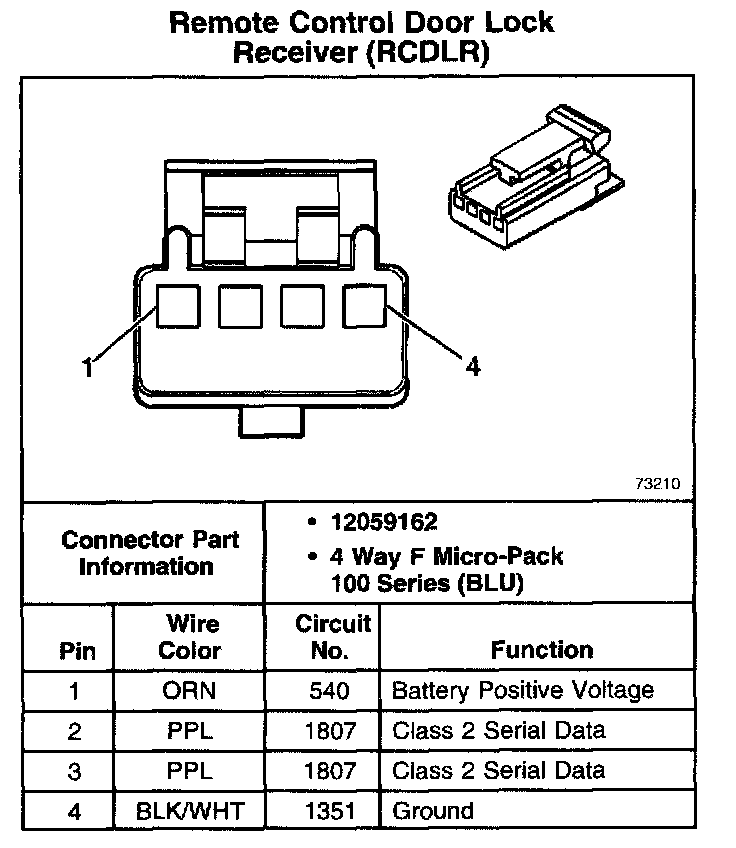

Remote Control Door Lock Receiver (RCDLR):
