Power Mirror Control Module: Diagrams

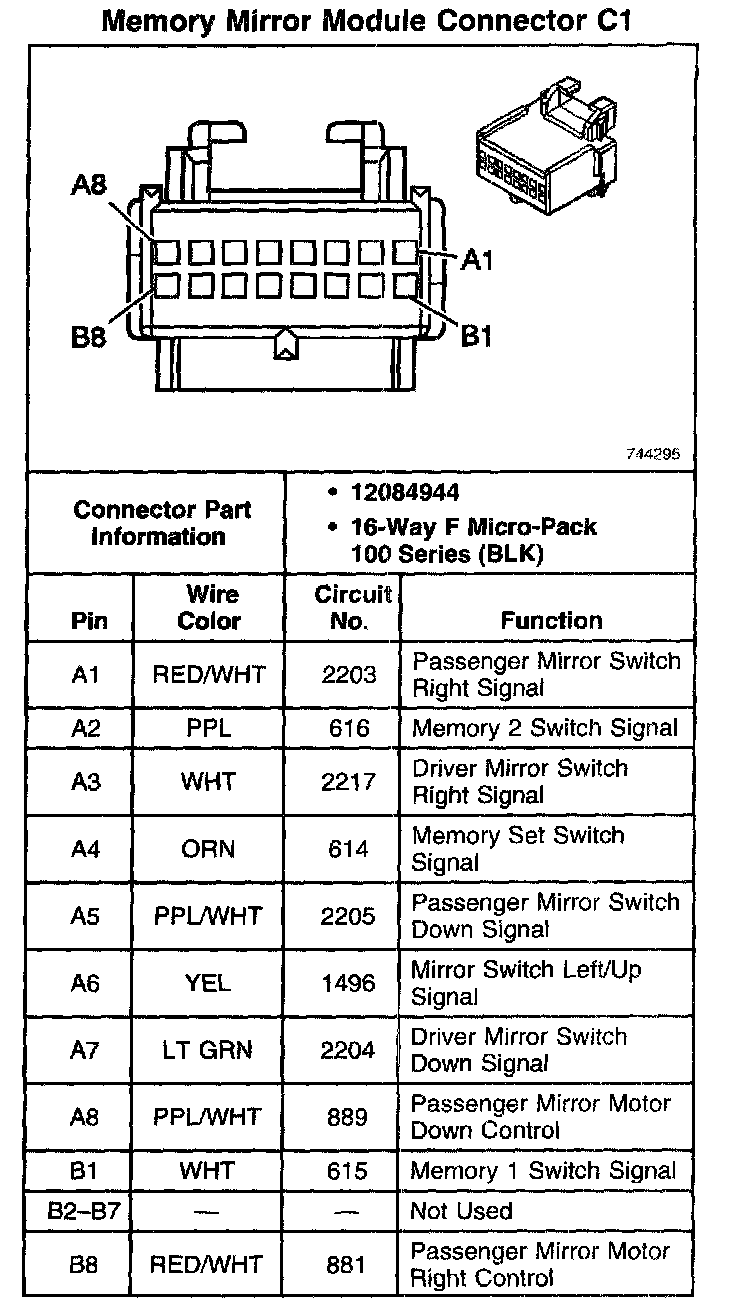

Memory Mirror Module Connector C1:

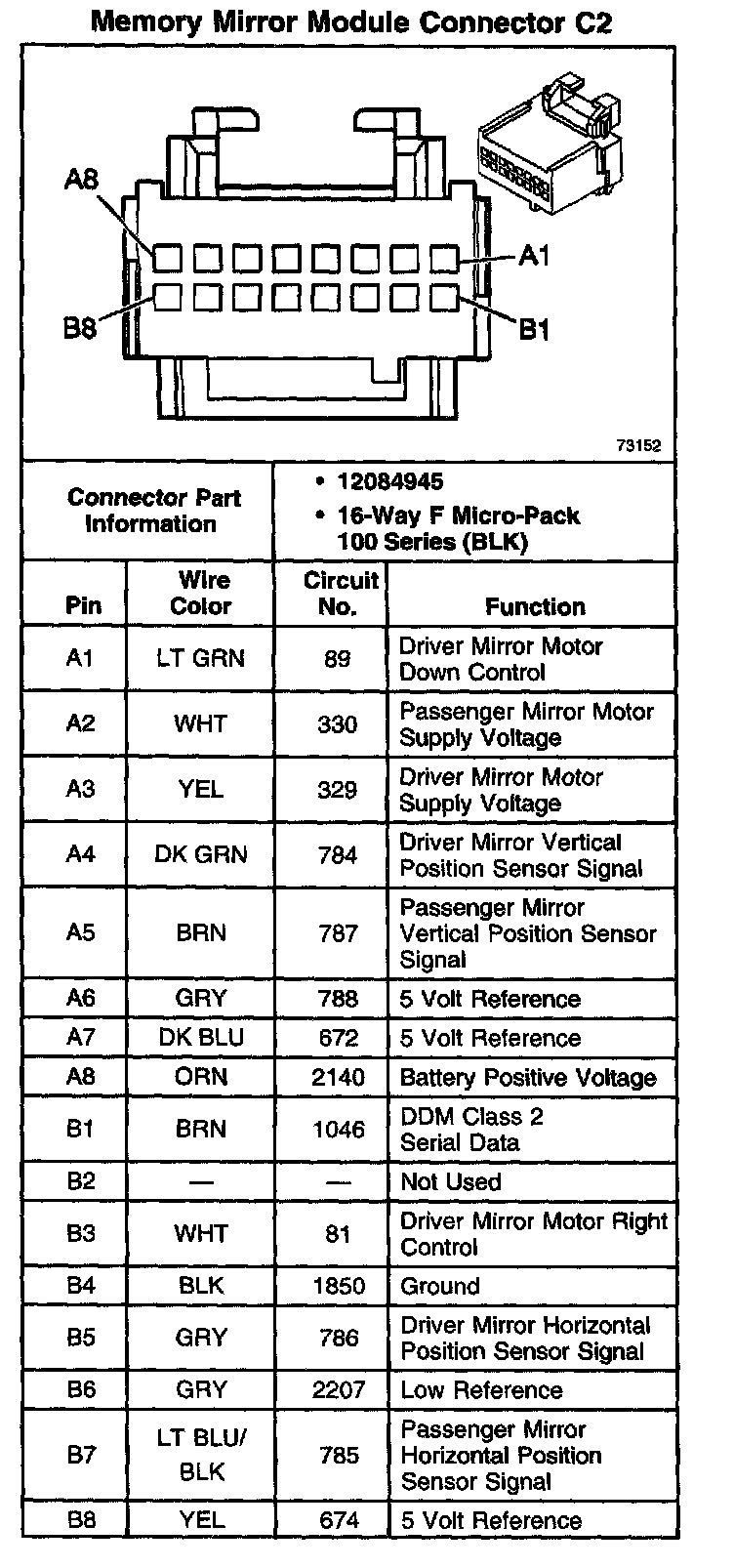

Memory Mirror Module Connector C2:
