Home >> Cadillac >> 2002 >> Escalade V8-5.3L VIN T >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Controls >> Module Power, Ground, Serial Data, and MIL

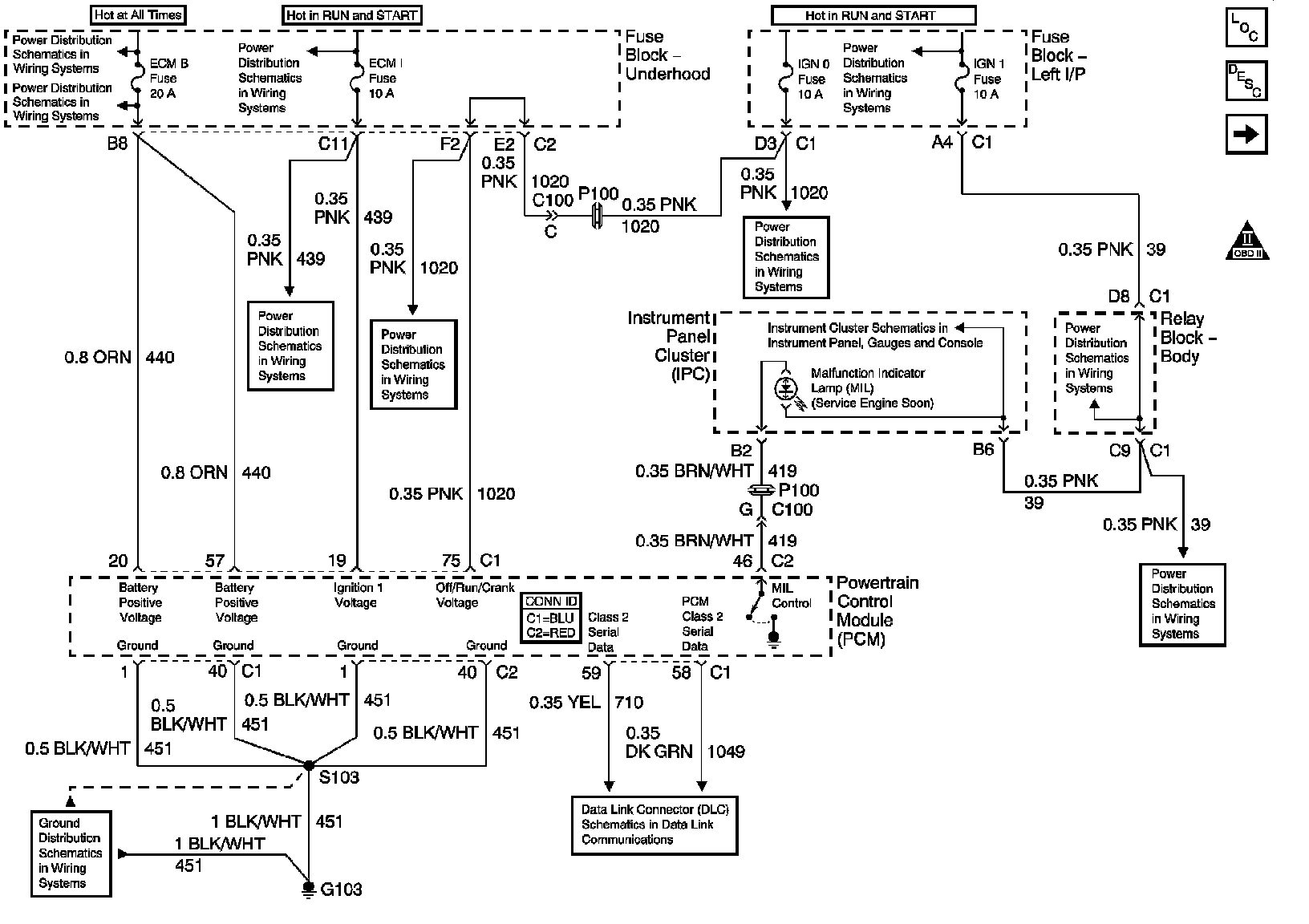

Module Power, Ground, Serial Data, and MIL
