Exterior Lighting Systems References




Exterior Lighting Systems References

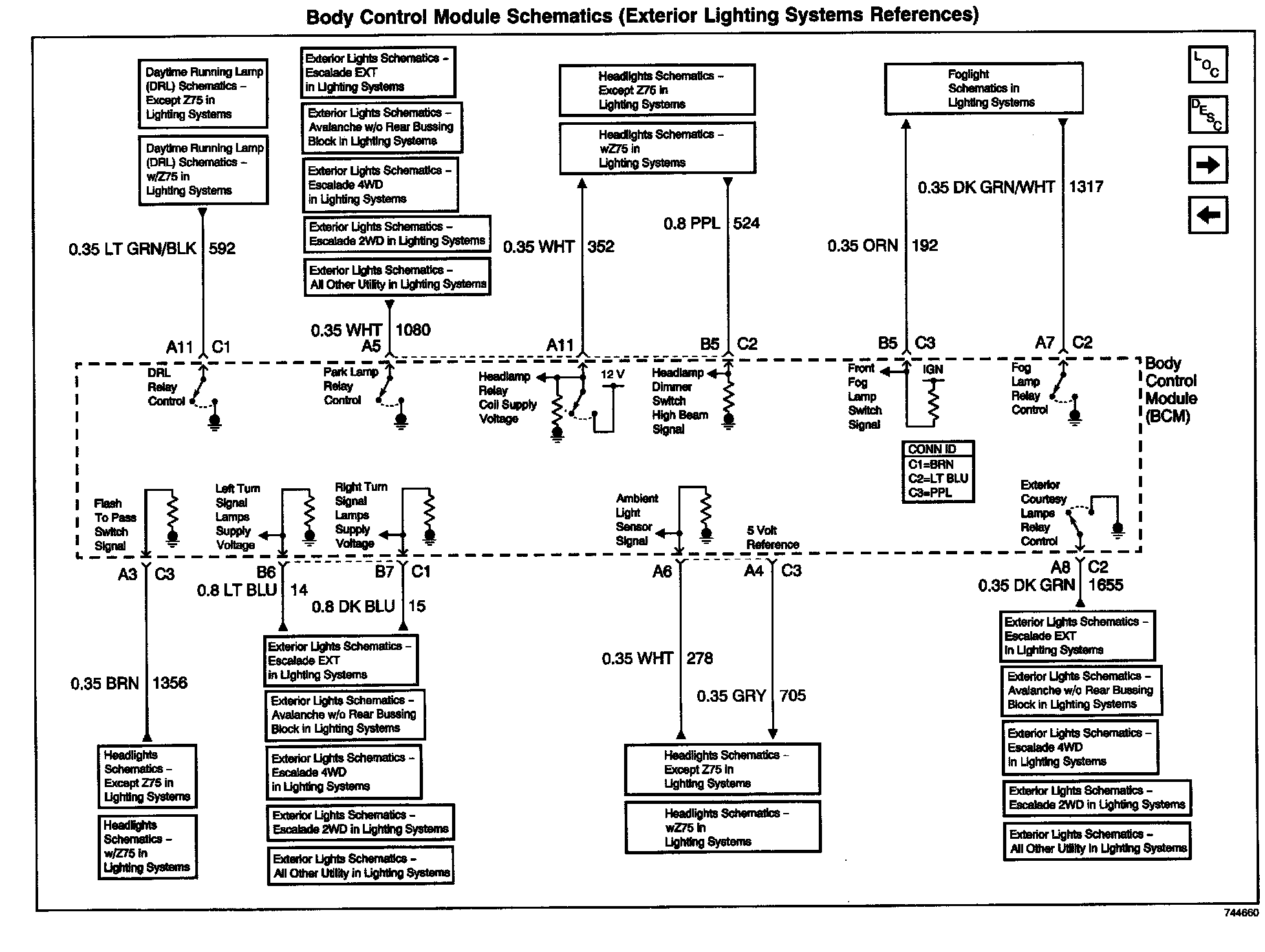

Body Control Module Schematics: Exterior Lighting Systems References:
