Delphi

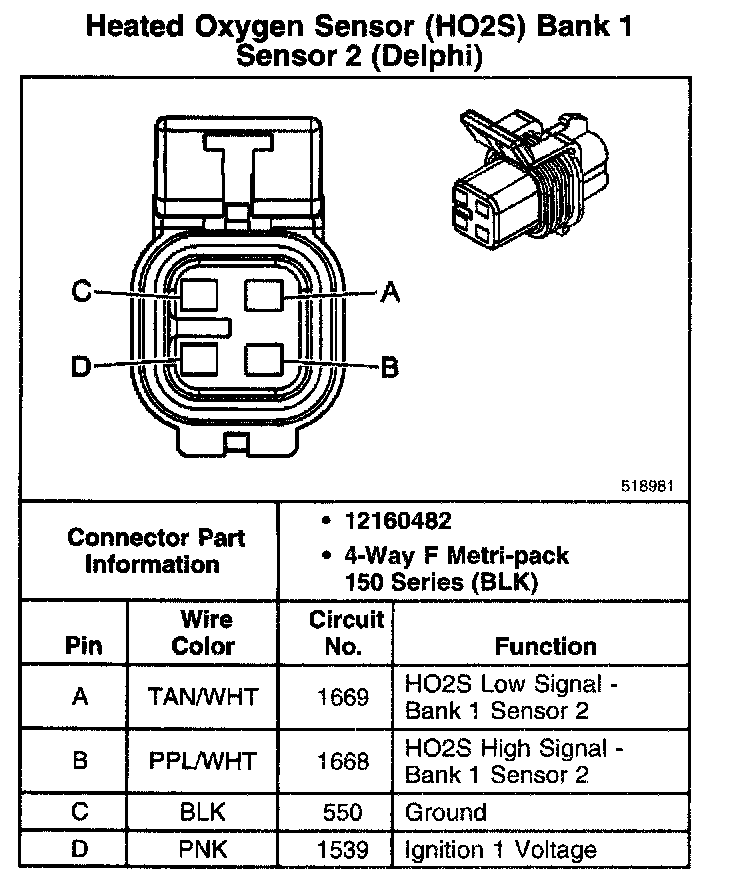

Heated Oxygen Sensor (H02S) Bank 1 Sensor 2 (Delphi):

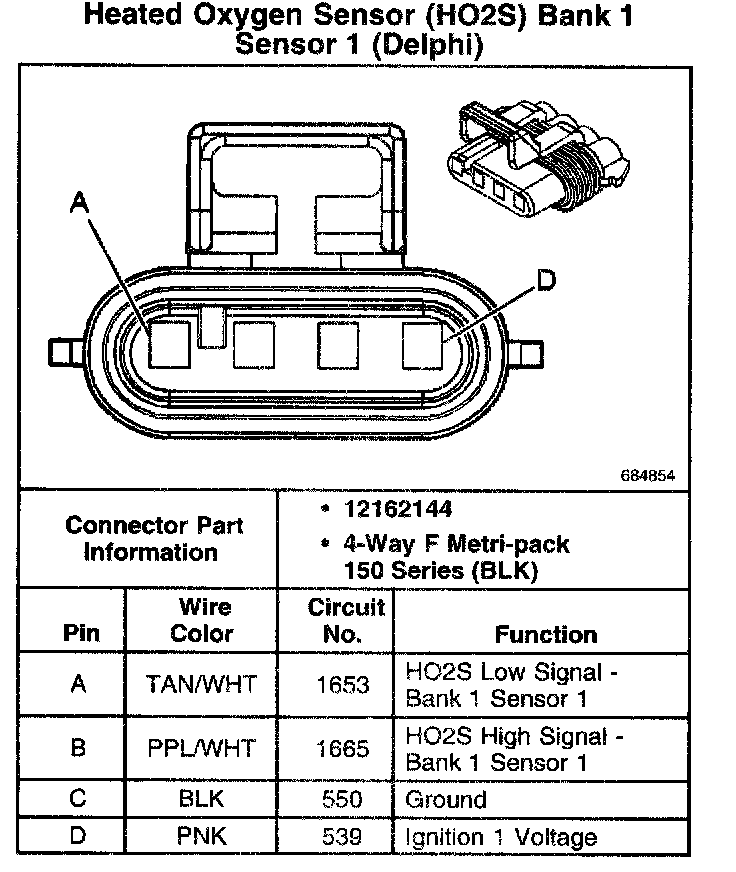

Heated Oxygen Sensor (H02S) Bank 1 Sensor 1 (Delphi):

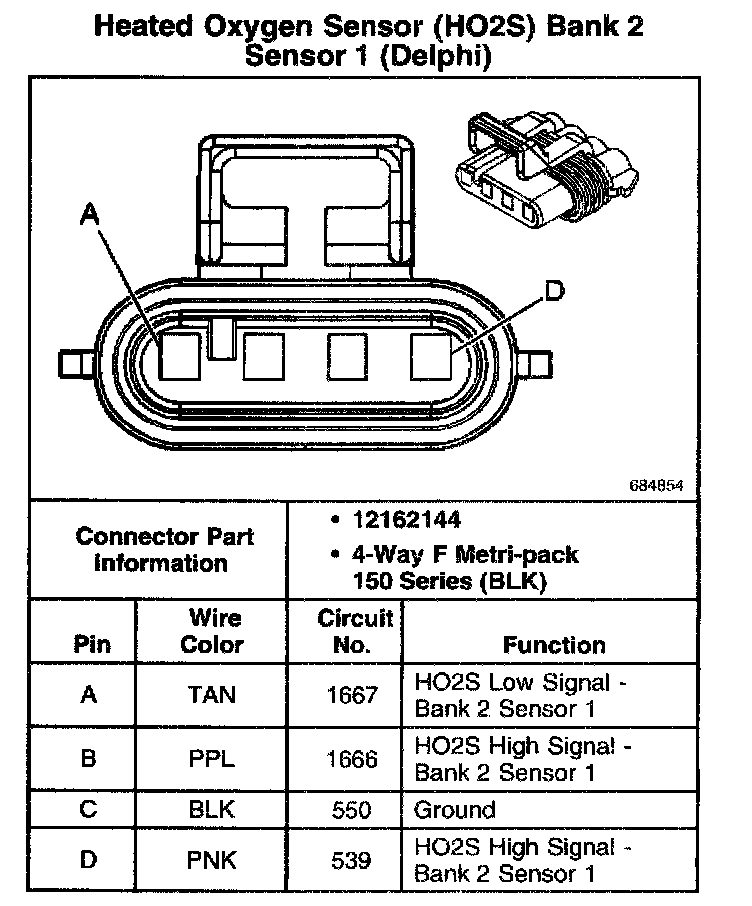

Heated Oxygen Sensor (H02S) Bank 2 Sensor 1 (Delphi):

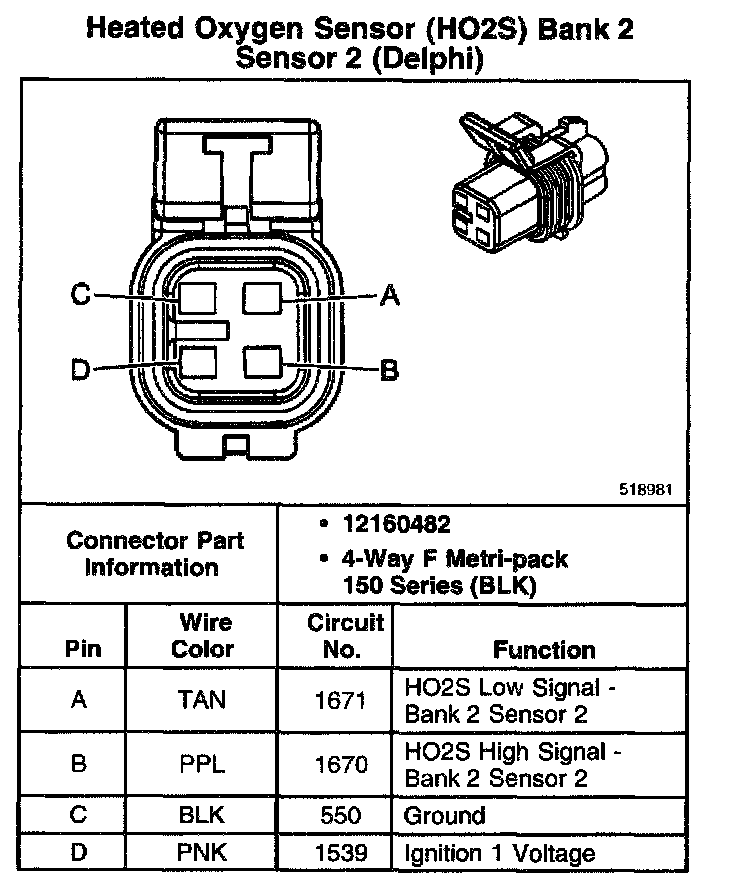

Heated Oxygen Sensor (H02S) Bank 2 Sensor 2 (Delphi):
