Home >> Cadillac >> 2002 >> Escalade V8-5.3L VIN T >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Diagrams >> HVAC Systems - Manual >> HVAC Control Module

HVAC Control Module

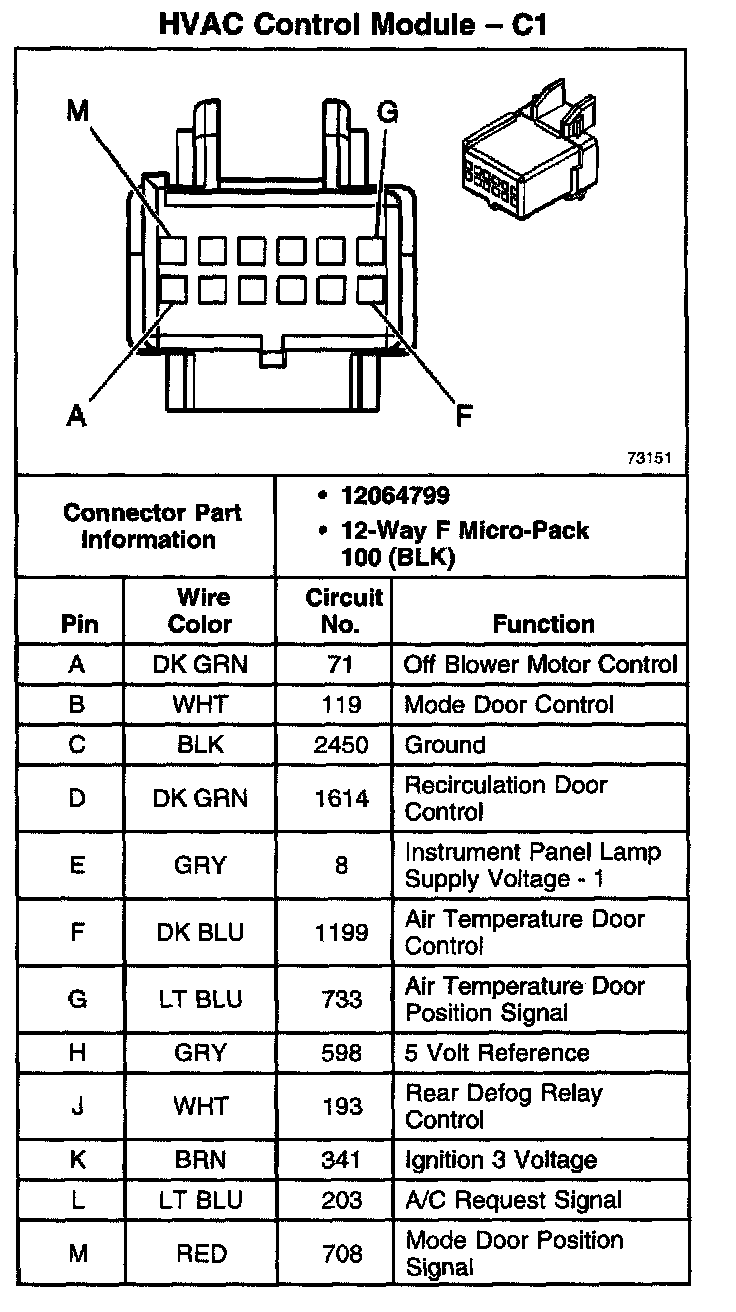

HVAC Control Module - C1:
