Identifying MAF/IAT Sensor Connector End View

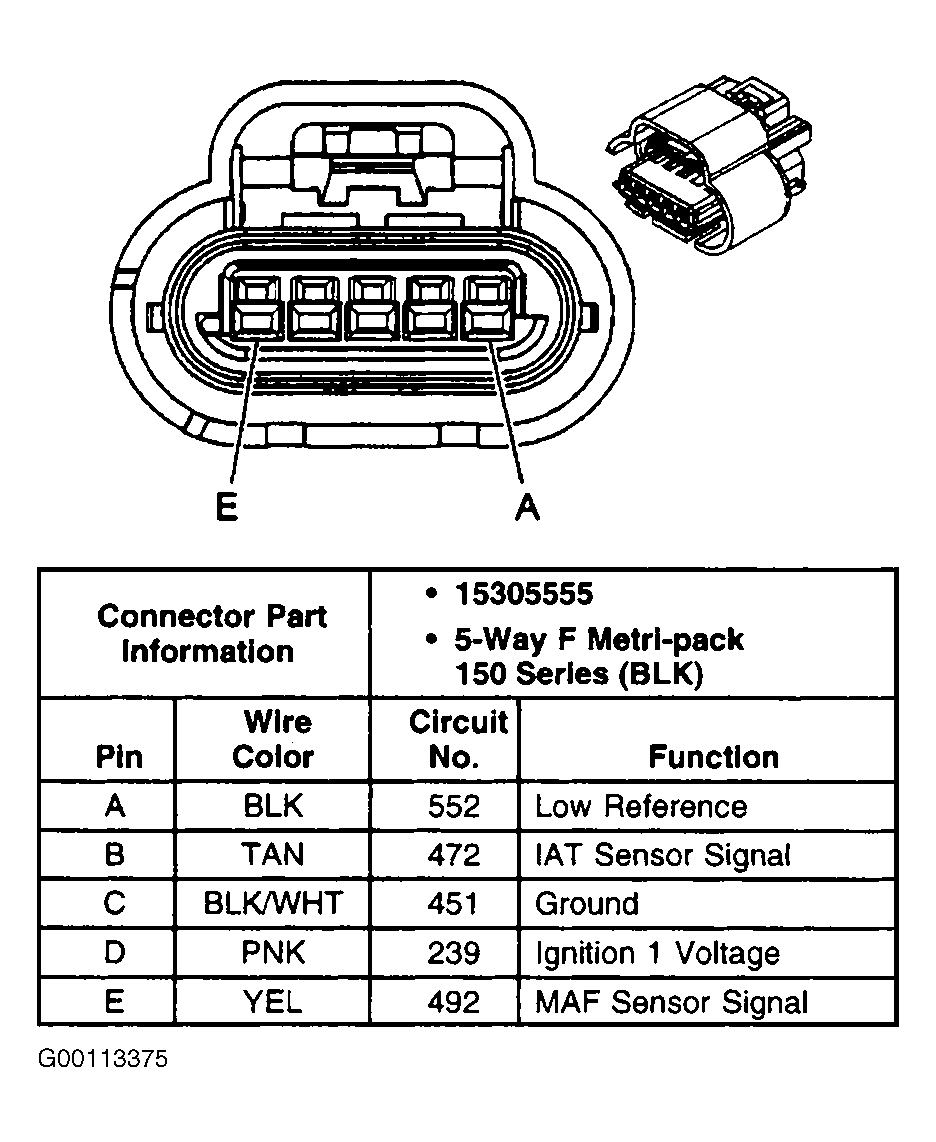

Fig 1: Identifying MAF/IAT Sensor Connector End View

G00113375

Courtesy of GENERAL MOTORS CORP.
