Engine Oil Level Switch Connector End View

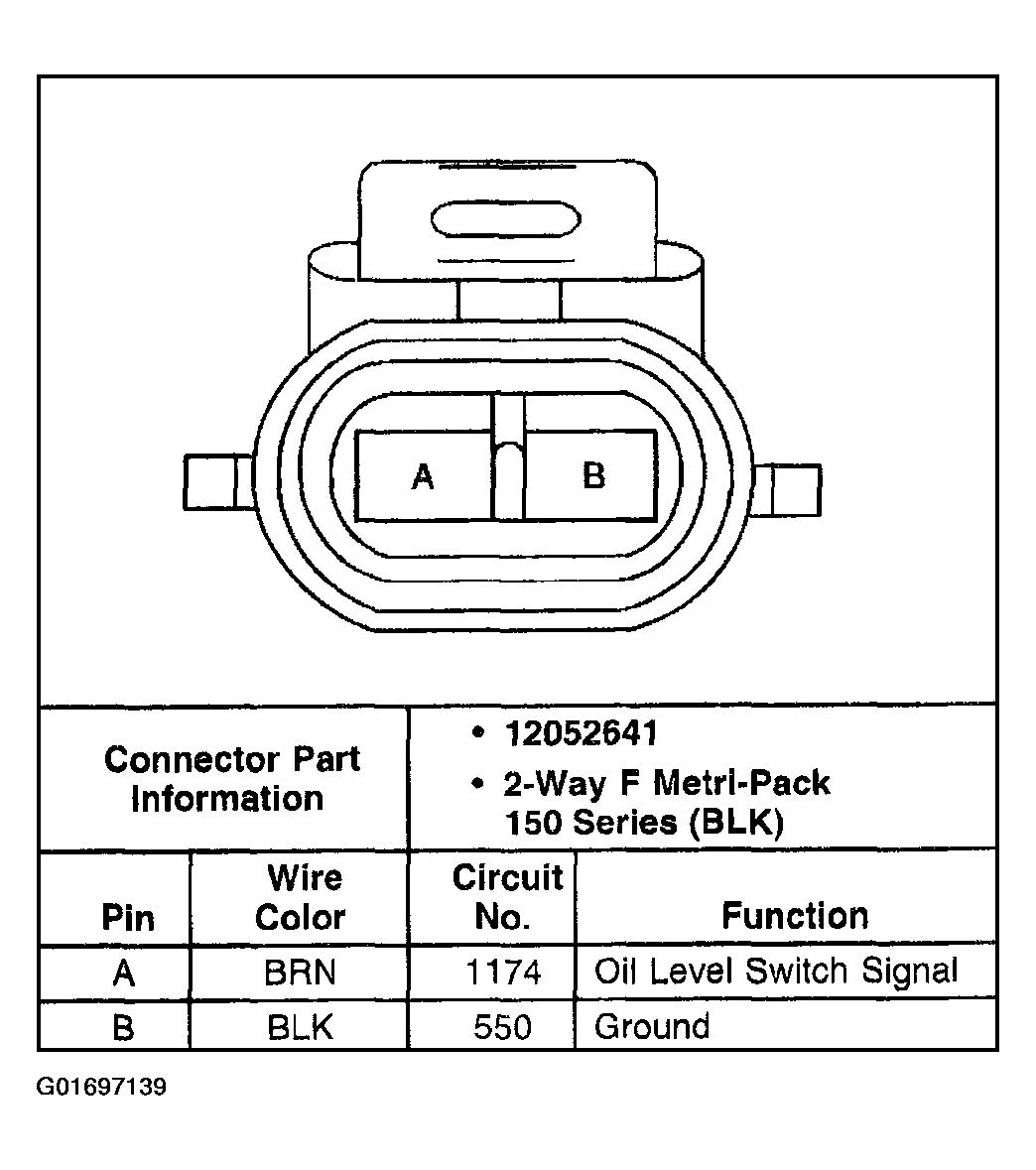

Fig 1: Engine Oil Level Switch Connector End View

G01697139

Courtesy of GENERAL MOTORS CORP.
