Removal Procedure

  1. Remove the instrument panel storage compartment. Refer to STORAGE COMPARTMENT REPLACEMENT - IP in Instrument Panel, Gauges and Console.
  2. Disengage the retainers fastening the instrument panel storage compartment switch plate bezel.
  3. Remove the bezel.
  4. Squeeze the traction control switch retainers.
  5. Pry out the traction control switch.
  6. Remove the traction control switch.

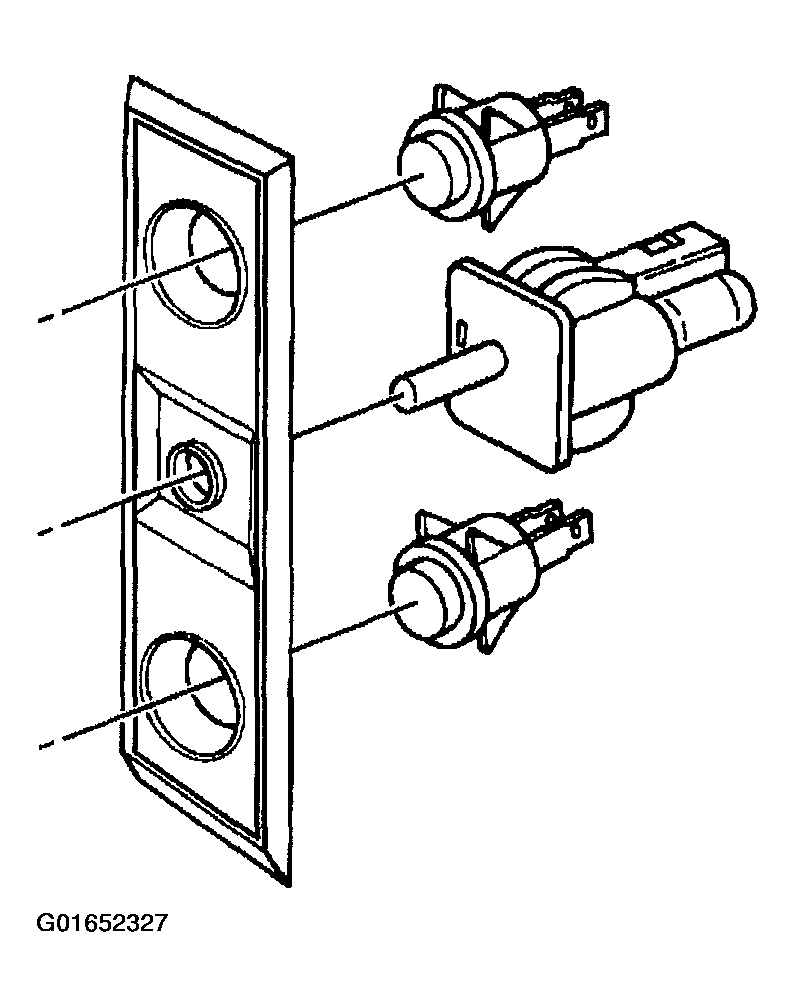

Fig 1: Traction Control Switch
G01652327Courtesy of GENERAL MOTORS CORP.
