Power Door Systems Component Views
Power Door Systems Component Views

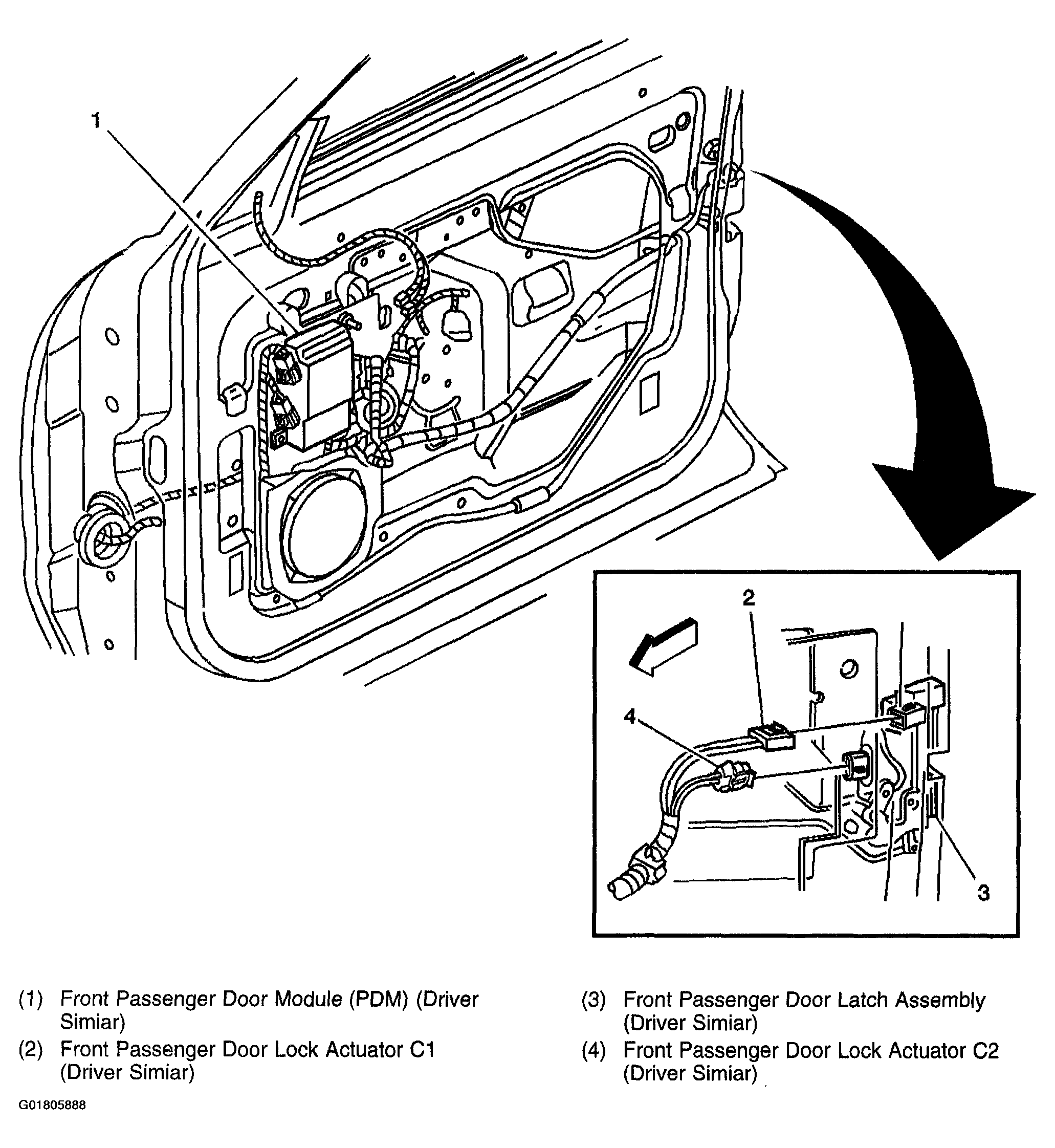

Fig 1: Front Door Lock Actuators
Courtesy of GENERAL MOTORS CORP.

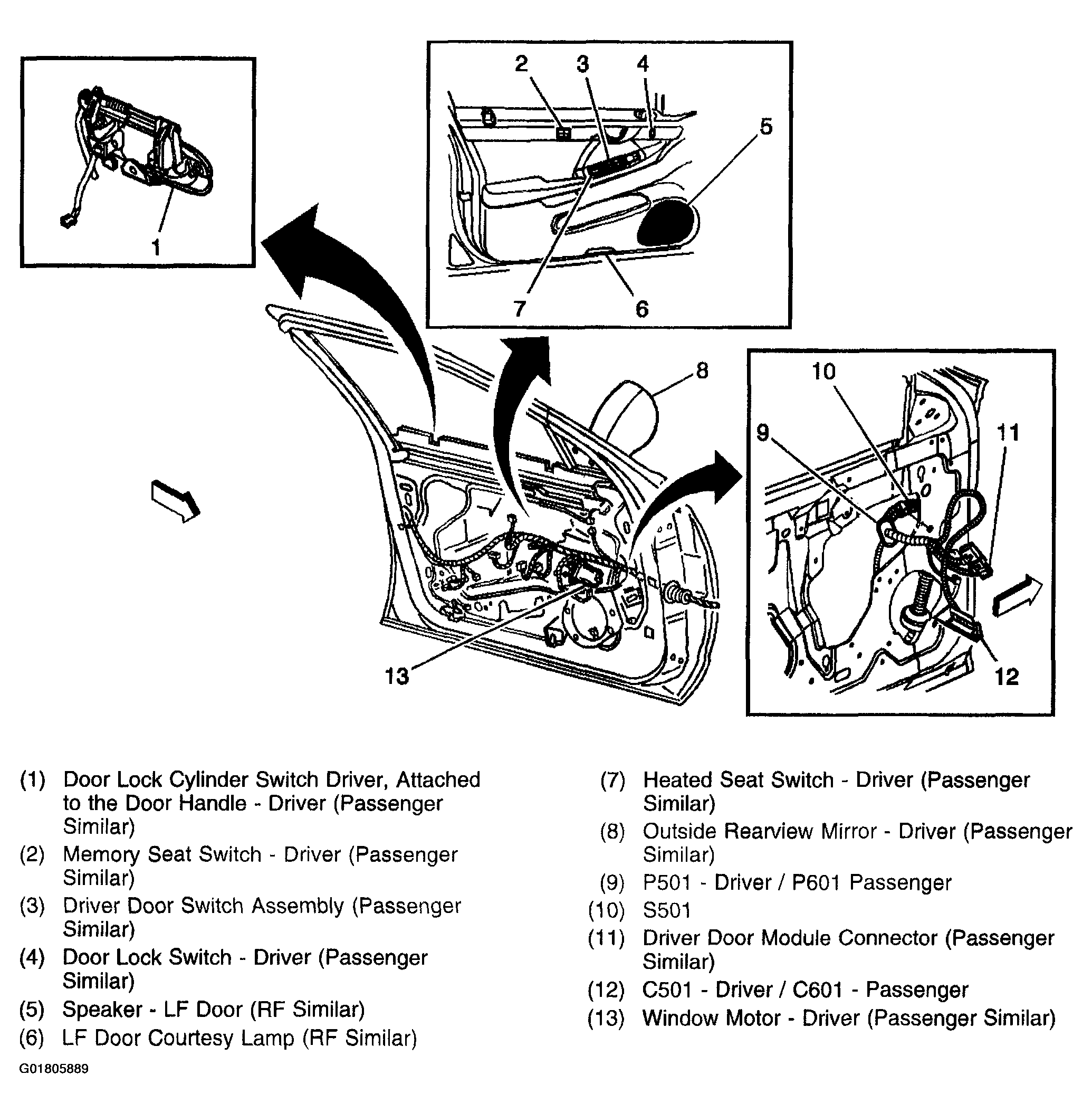

Fig 2: Front Door
Courtesy of GENERAL MOTORS CORP.

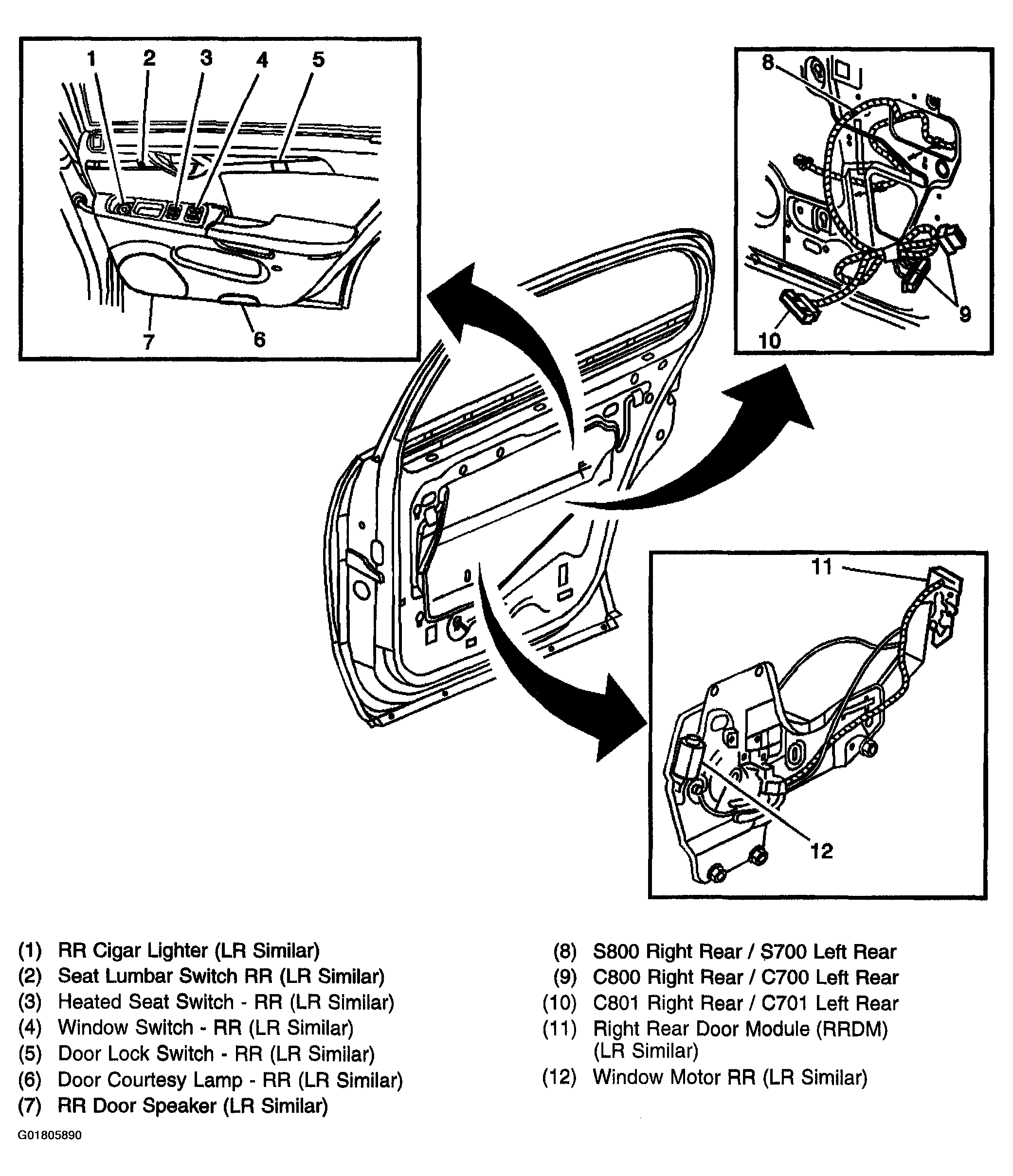

Fig 3: Rear Door
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
