Installation Procedure

  1. Install the battery (2) with the positive (+) side up.
  2. Align both halves (1, 3) of the transmitter.

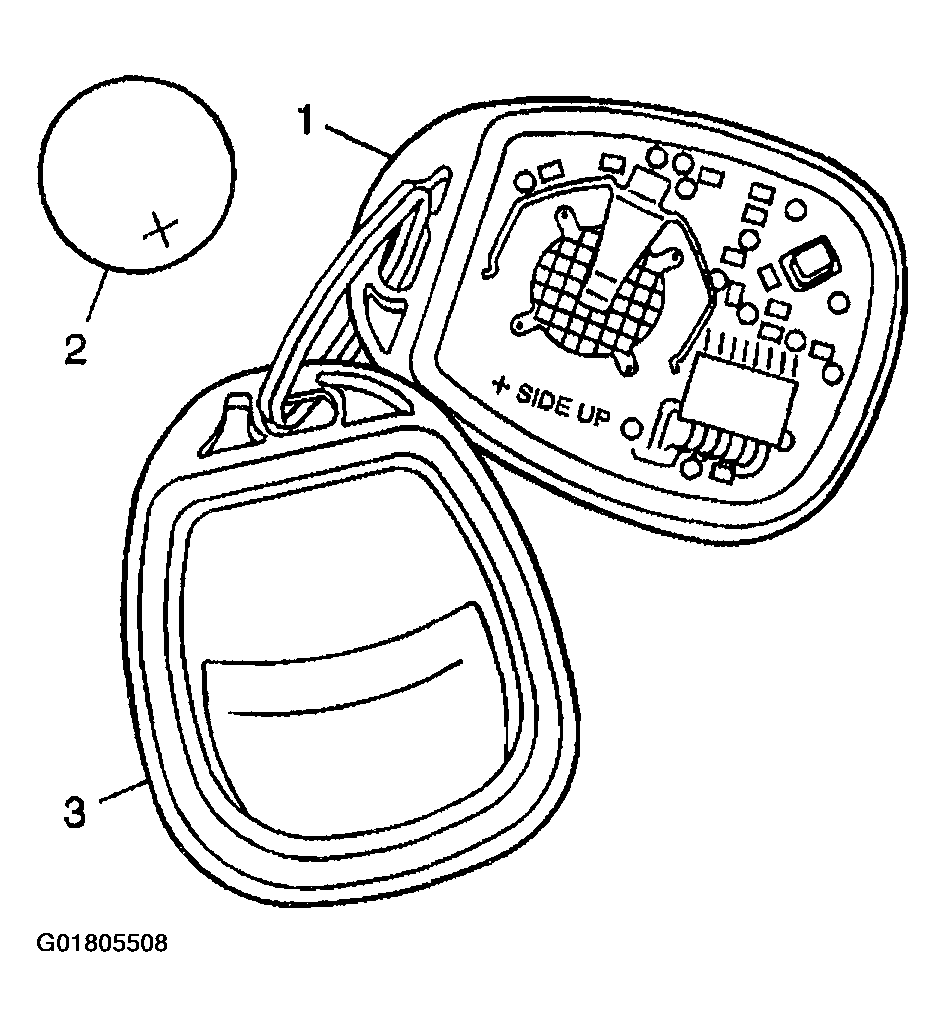

    Fig 1: Installing Battery Into Transmitter
    G01805508Courtesy of GENERAL MOTORS CORP.
  3. Ensure that the seal is positioned correctly.
  4. Close the transmitter case.
  5. Synchronize the transmitter. Refer to Transmitter Programming .

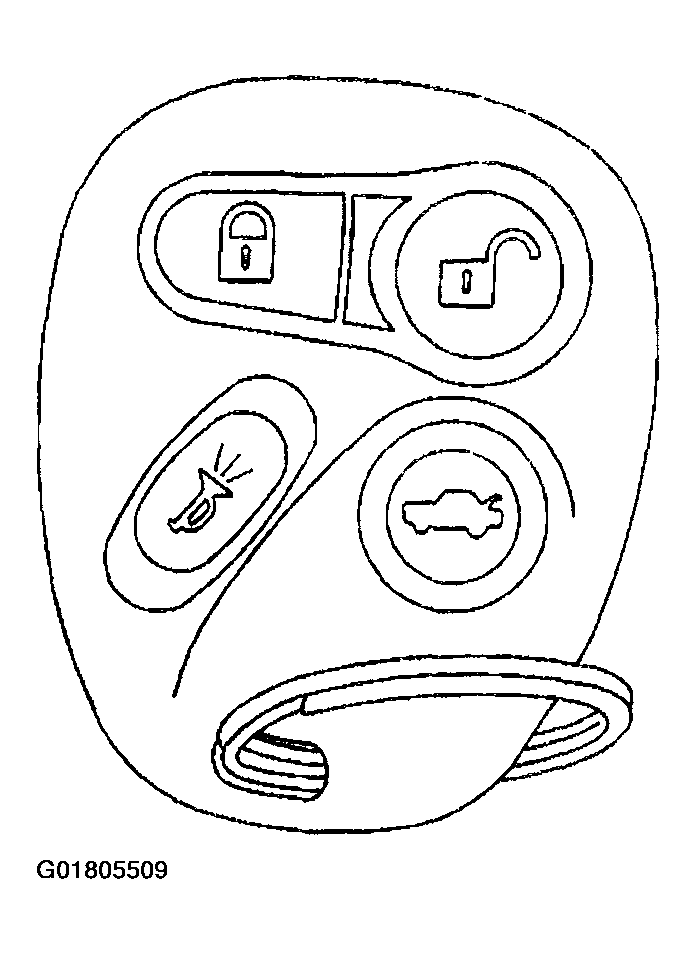

    Fig 2: Closing Transmitter Case
    G01805509Courtesy of GENERAL MOTORS CORP.
