Navigation System Connector End Views

WARNING: This page is about a different car, the 2002 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

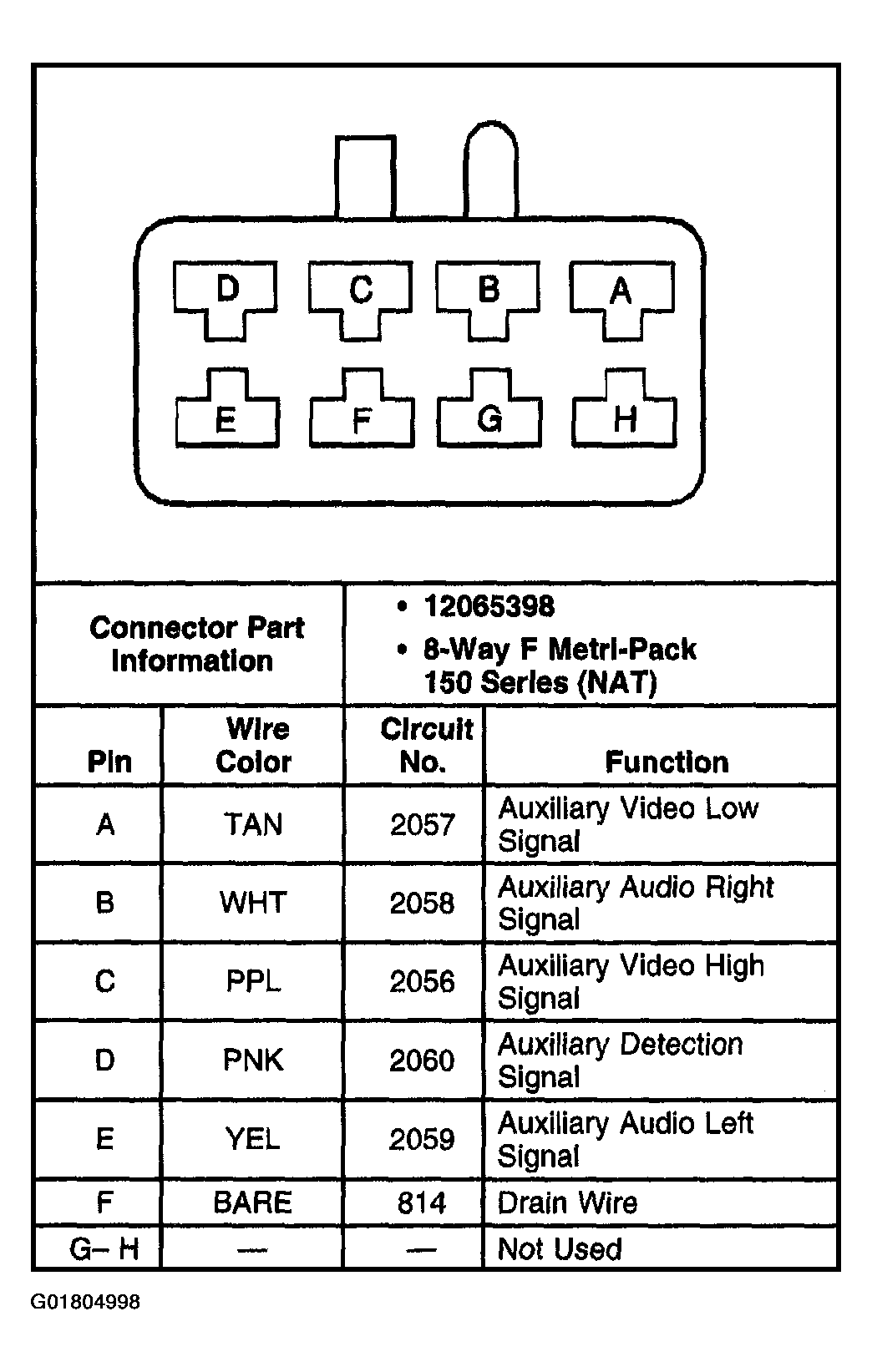

Fig 1: Auxiliary RCA Video Jacks

Courtesy of GENERAL MOTORS CORP.

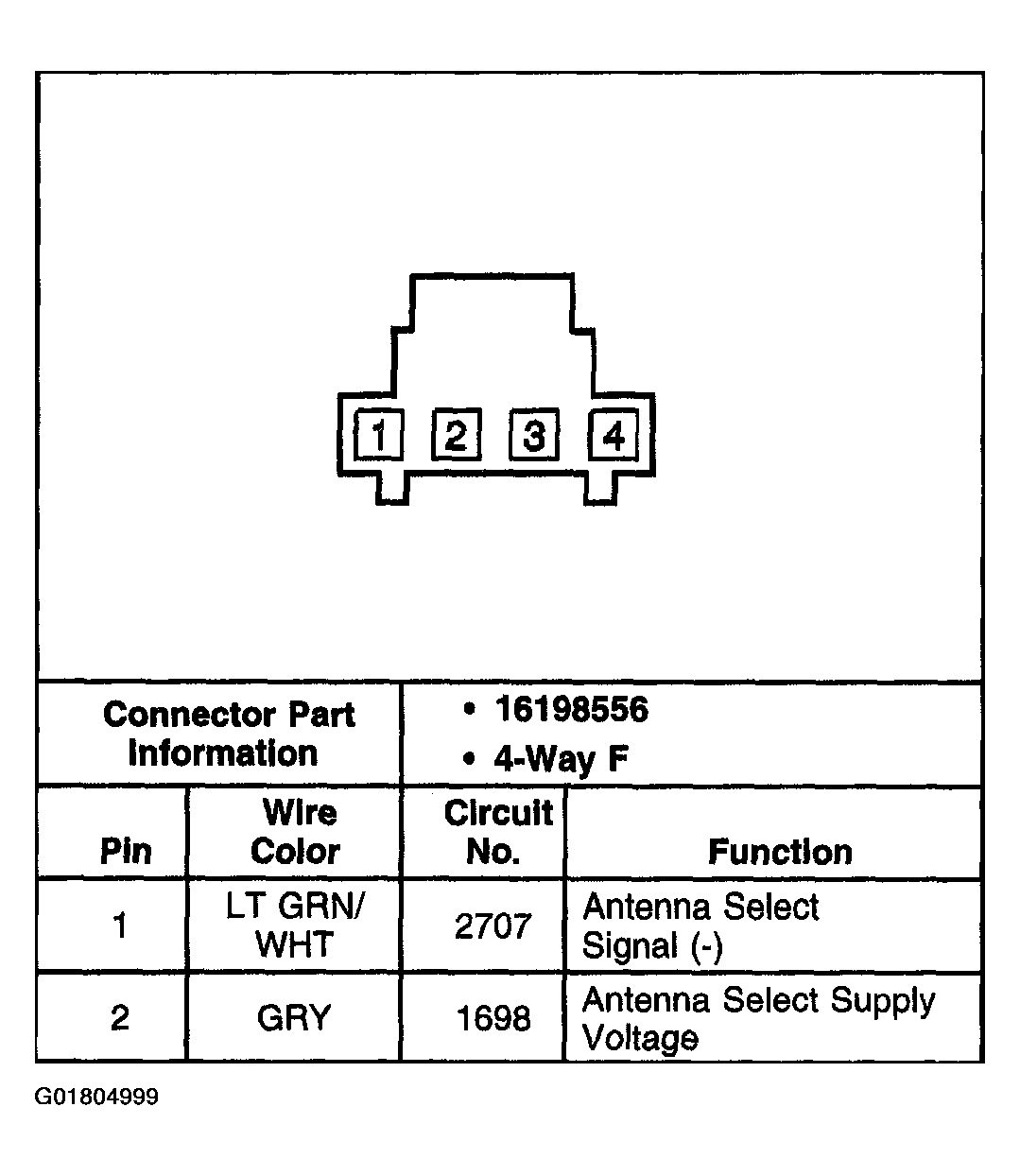

Fig 2: TV Antenna Module (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

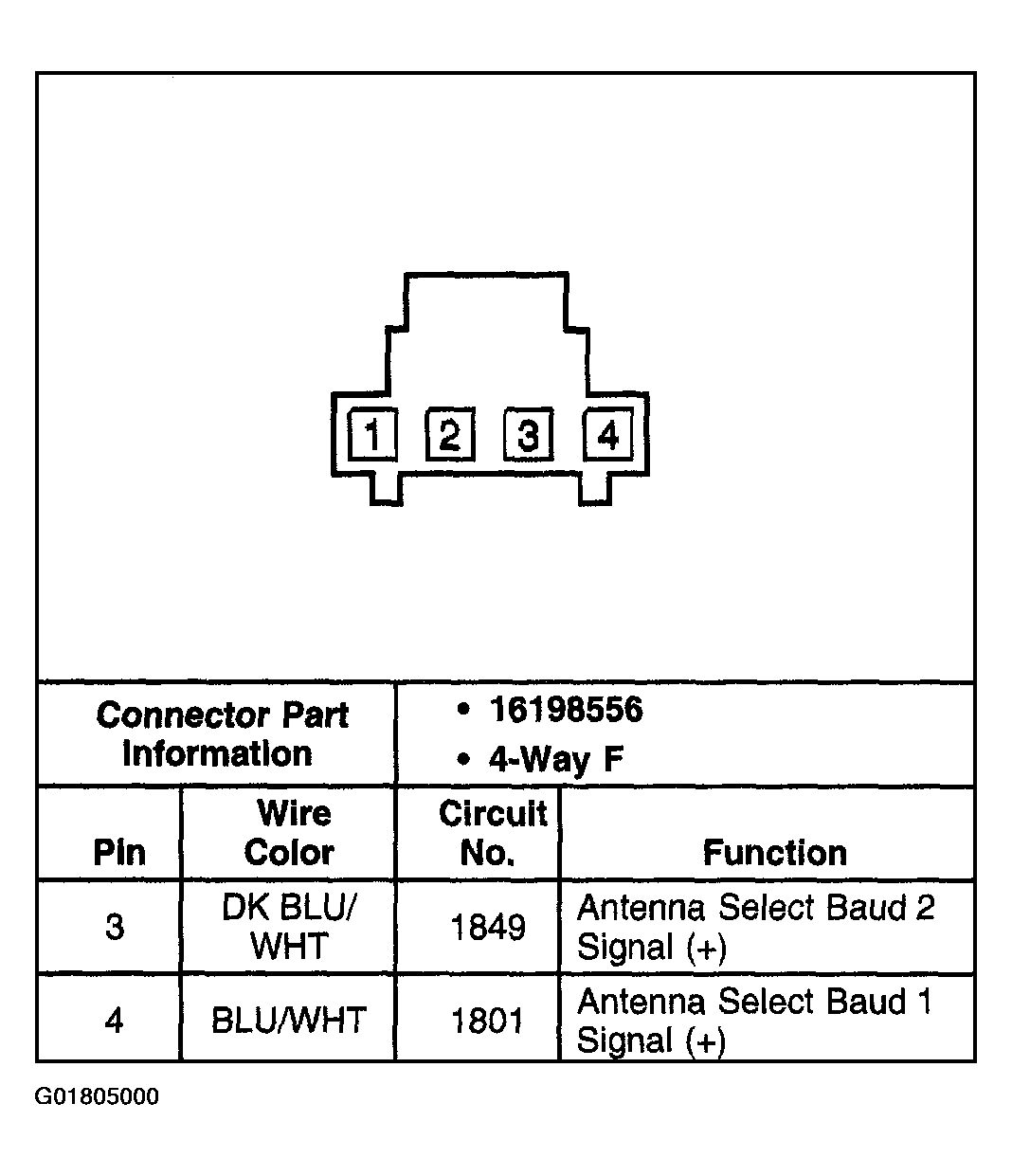

Fig 3: TV Antenna Module (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

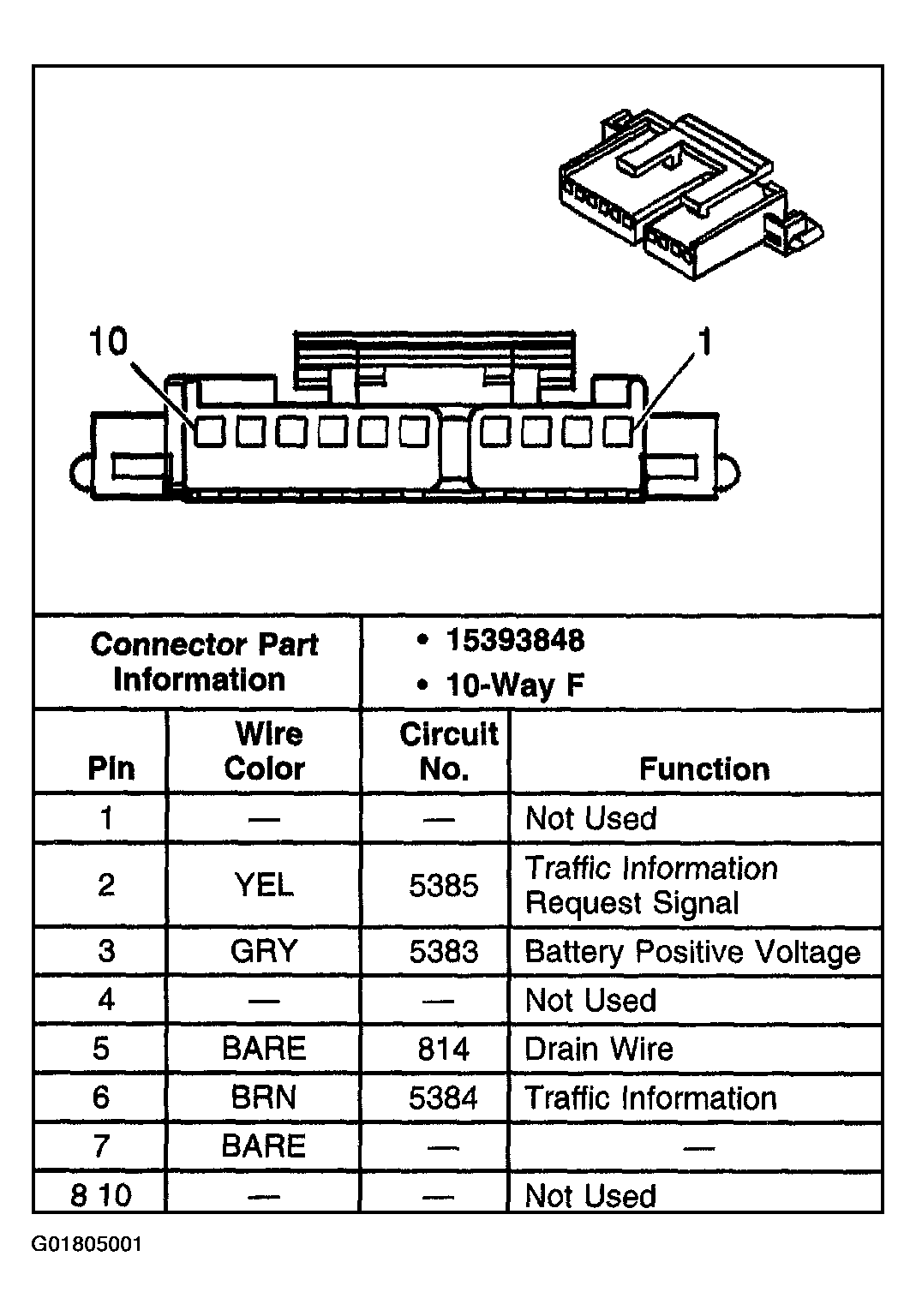

Fig 4: Traffic Information Receiver (VICS)

Courtesy of GENERAL MOTORS CORP.
