Body Control Module Schematics

WARNING: This page is about a different car, the 2002 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

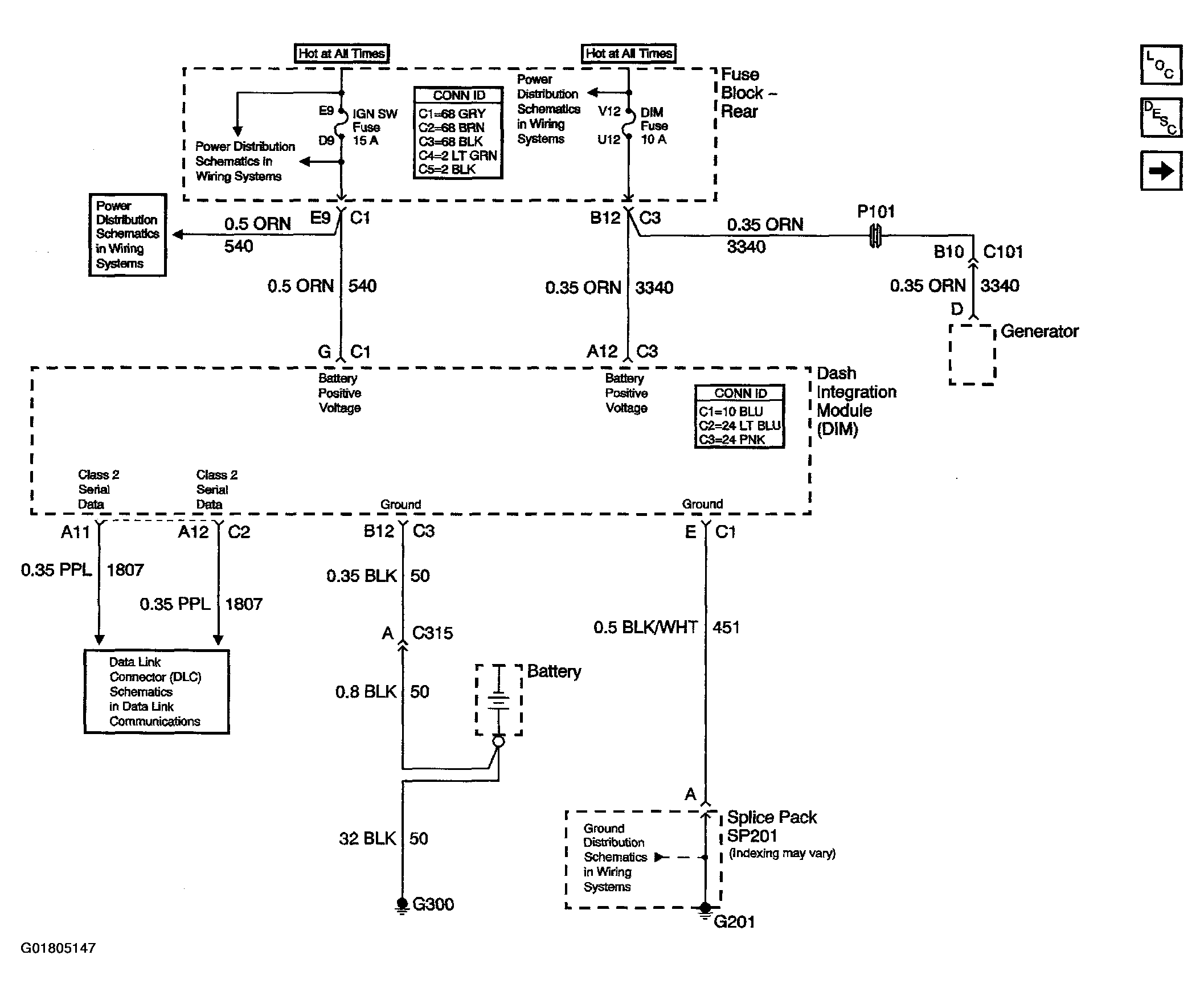

Fig 1: Body Control Module Schematics (Dash Integration Module (DIM) - Power, Ground & Serial Data)

Courtesy of GENERAL MOTORS CORP.

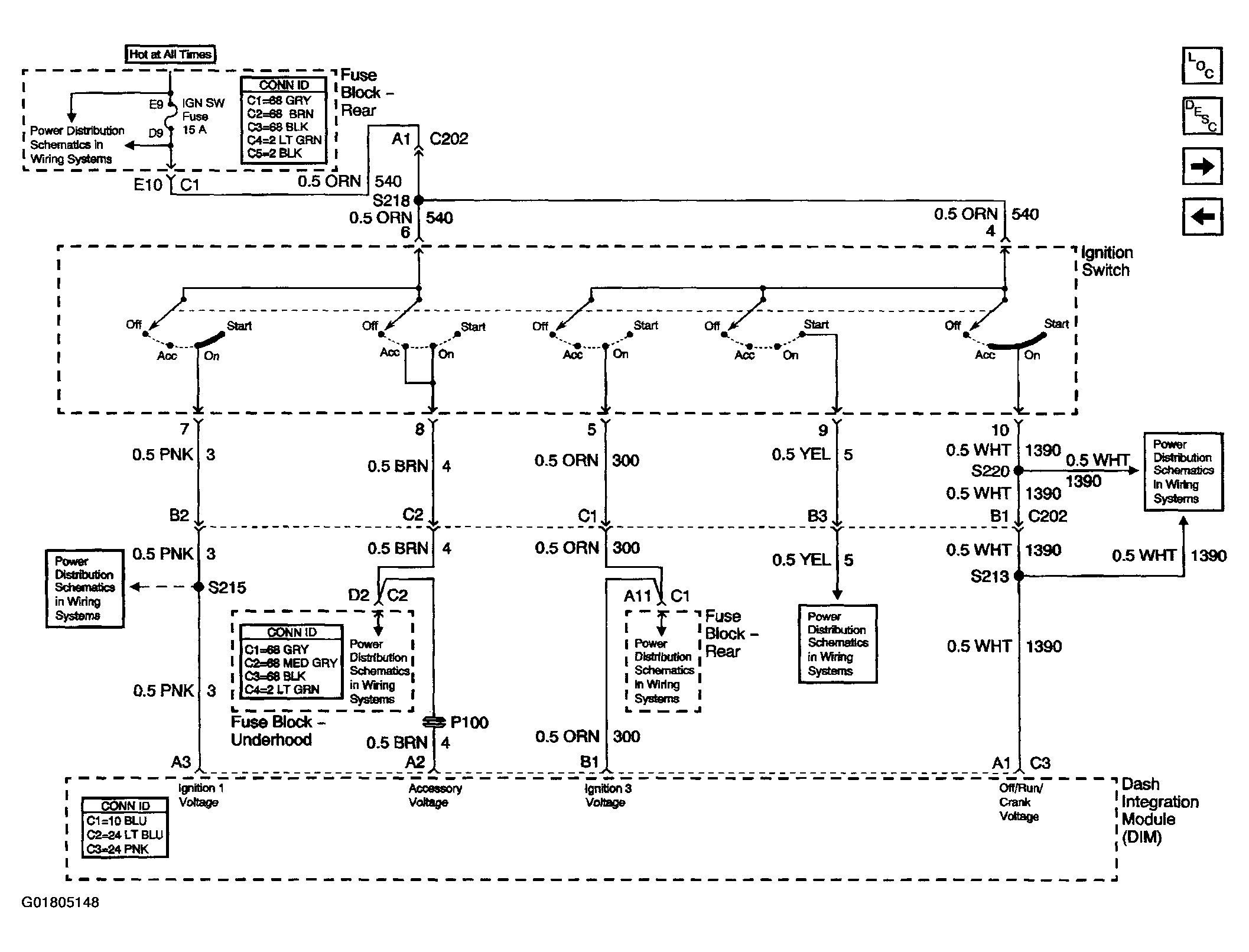

Fig 2: Body Control Module Schematics (Dash Integration Module (DIM) - Ignition Switch Inputs)

Courtesy of GENERAL MOTORS CORP.

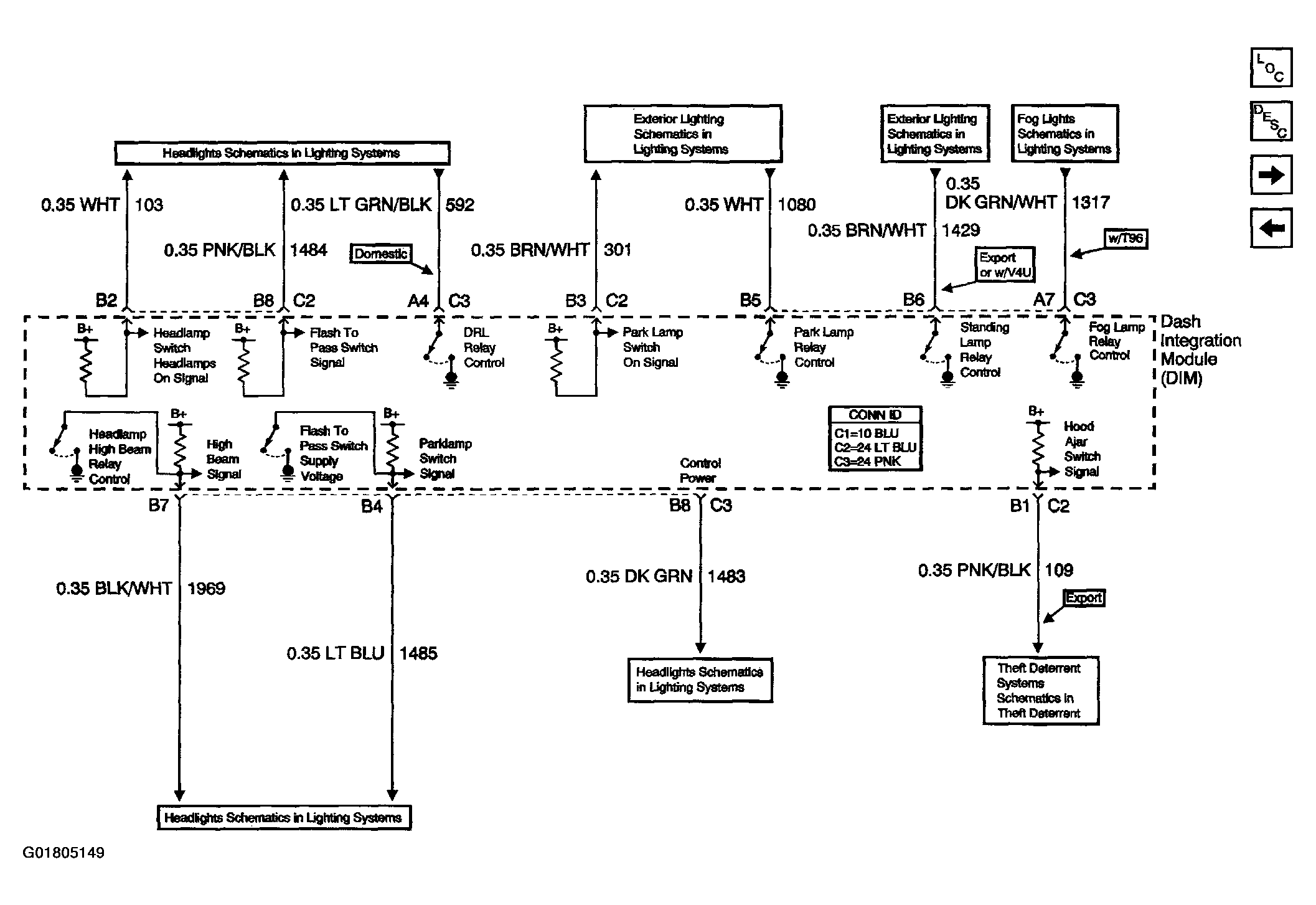

Fig 3: Body Control Module Schematics (Dash Integration Module (DIM) - Lighting Inputs & Outputs)

Courtesy of GENERAL MOTORS CORP.

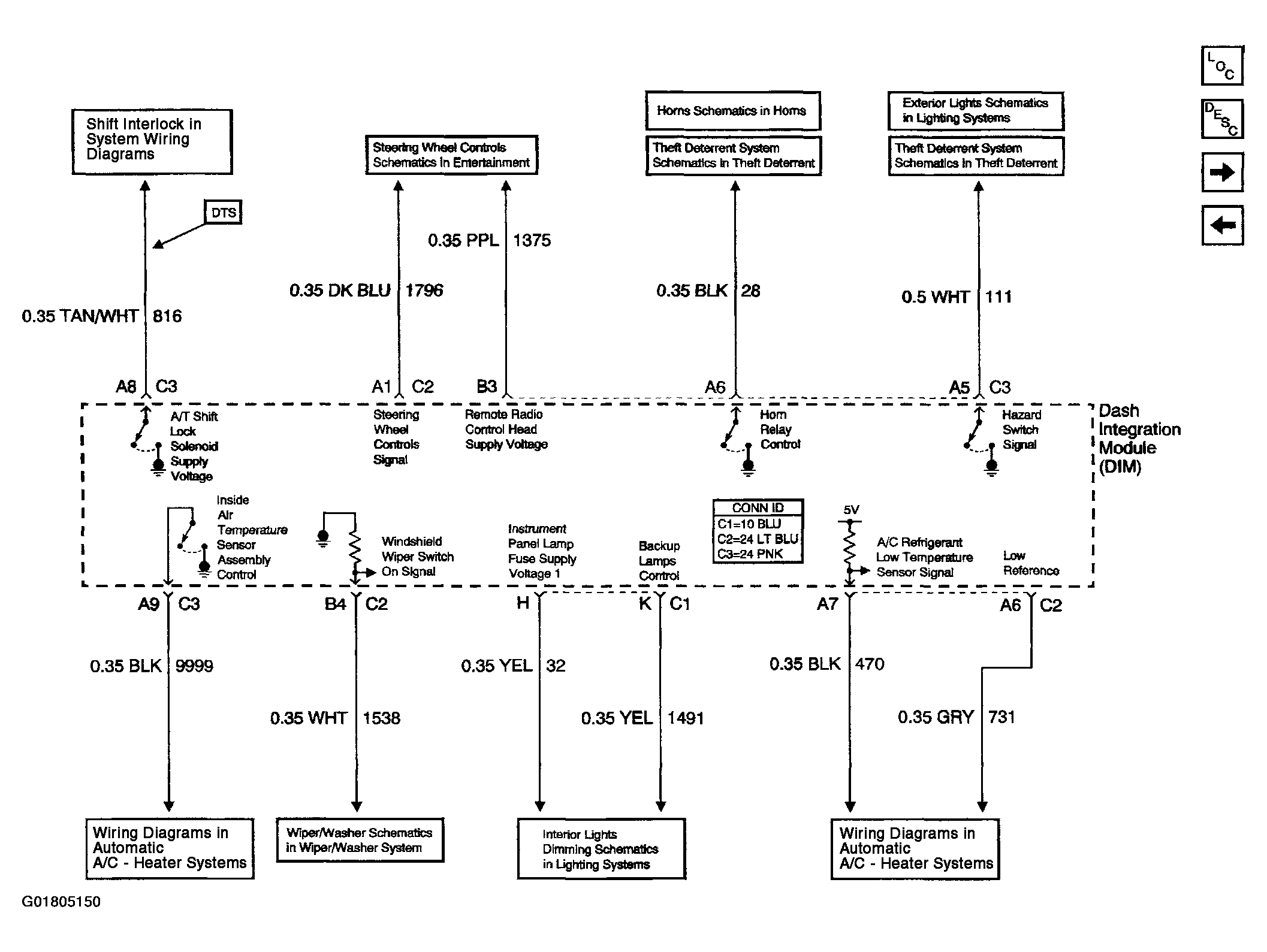

Fig 4: Body Control Module Schematics (Dash Integration Module (DIM) - Inputs & Outputs)

Courtesy of GENERAL MOTORS CORP.

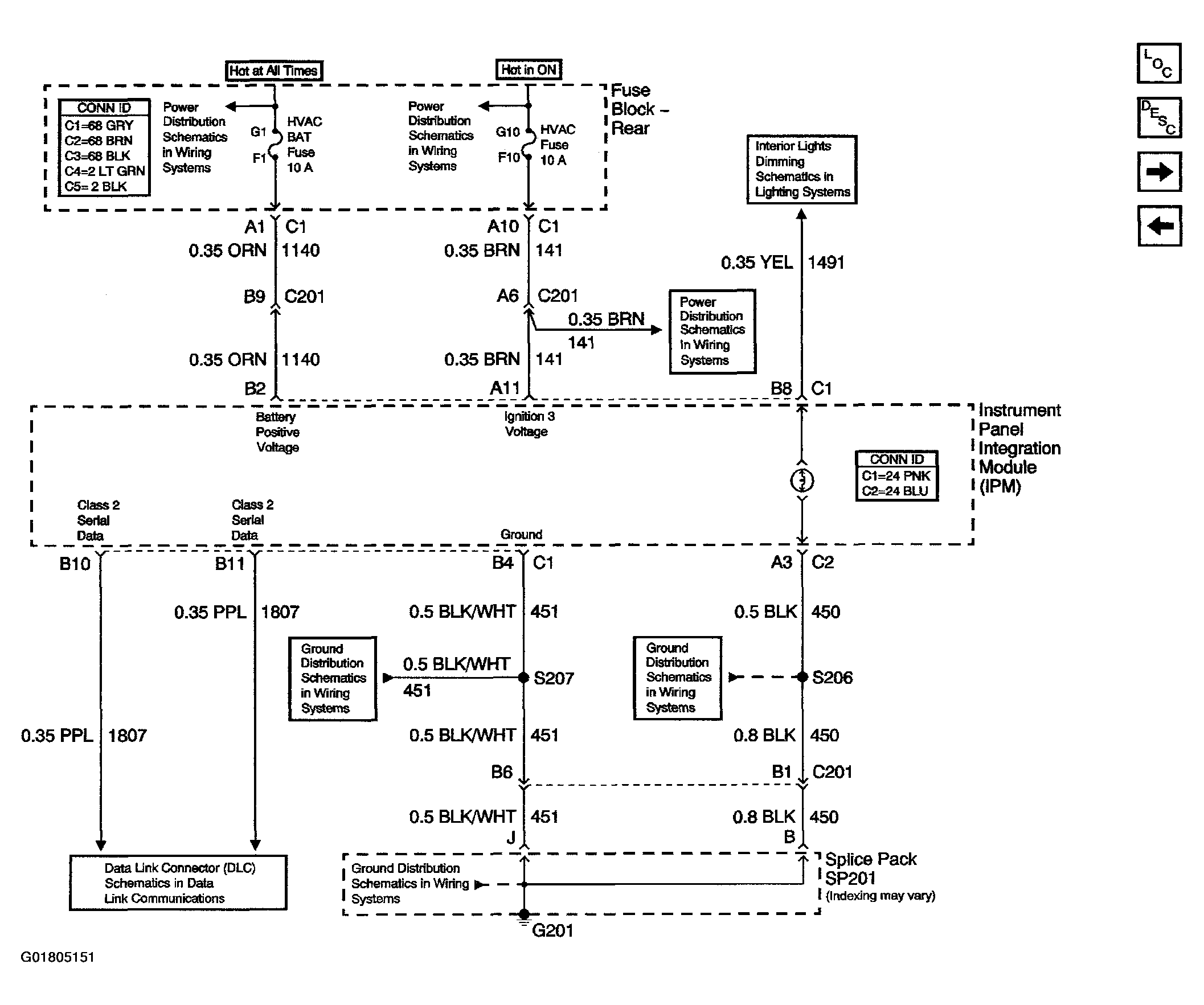

Fig 5: Body Control Module Schematics (Instrument Panel Integration Module (IPM) Power, Ground & Serial Data)

Courtesy of GENERAL MOTORS CORP.

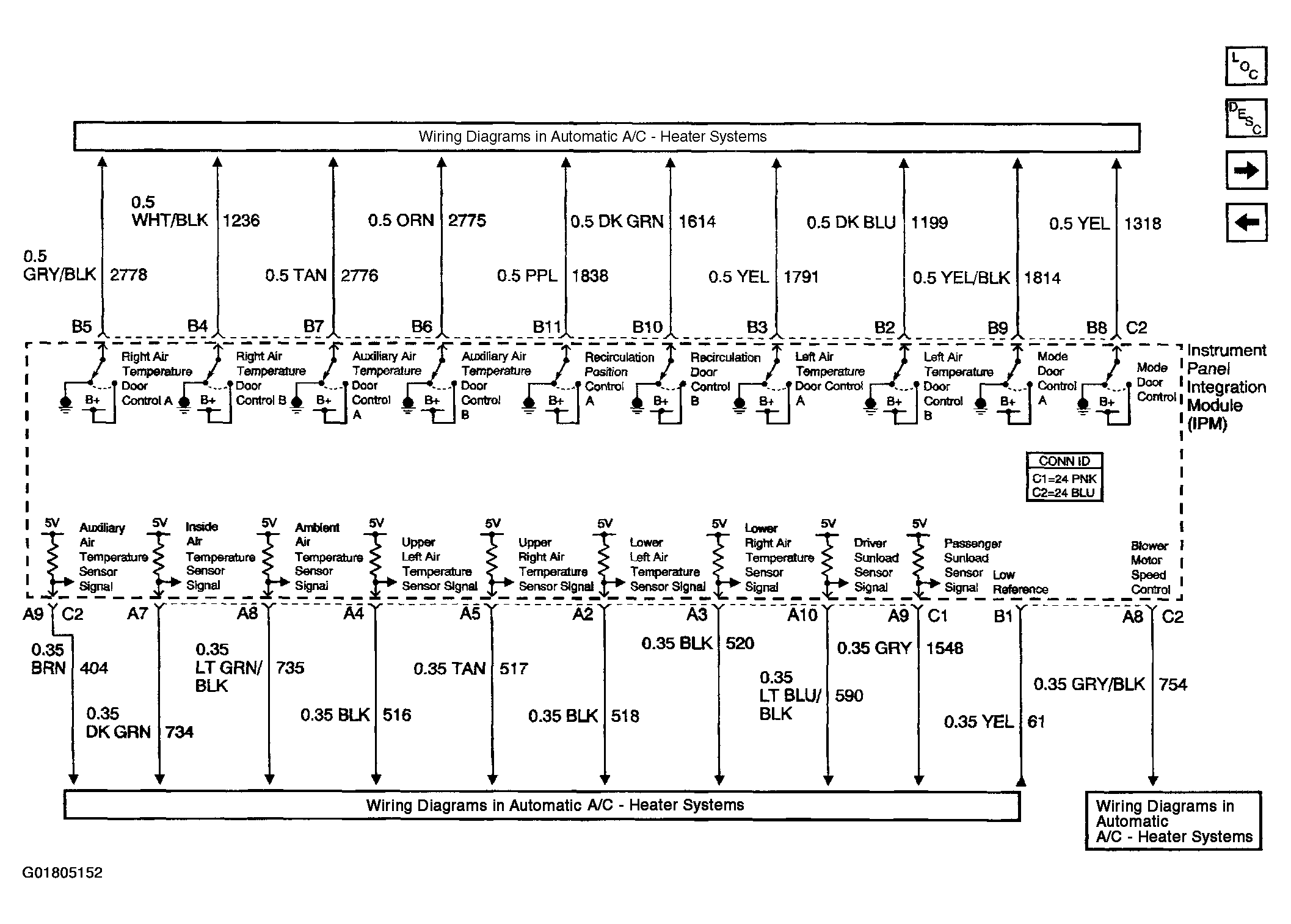

Fig 6: Body Control Module Schematics (Instrument Panel Integration Module (IPM) - HVAC Inputs & Outputs)

Courtesy of GENERAL MOTORS CORP.

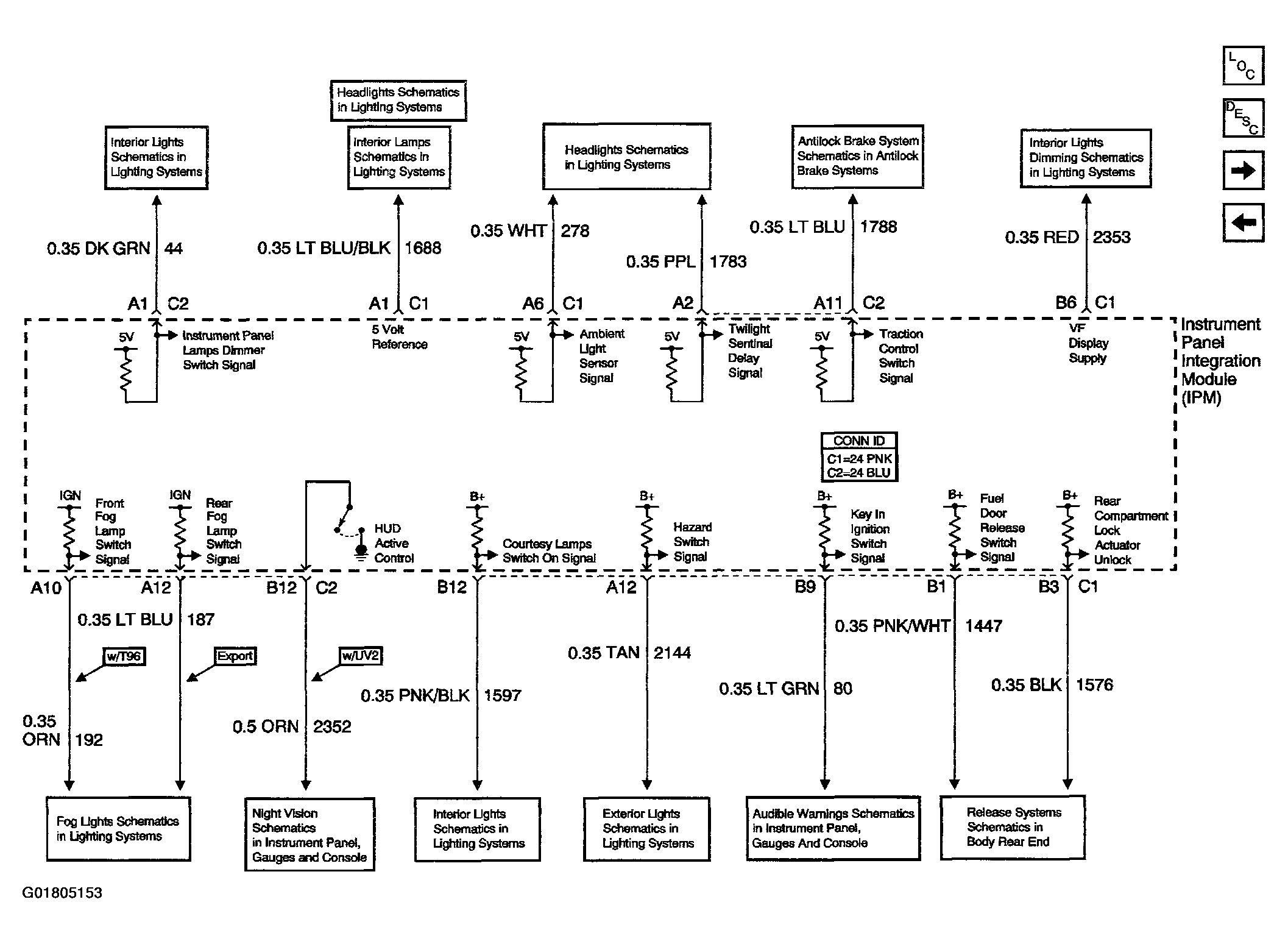

Fig 7: Body Control Module Schematics (Instrument Panel Integration Module (IPM) - Inputs & Outputs)

Courtesy of GENERAL MOTORS CORP.

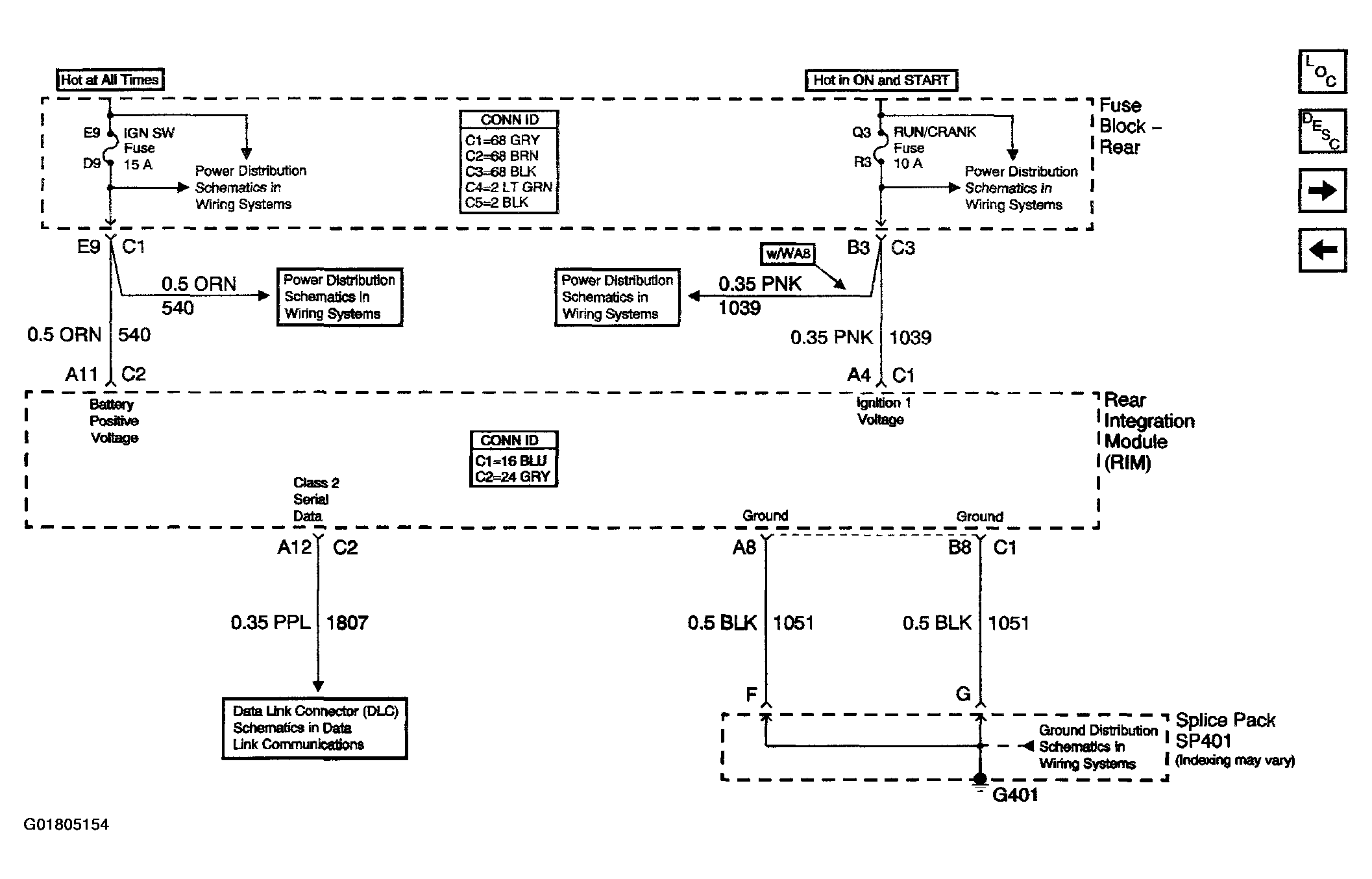

Fig 8: Body Control Module Schematics (Rear Integration Module (RIM) - Power, Ground & Serial Data)

Courtesy of GENERAL MOTORS CORP.

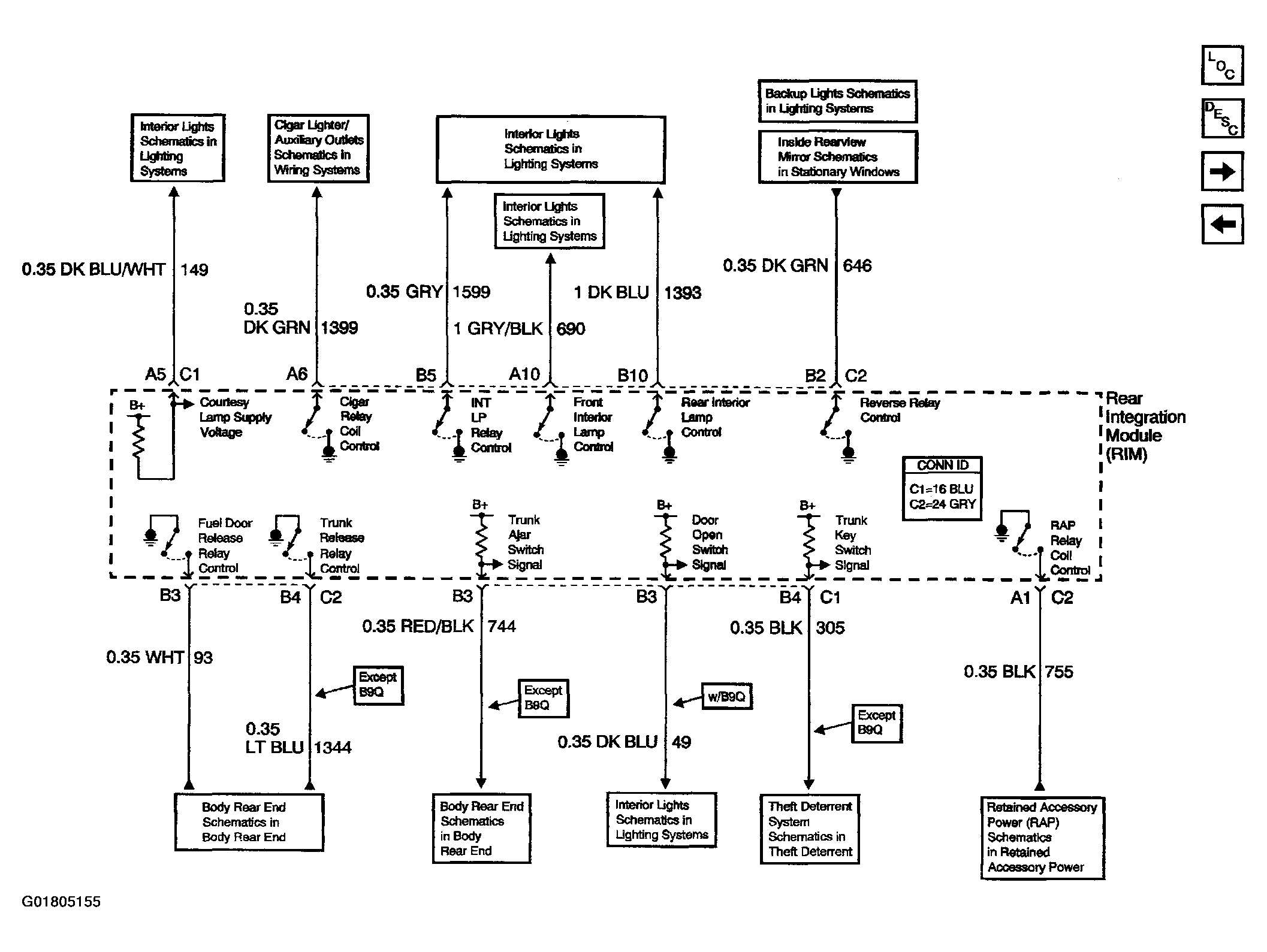

Fig 9: Body Control Module Schematics (Rear Integration Module (RIM) - Lighting, Release Systems & Other Inputs & Outputs)

Courtesy of GENERAL MOTORS CORP.

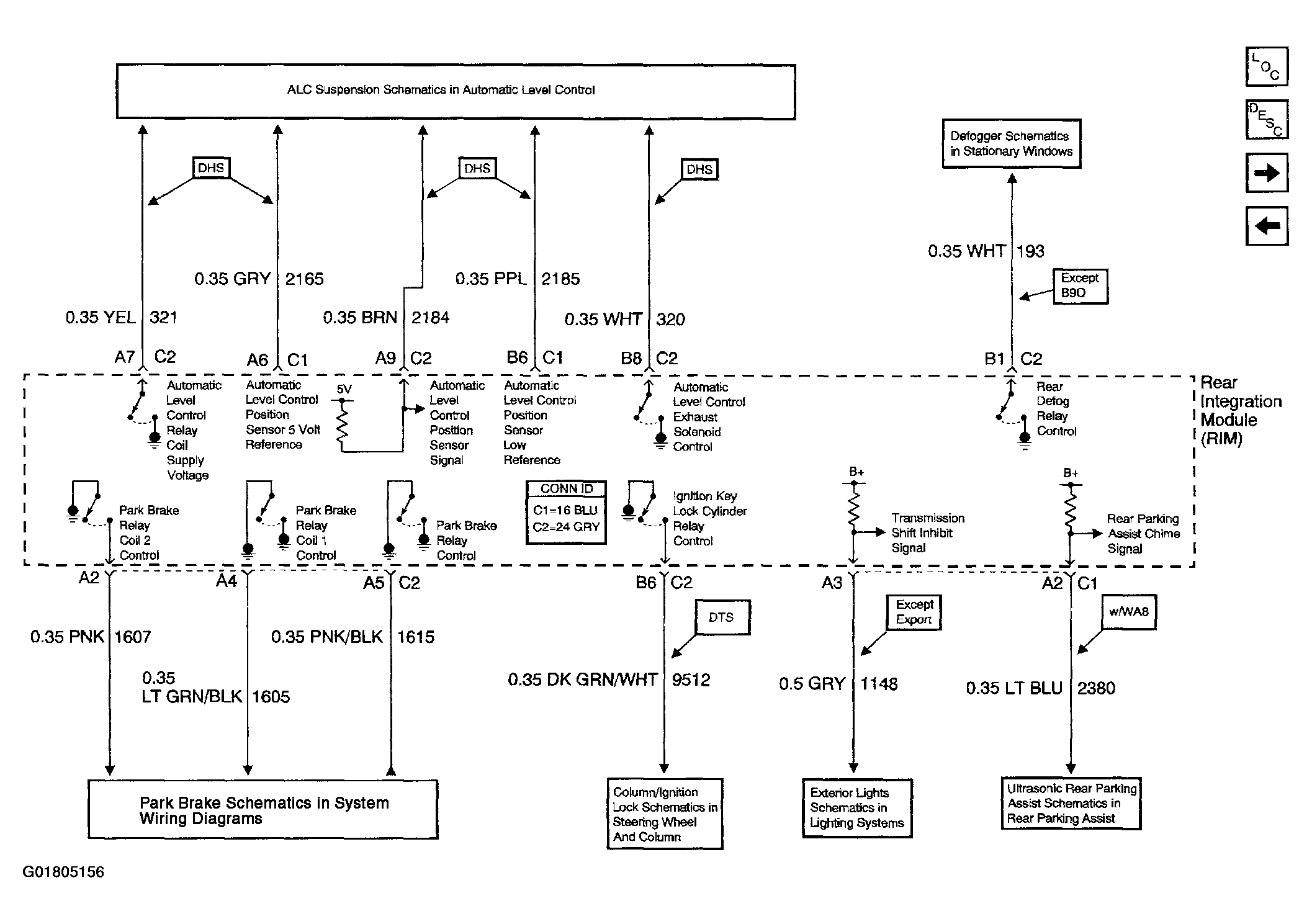

Fig 10: Body Control Module Schematics (Rear Integration Module (RIM) - Level Control & Other Inputs & Outputs)

Courtesy of GENERAL MOTORS CORP.
