Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the DIM module to the bracket.
  2. Slide the DIM module upward until the DIM module and the locking tab are fully engaged.

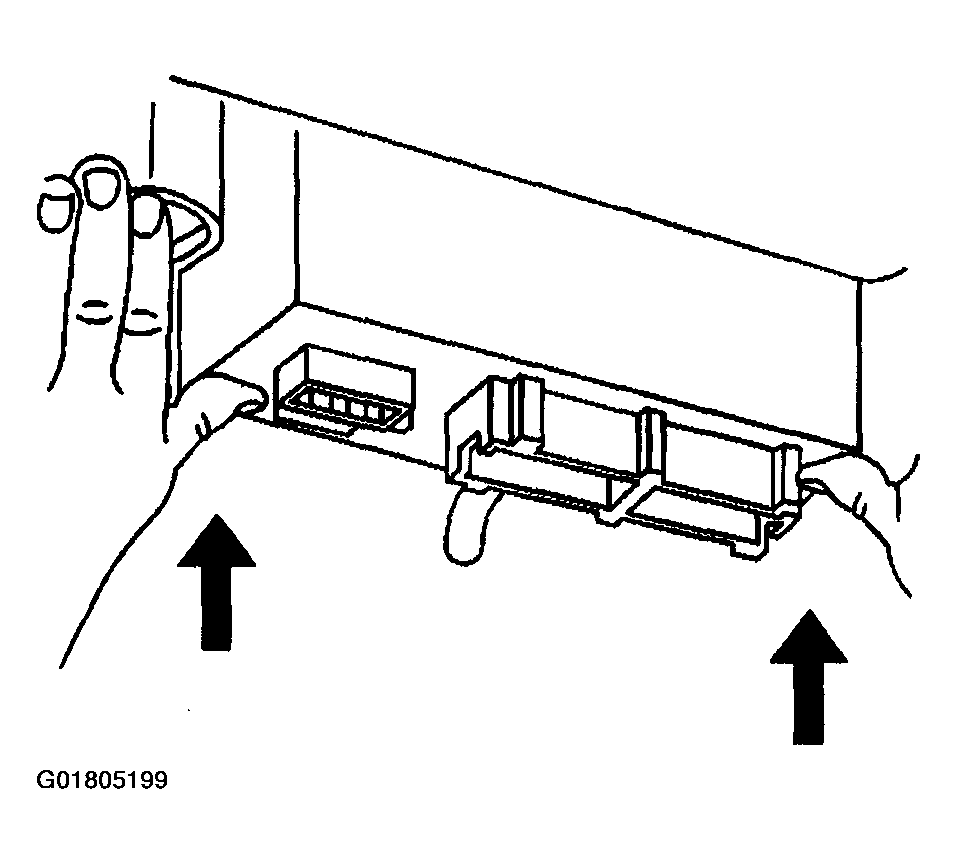

    Fig 1: Sliding DIM Module Upward
    G01805199Courtesy of GENERAL MOTORS CORP.
  3. Connect the DIM module electrical connectors (2).
  4. Install the right sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .
  5. Reprogram the DIM module (1). Refer to Body Control Module (BCM) Programming/RPO Configuration (DIM)  or Body Control Module (BCM) Programming/RPO Configuration (IPM)  or Body Control Module (BCM) Programming/RPO Configuration (RIM) .

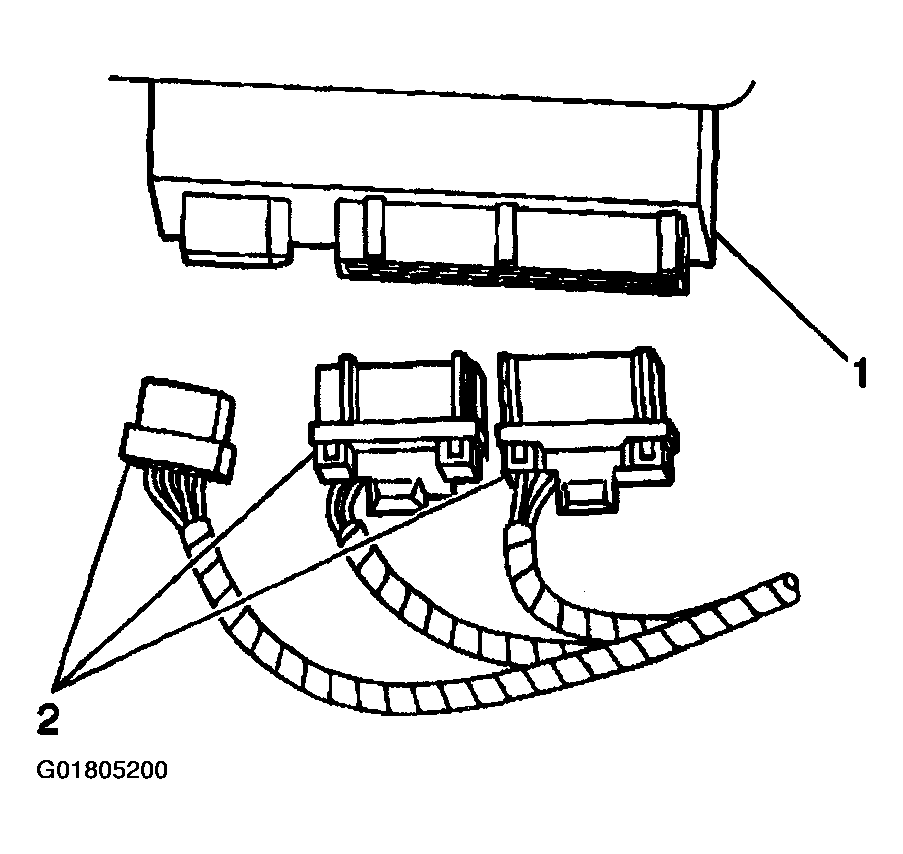

    Fig 2: Connecting DIM Module Electrical Connectors & Reprogram DIM Module
    G01805200Courtesy of GENERAL MOTORS CORP.
