Home >> Cadillac >> 2000 >> Escalade V8-5.7L VIN R >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Diagrams >> Electrical Diagrams >> Content Theft Deterrent

Content Theft Deterrent

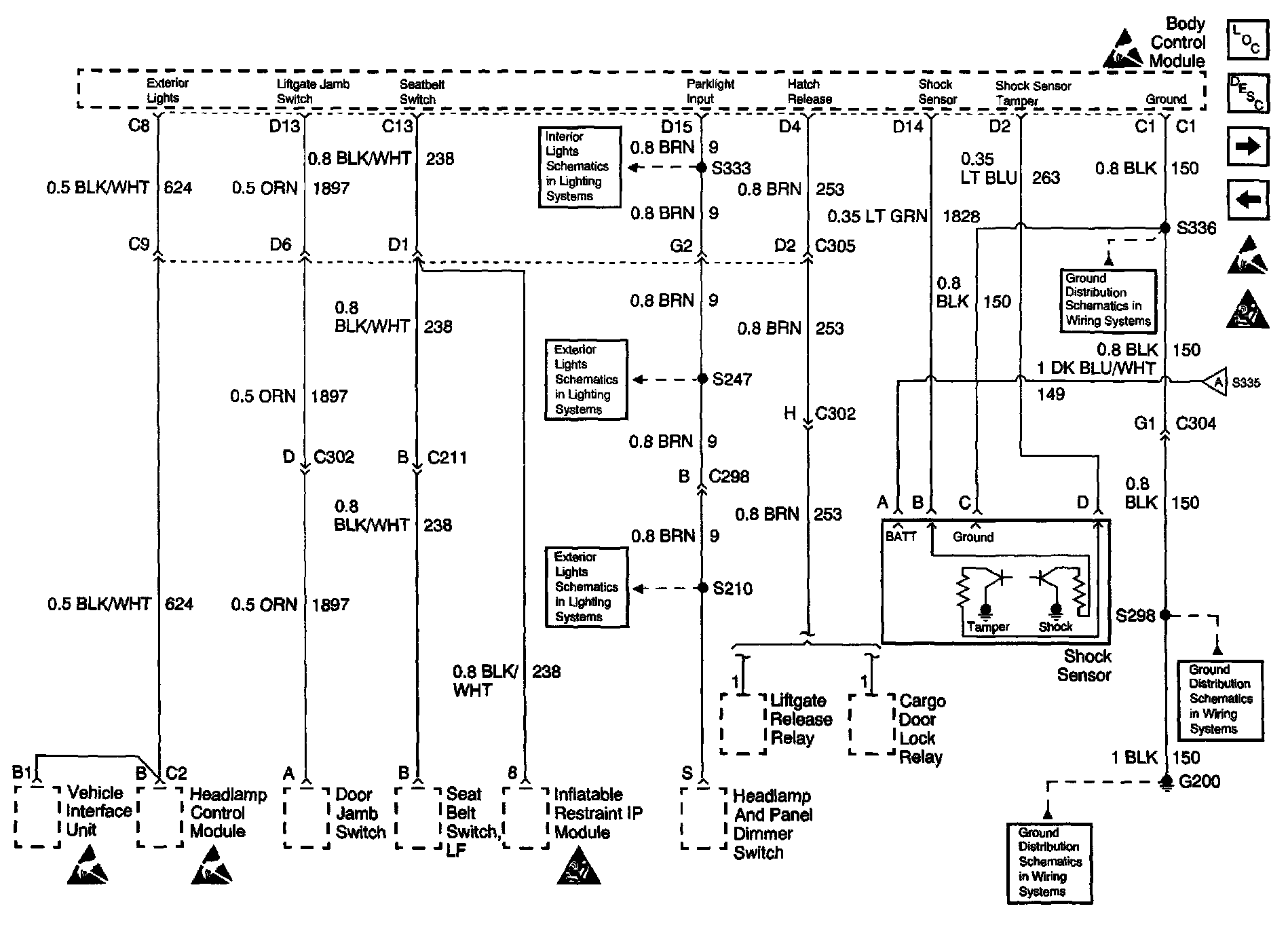

Body Control Module Schematics: Content Theft Deterrent:
