Control Module

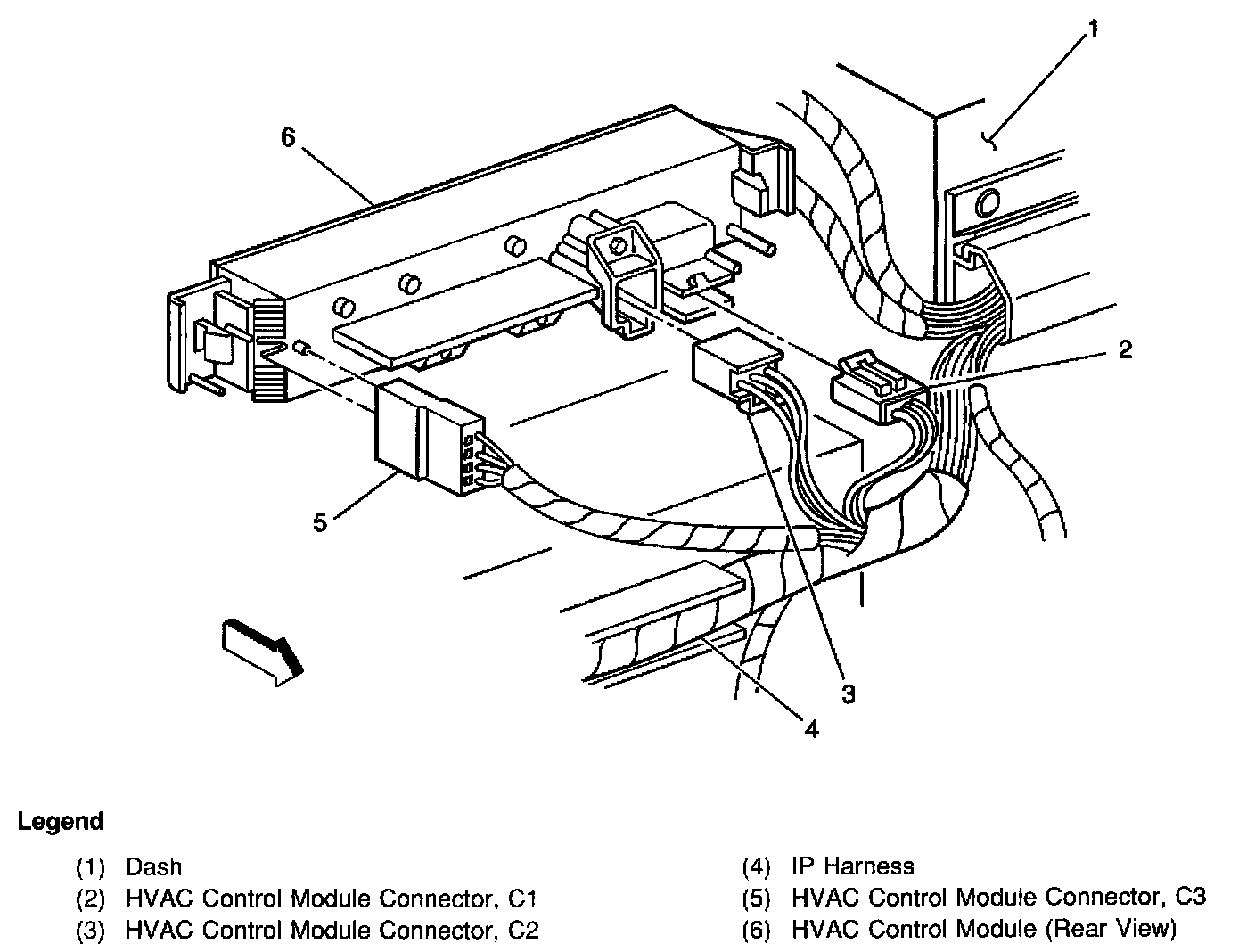

Control Module (Rear View)

Locations View:





Locations View:





Part of the heater controls, in the center of the IP, under the radio
