Home >> Cadillac >> 2000 >> Escalade V8-5.7L VIN R >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Locations >> Component Locations >> Auxiliary Control Module, Front

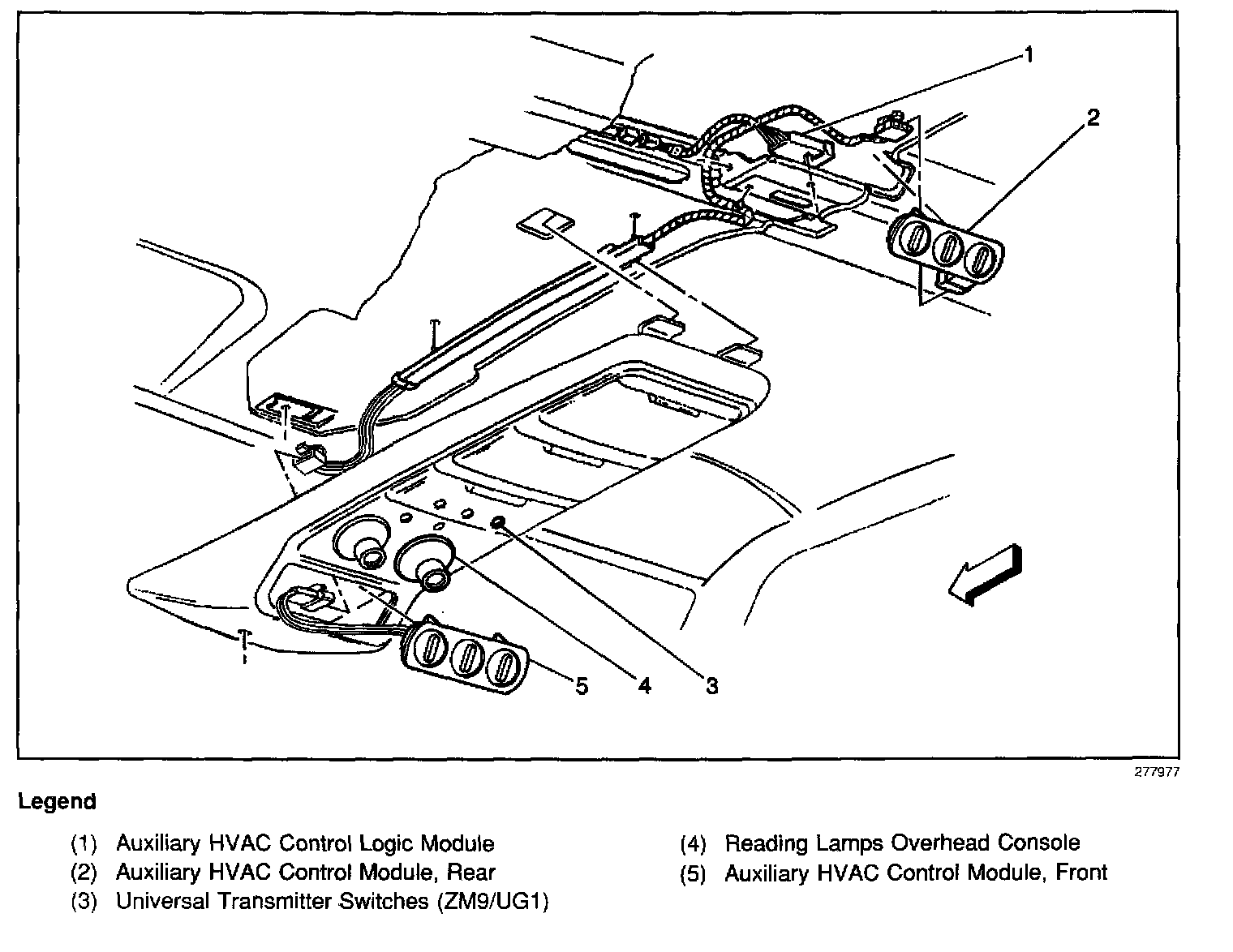

Auxiliary Control Module, Front

Locations View:




On the front of the overhead console, near the windshield
