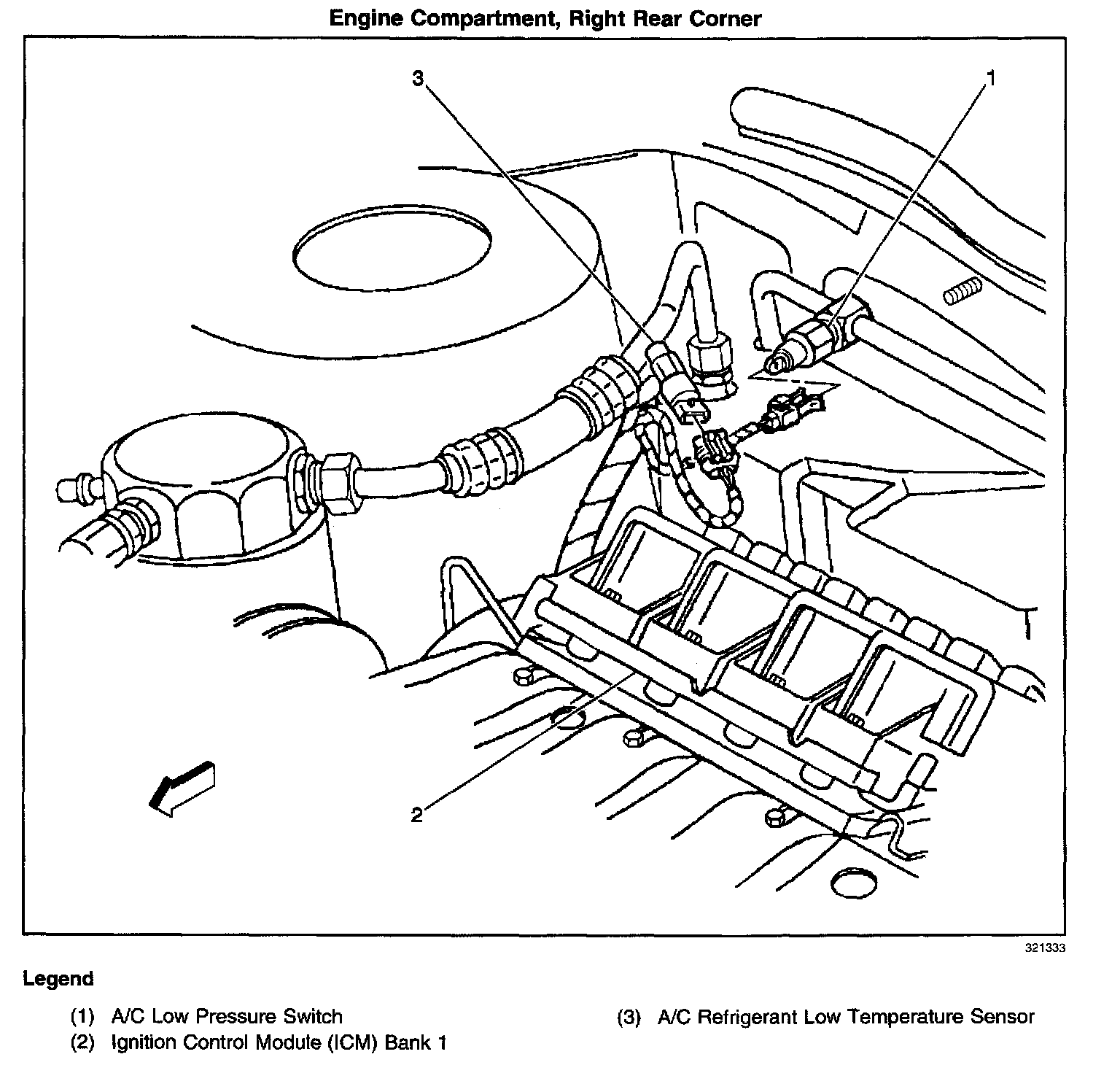

Ignition Control Module: Locations

Locations View:




On the right rear of the engine, on the rear cam cover, under the ignition coils
