Electrical Diagrams

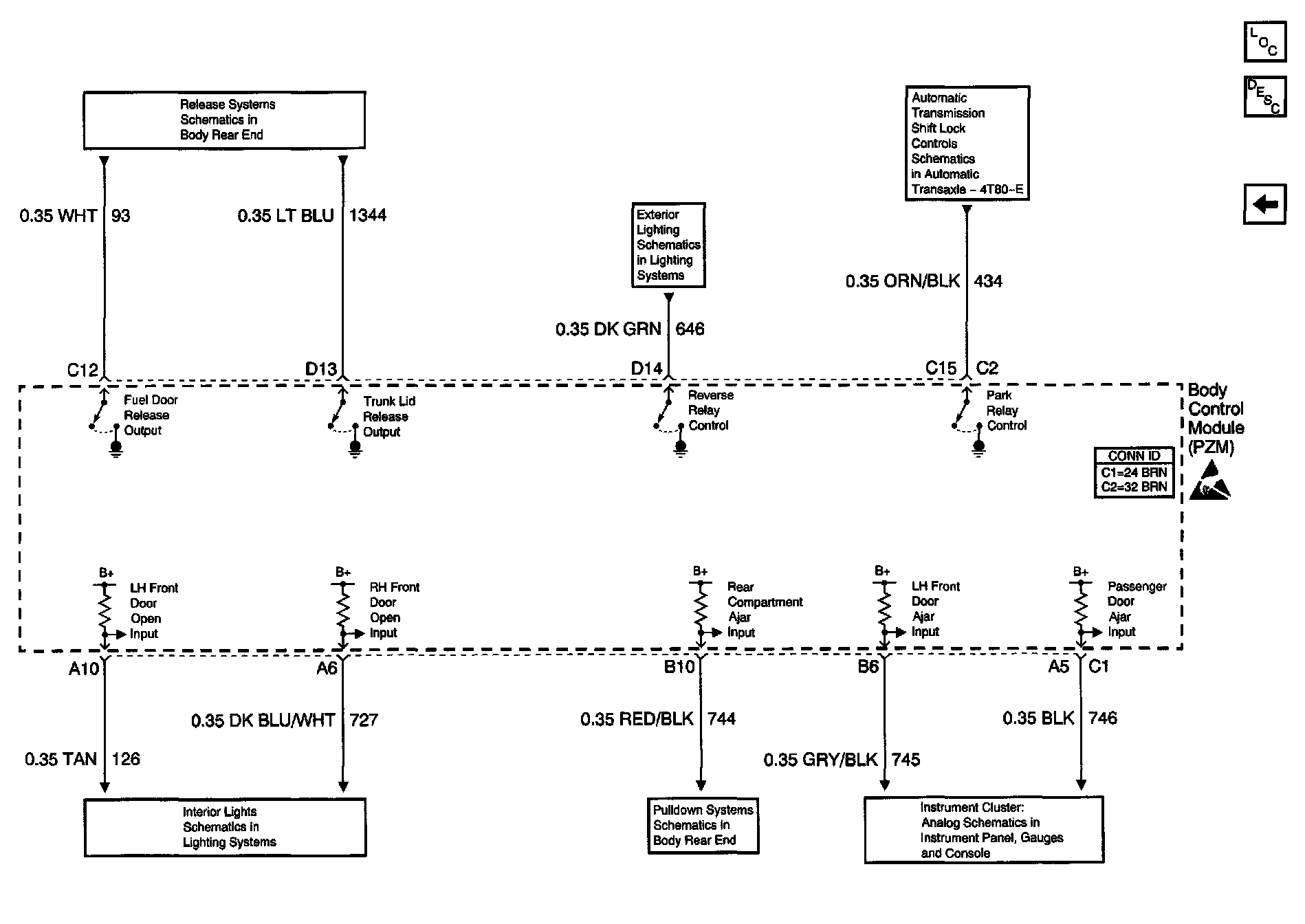

Body Control Module Schematics: Body Control Module Inputs And Outputs (Part 1 Of 4):

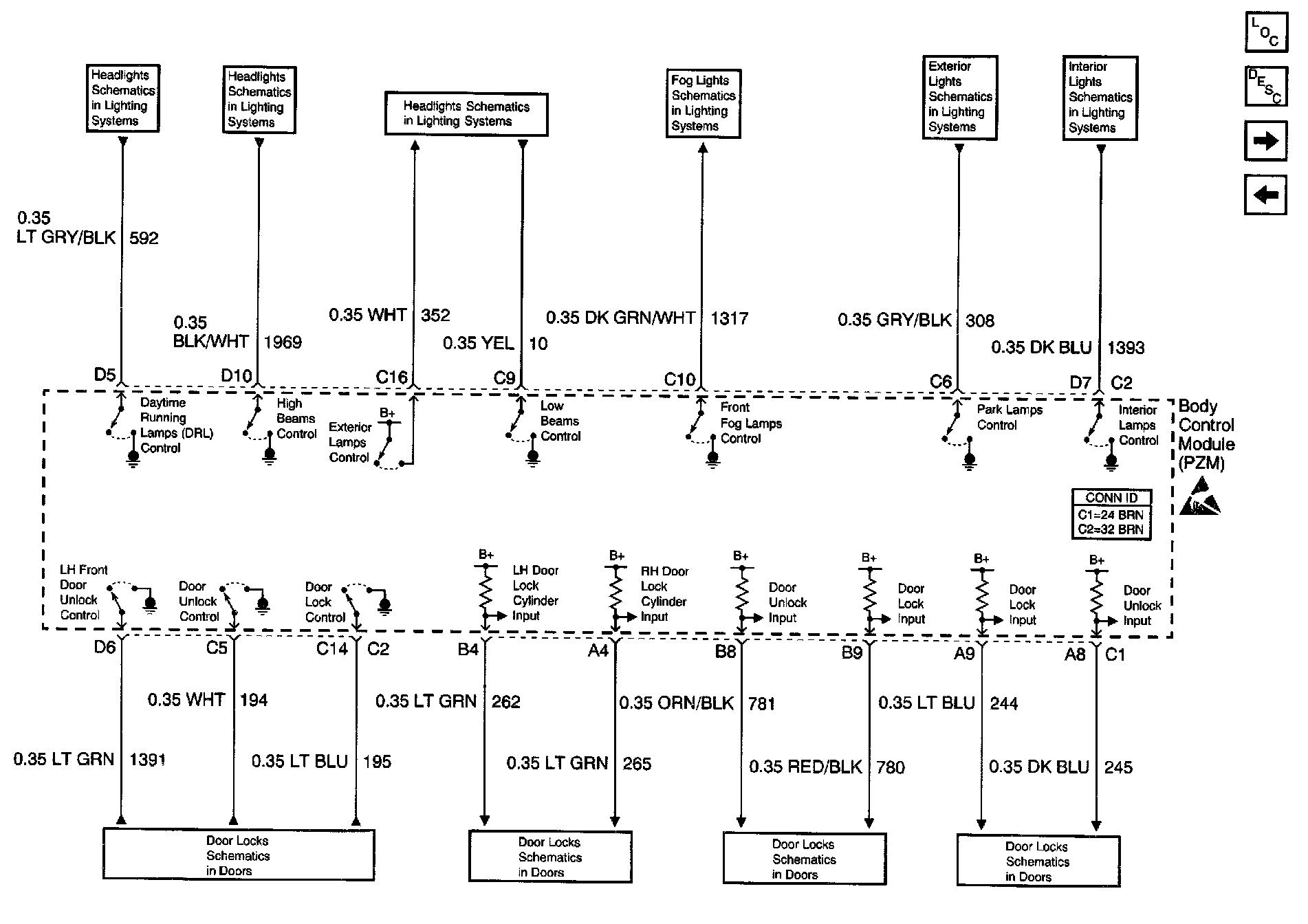

Body Control Module Schematics: Body Control Module Inputs And Outputs (Part 2 Of 4):

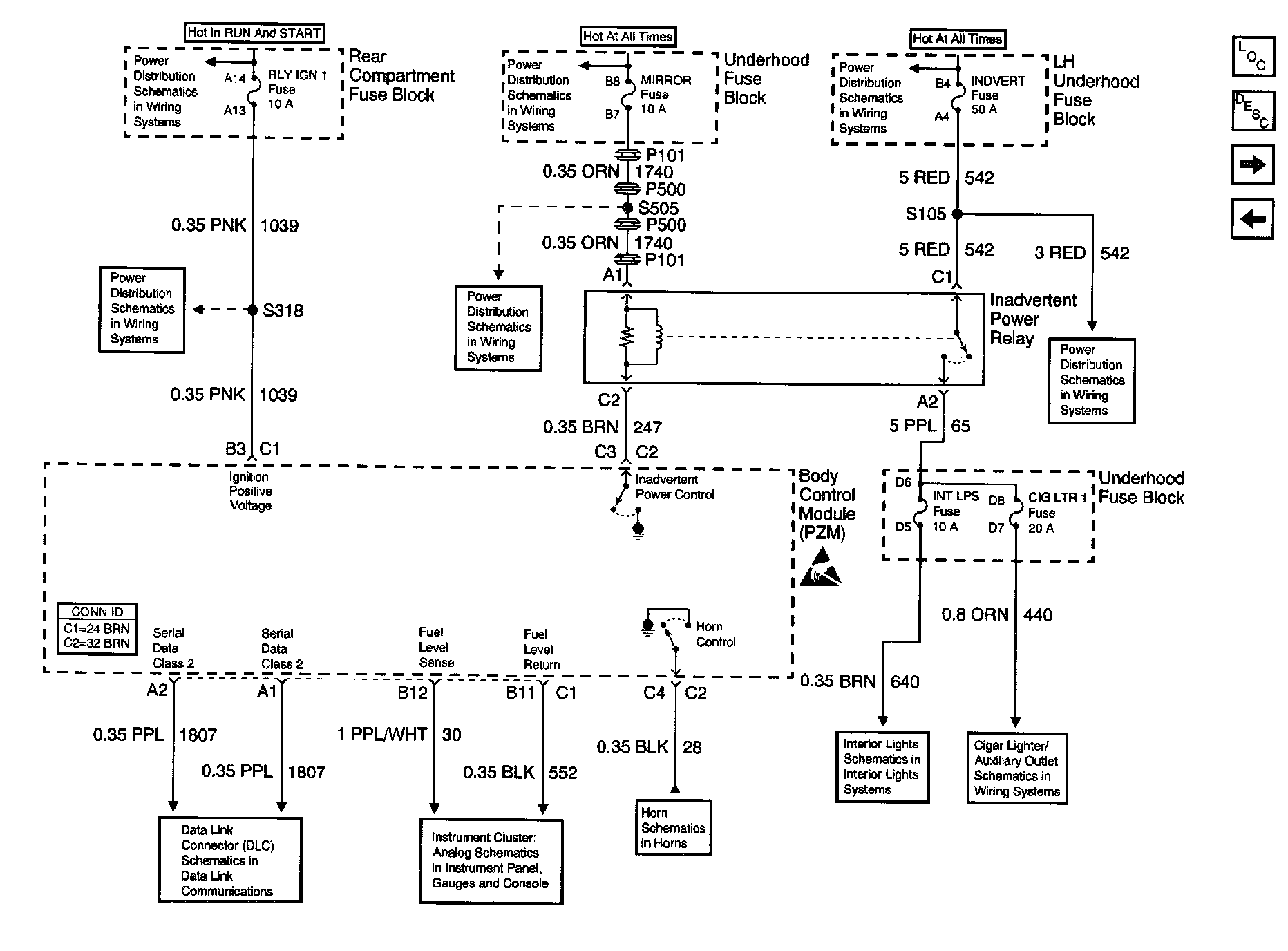

Body Control Module Schematics: Body Control Module Inputs And Outputs (Part 3 Of 4):

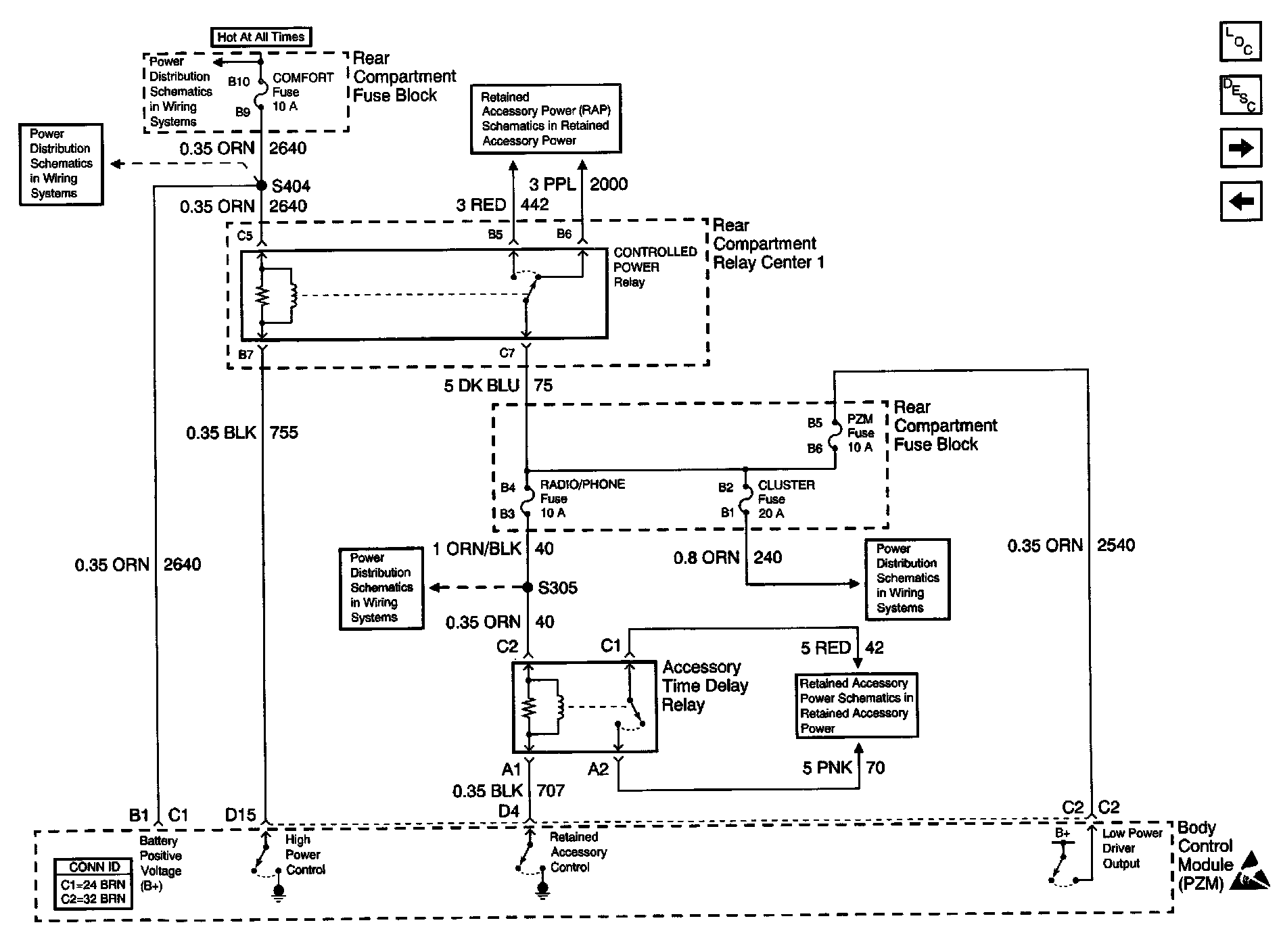

Body Control Module Schematics: Body Control Module Inputs And Outputs (Part 4 Of 4):
