Home >> Cadillac >> 2000 >> Eldorado V8-4.6L VIN Y >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Controls >> Vehicle Speed Output and Cruise Control Module

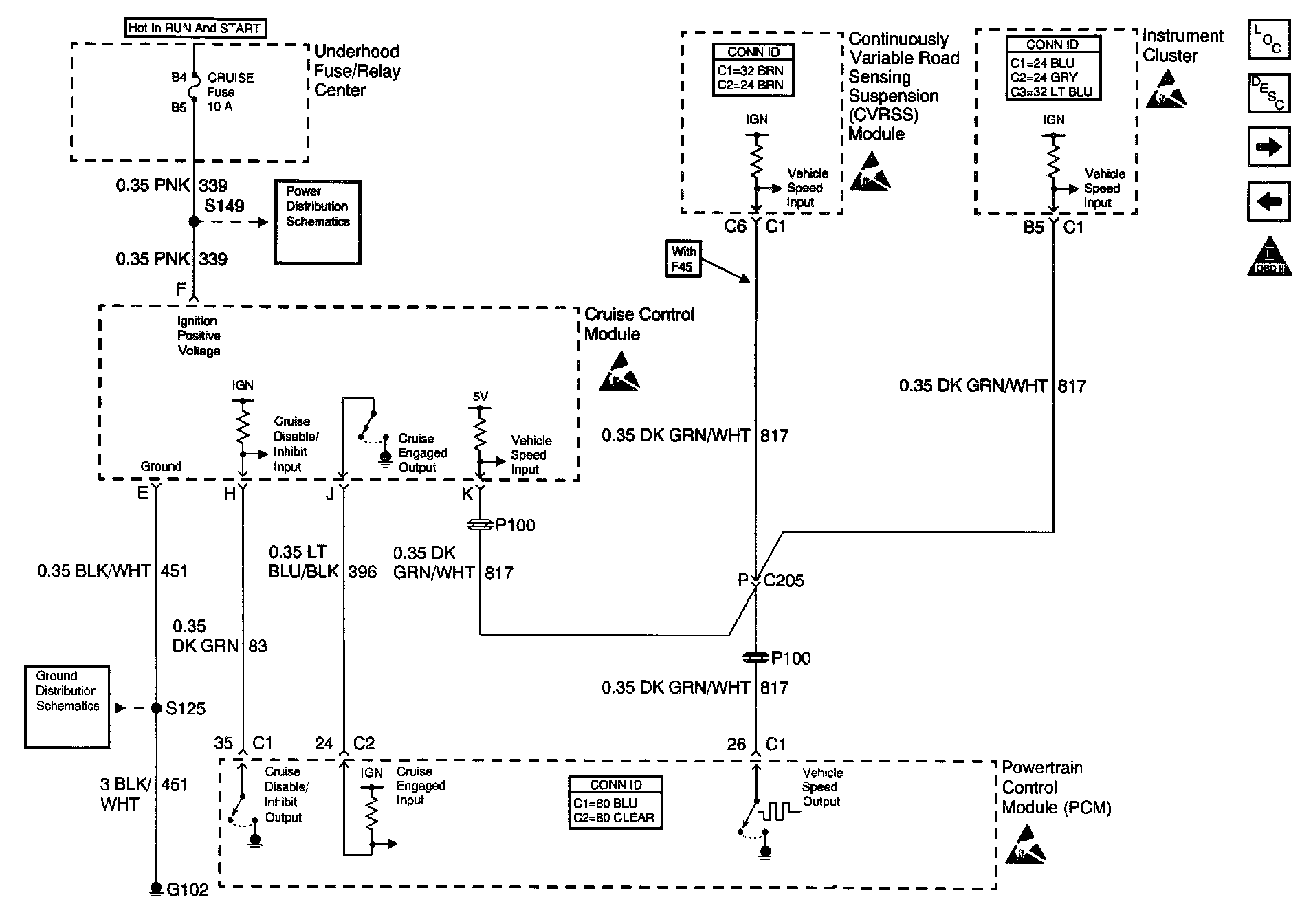

Vehicle Speed Output and Cruise Control Module

Engine Controls Schematics: Vehicle Speed Output and Cruise Control Module:
