Front Camber Adjustment

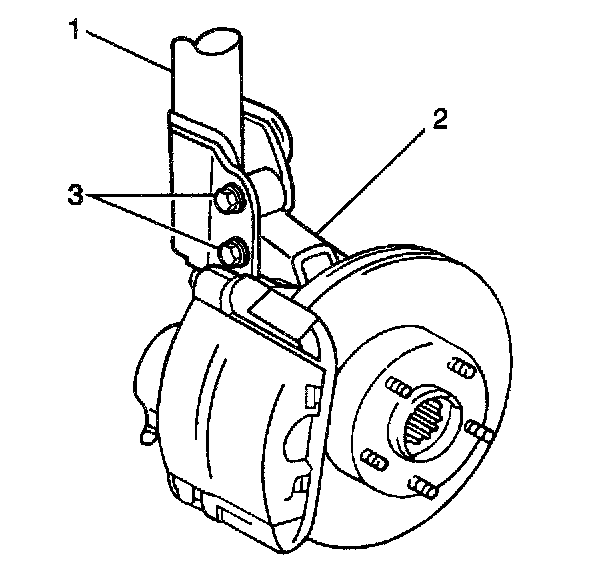

1. Loosen both strut to knuckle nuts (3) and drive the bolt partially out of the knuckle.

Notice: Refer to Fastener Notice in Service Precautions.

2. Set camber to specification using camber adjustment bolt.
- Tighten both strut to knuckle nuts to 190 Nm (140 ft. lbs.).
- Tighten camber adjustment bolt to 10 Nm (7 ft. lbs.).
