System Diagram

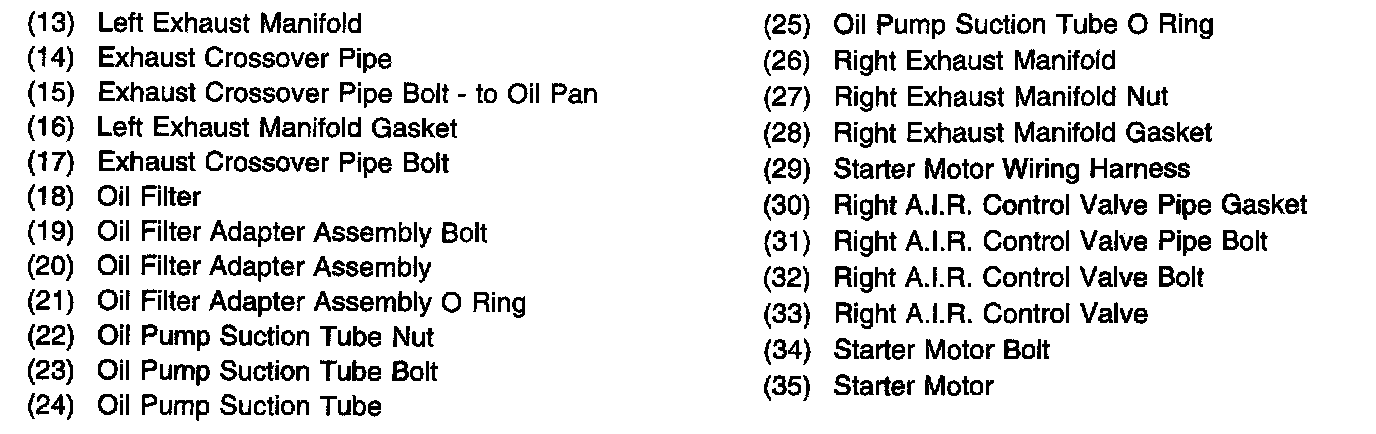

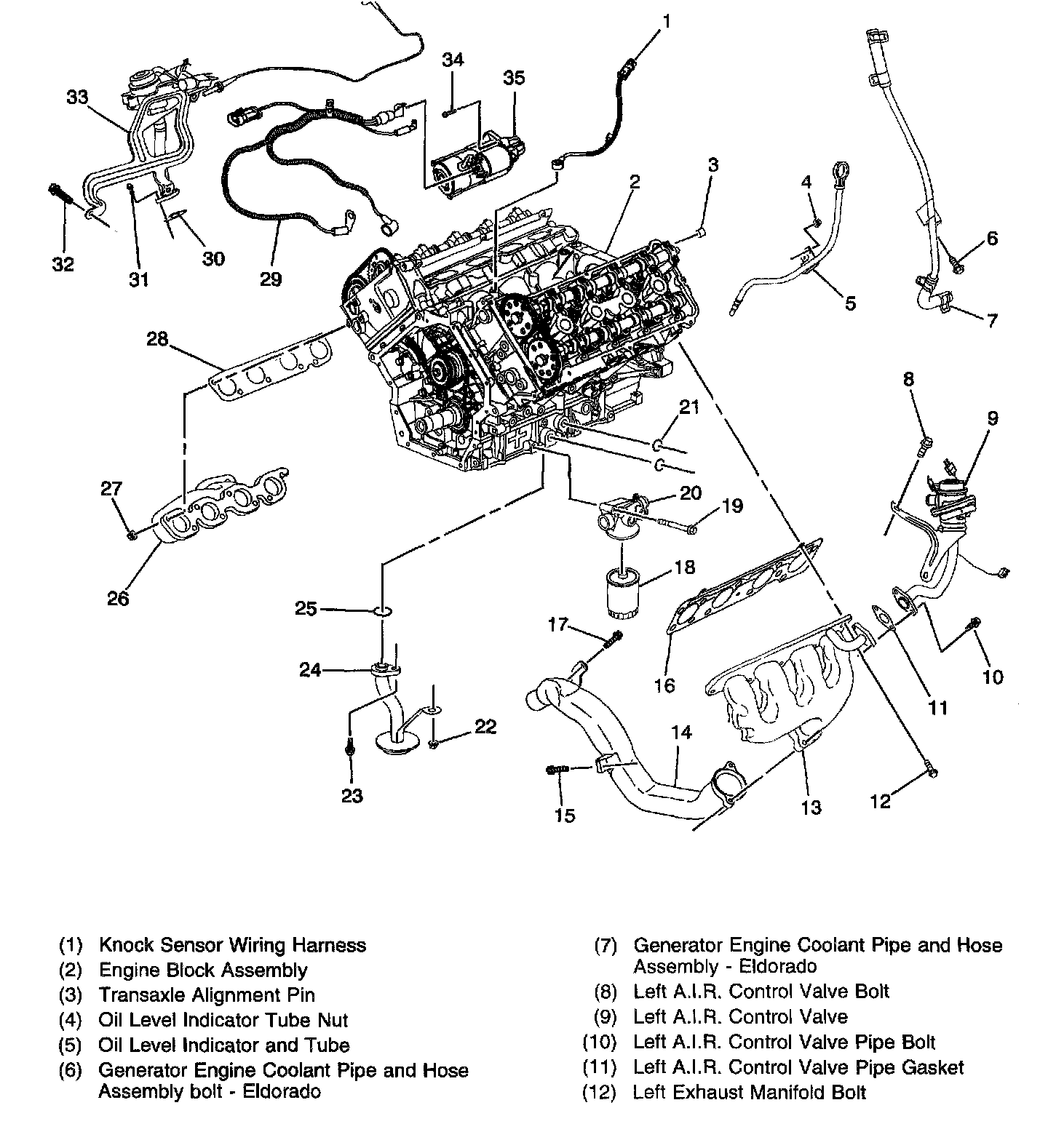

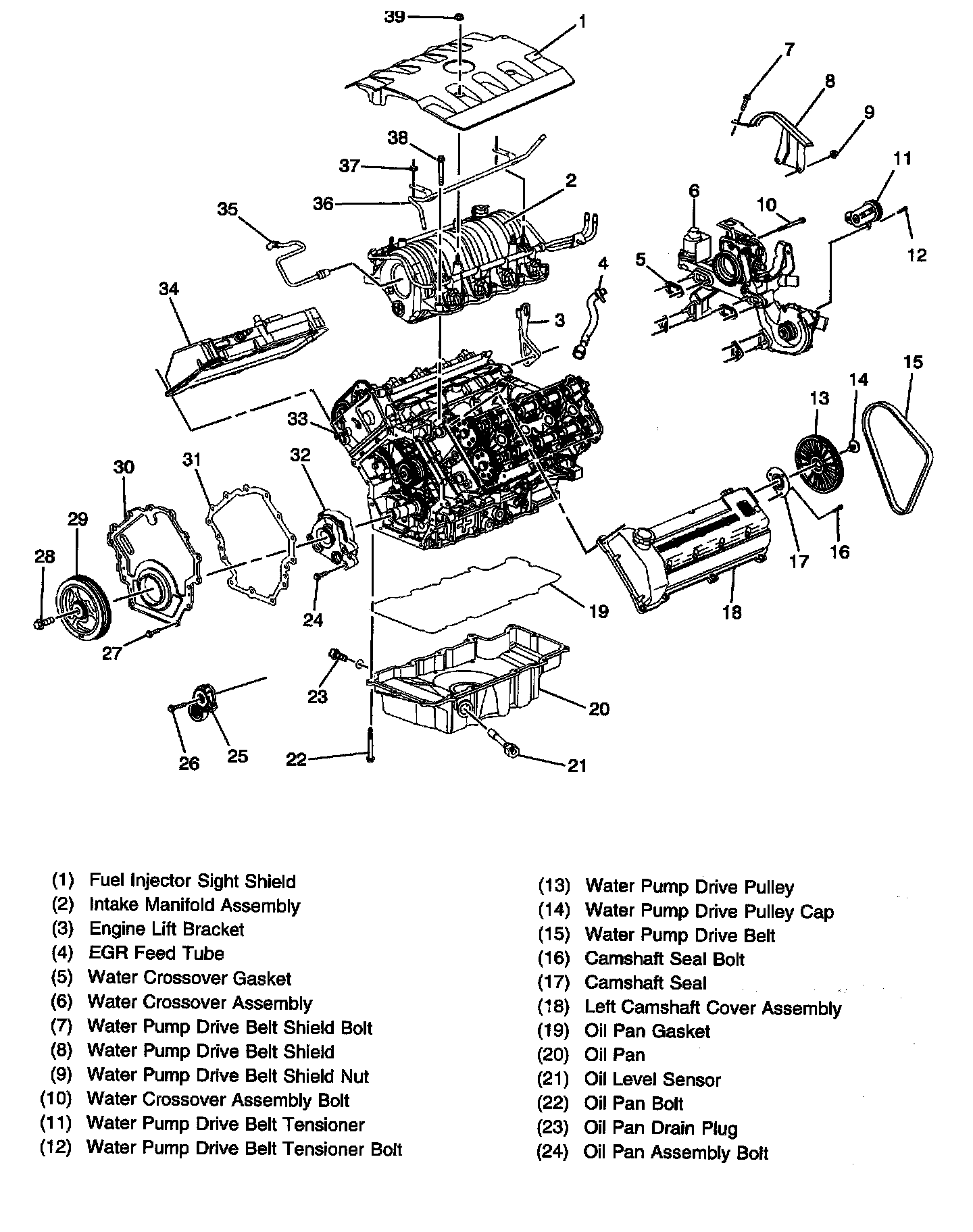

Engine Covers and Component Assemblies (1 of 2)
Engine covers and Component Assemblies (2 of 2)

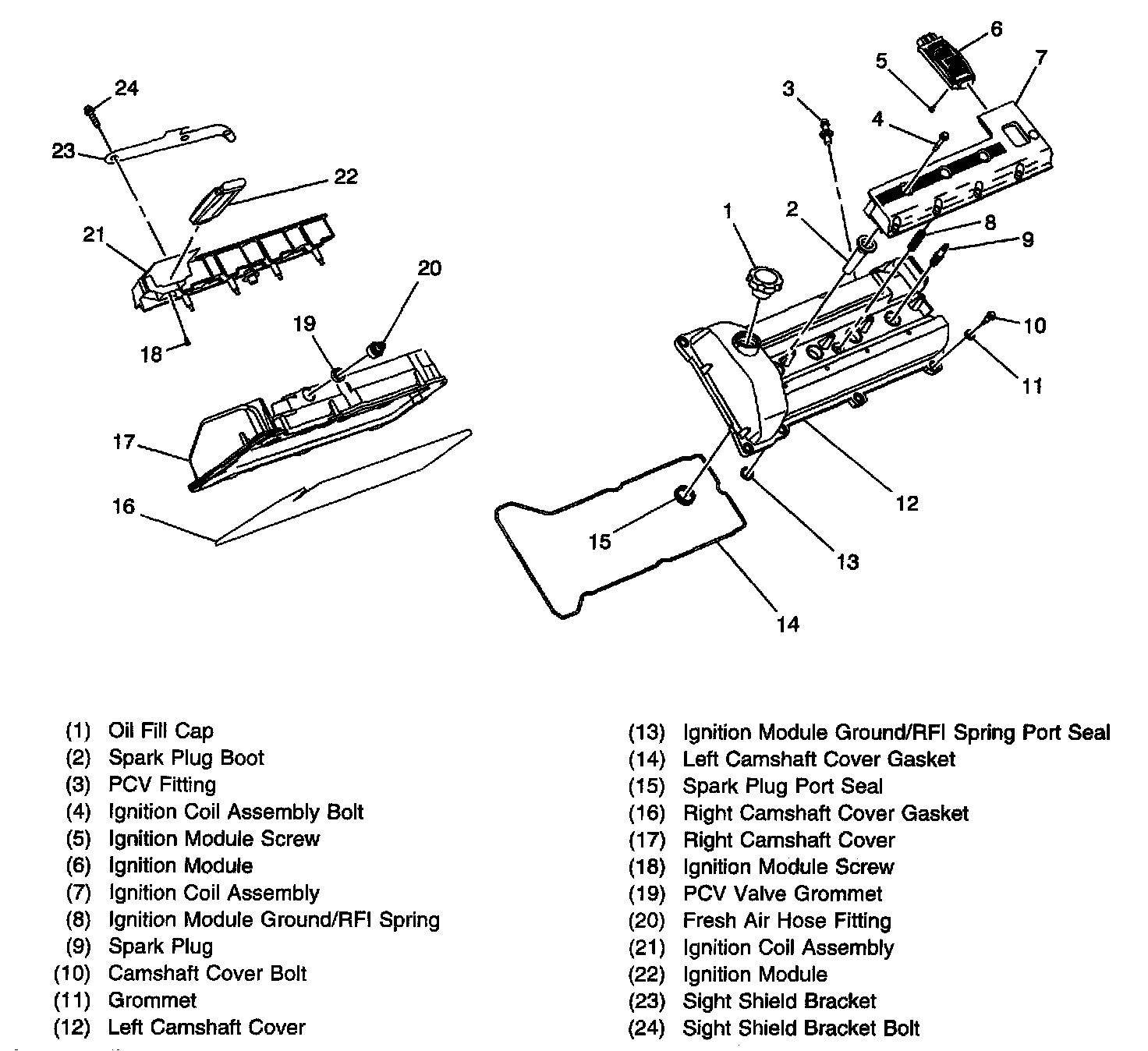

Camshaft Cover Assembly

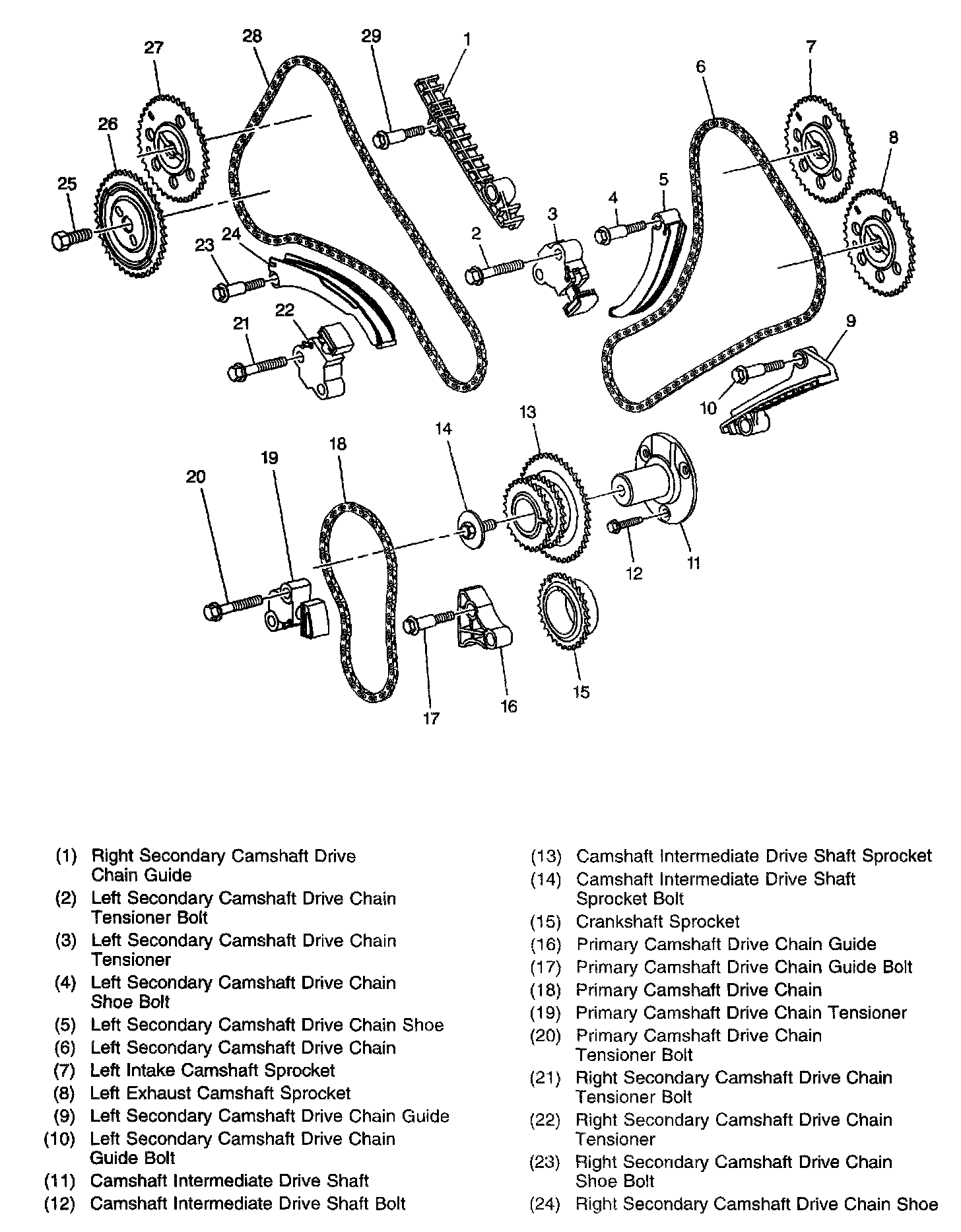

Camshaft Timing Components

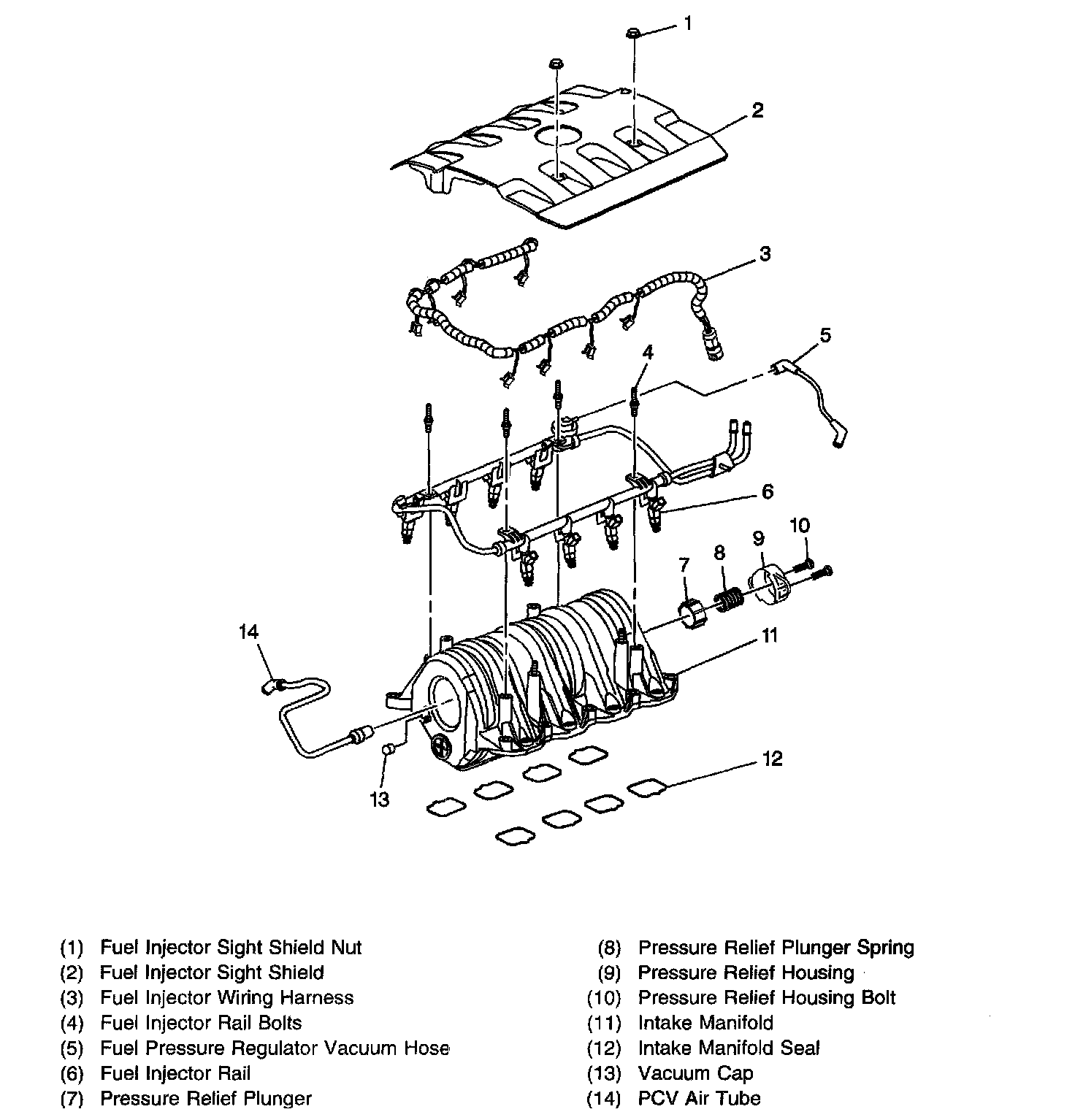

Intake Manifold

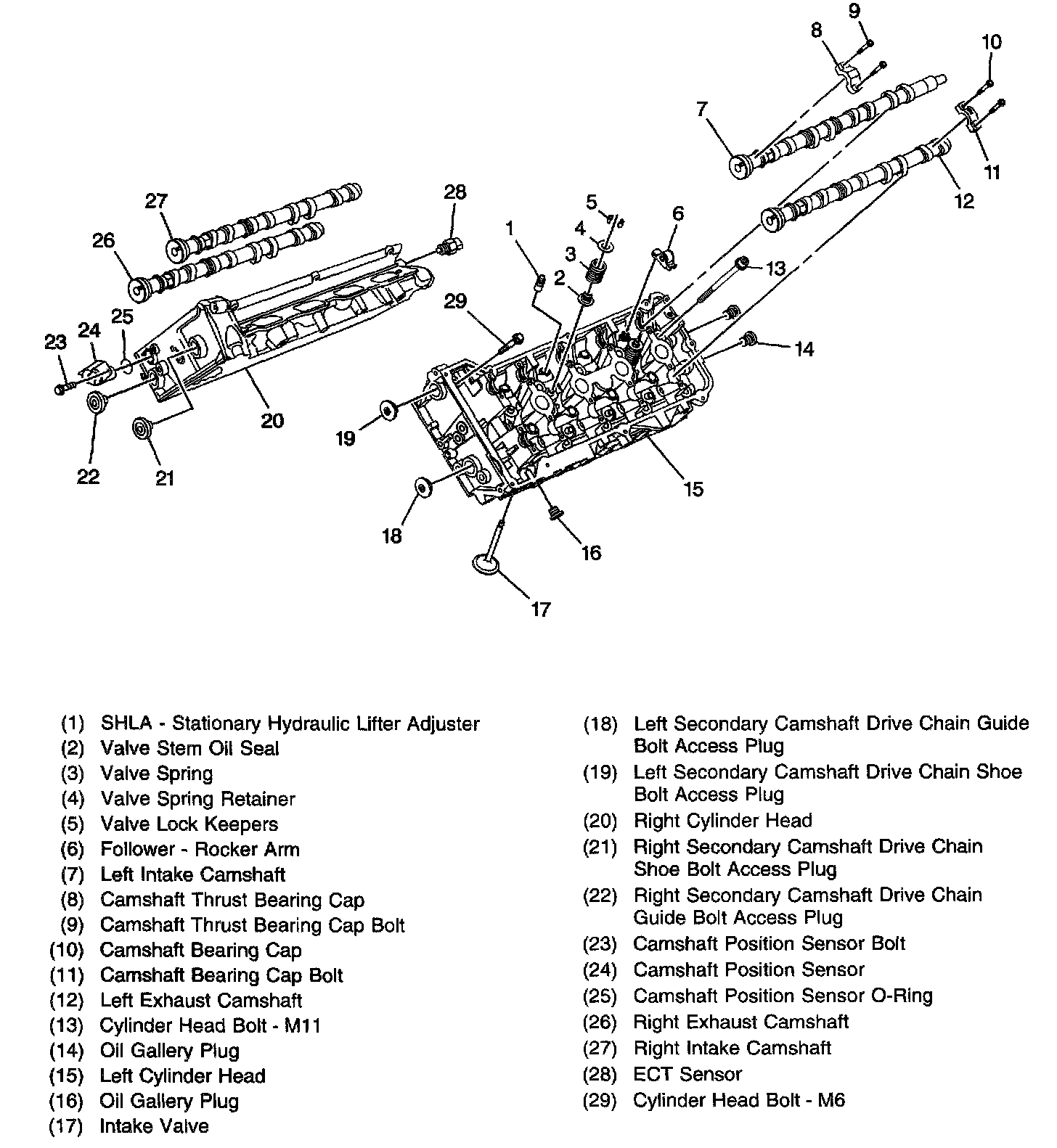

Cylinder Head Assemblies

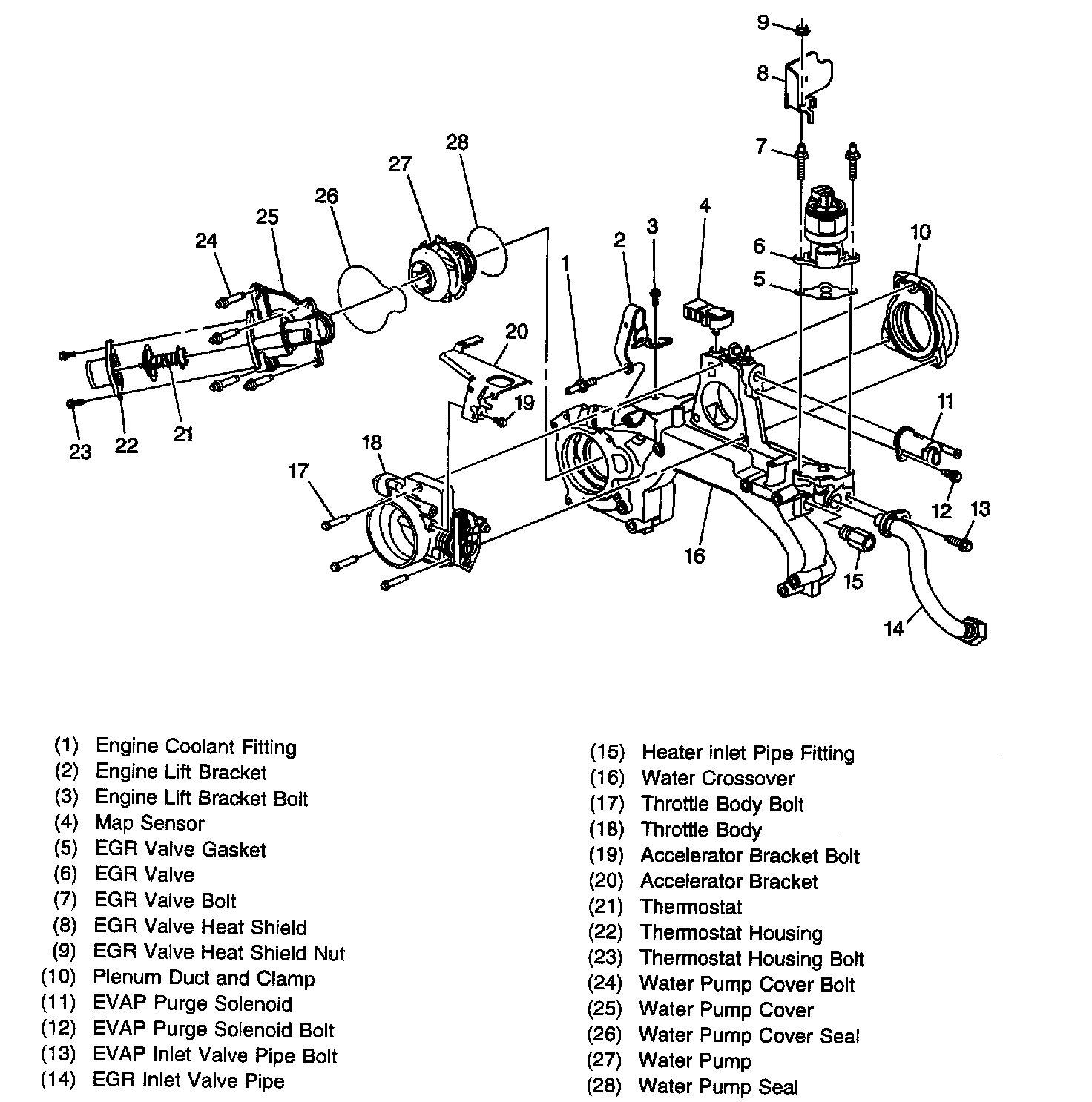

Water Crossover and Throttle Body Assembly

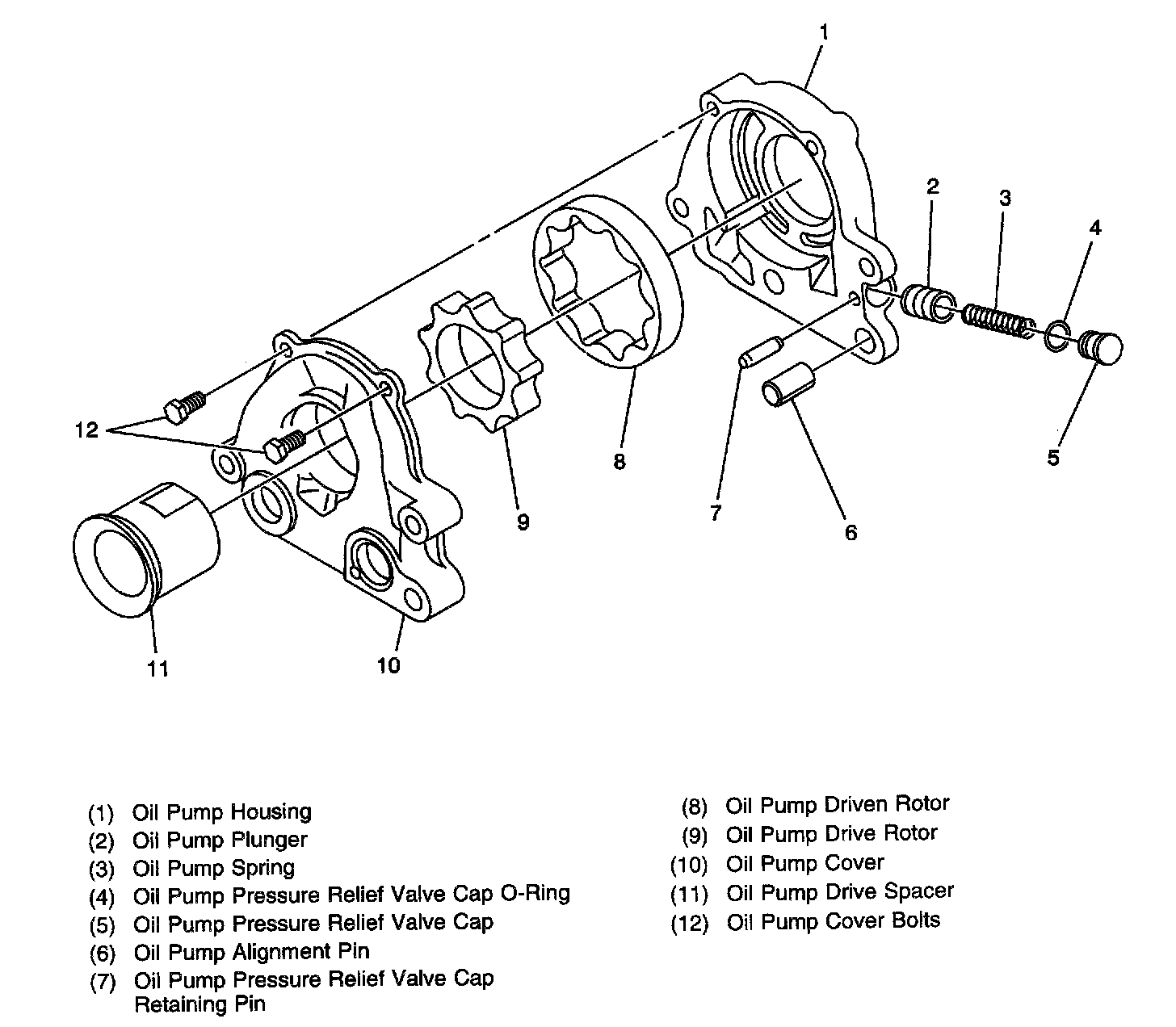

Oil Pump

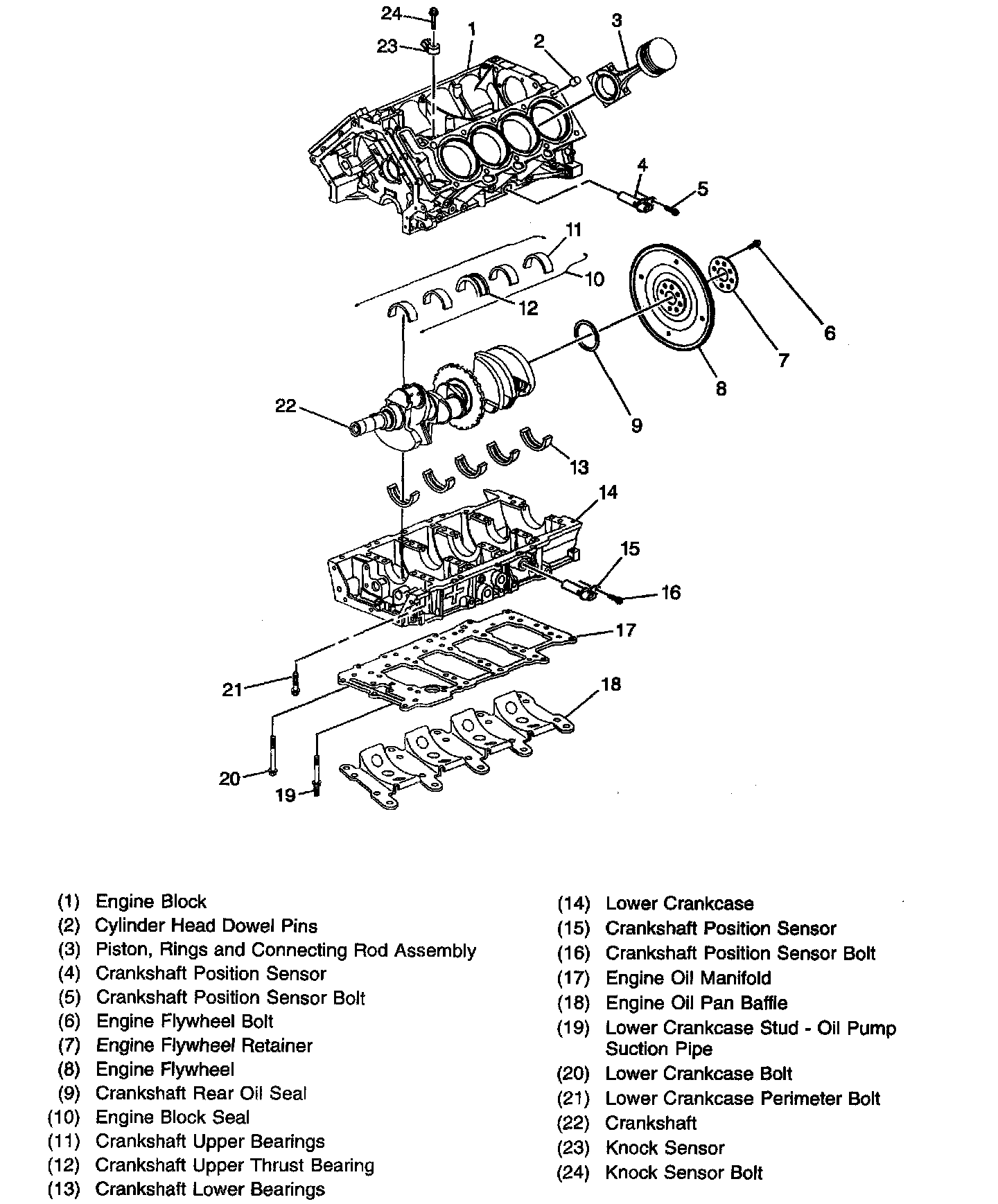

Engine Block Assembly

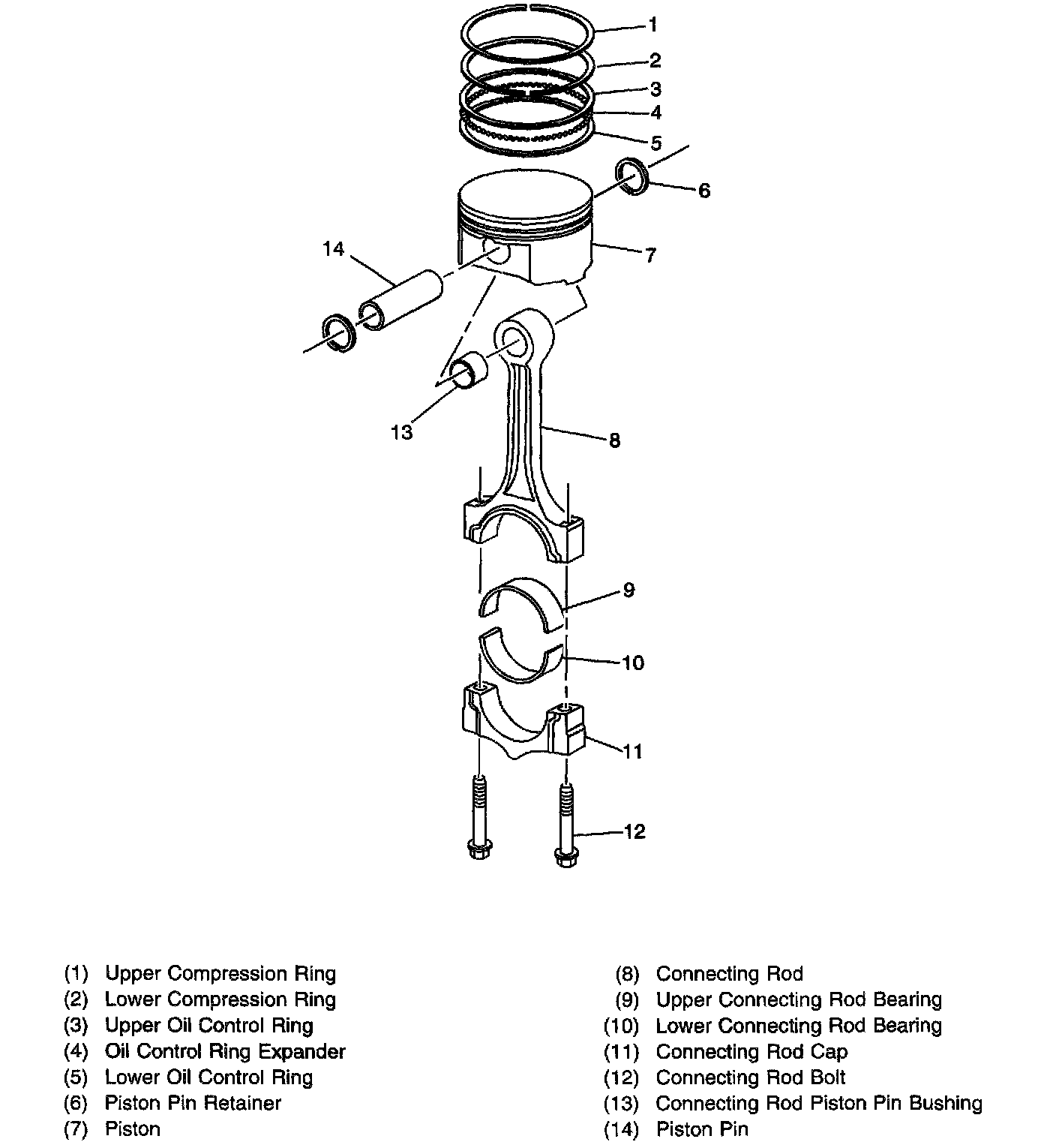

Piston, Rings, Bearing and Connecting Rod

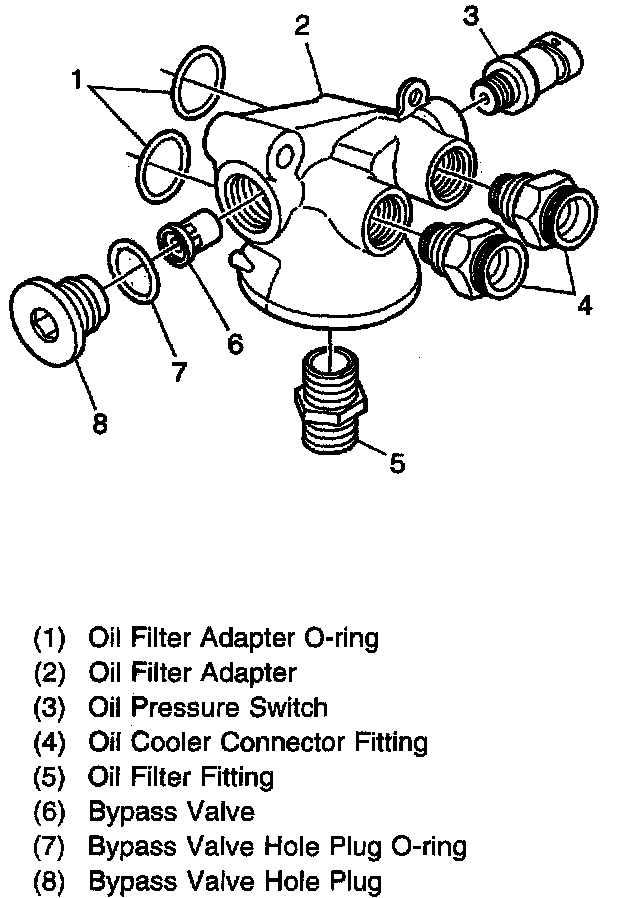

Oil Filter Adapter
Oil Filter Adapter with Oil Cooler
