Home >> Cadillac >> 2000 >> DeVille V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Lower Control Valve Body Assembly

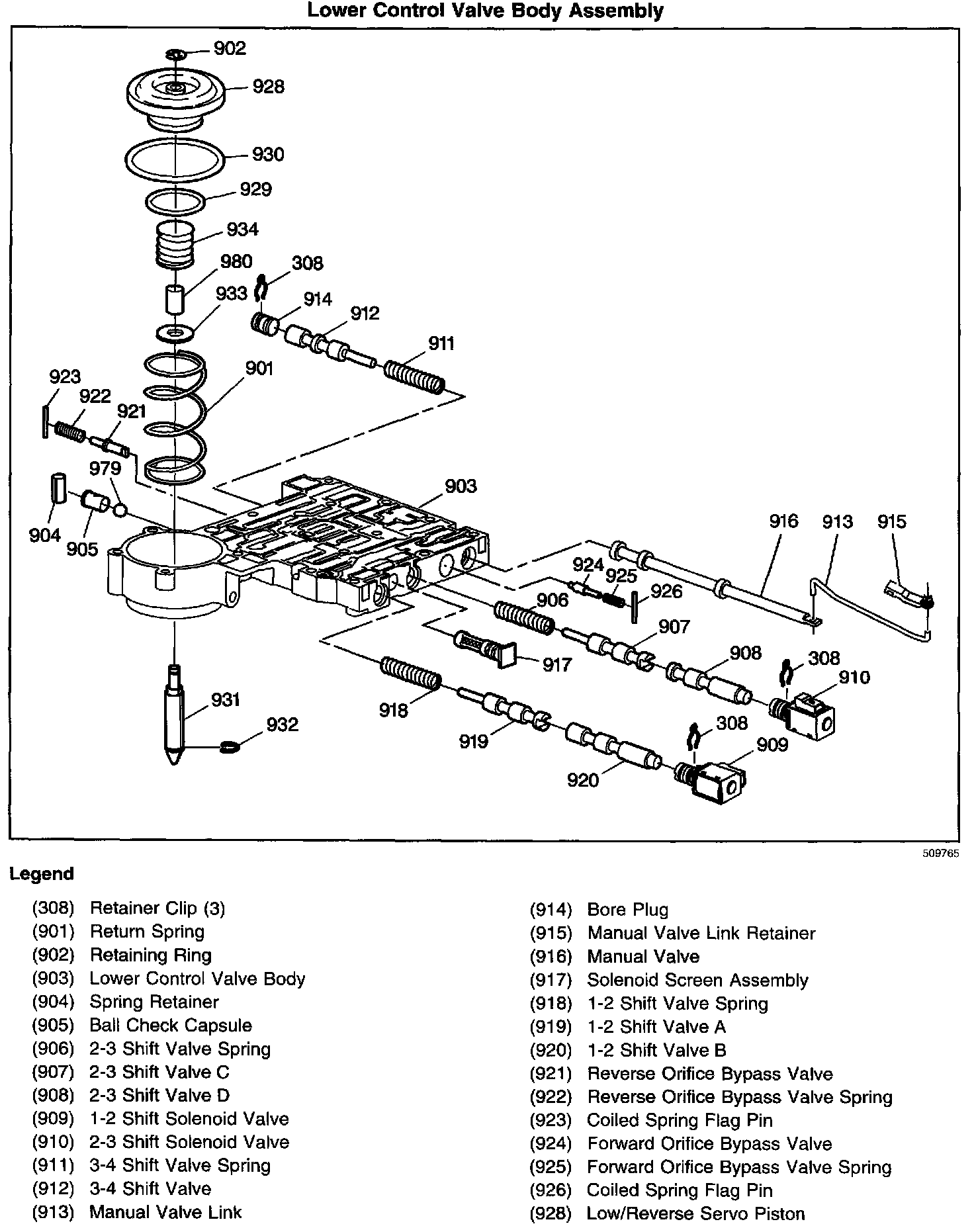

Lower Control Valve Body Assembly
