Lighting And Other Inputs And Outputs

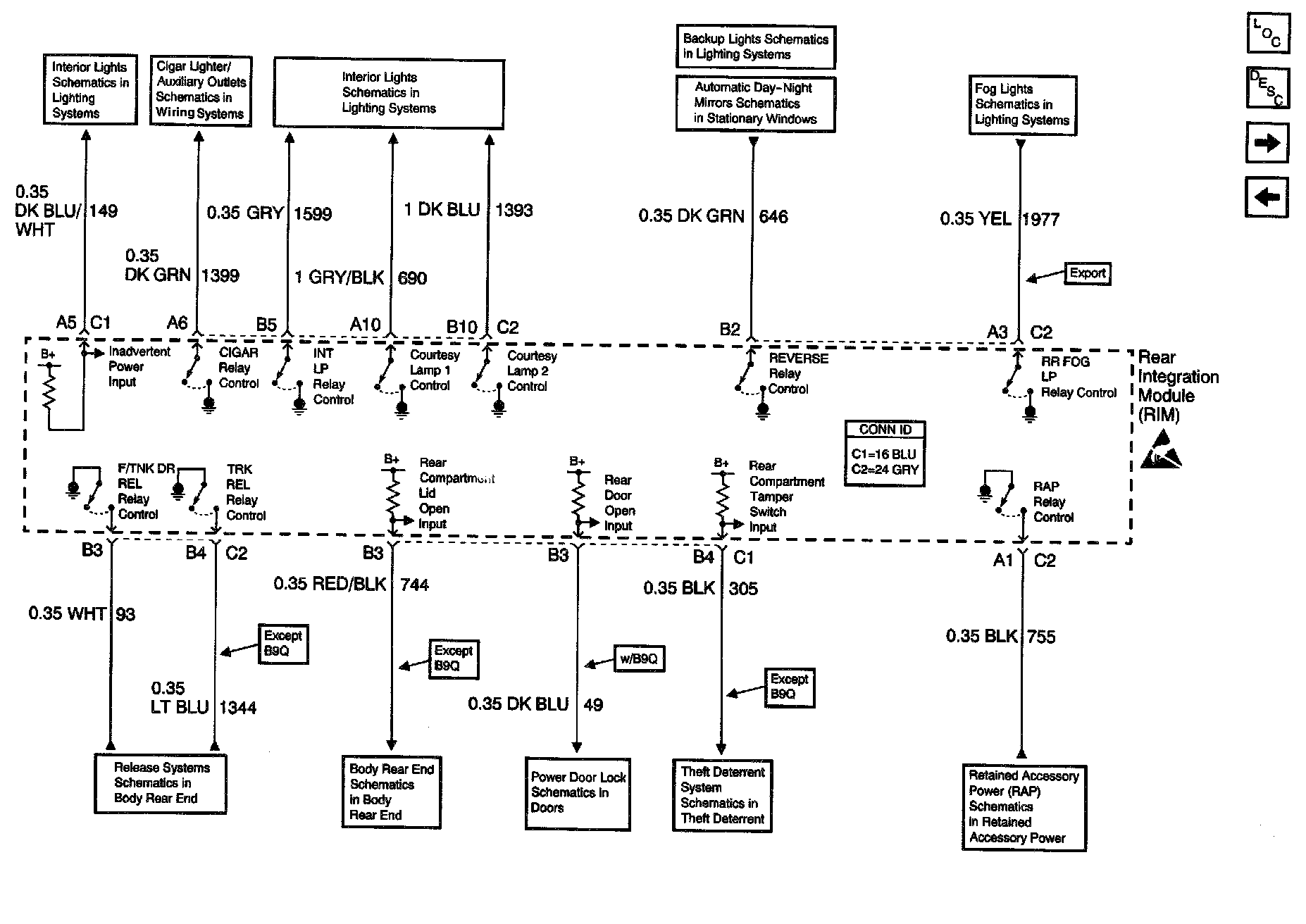

Body Control Module Schematics: Rear Integration Module (RIM) - Lighting And Other Inputs And Outputs:
