Air Bag Control Module
Air Bag Control Module

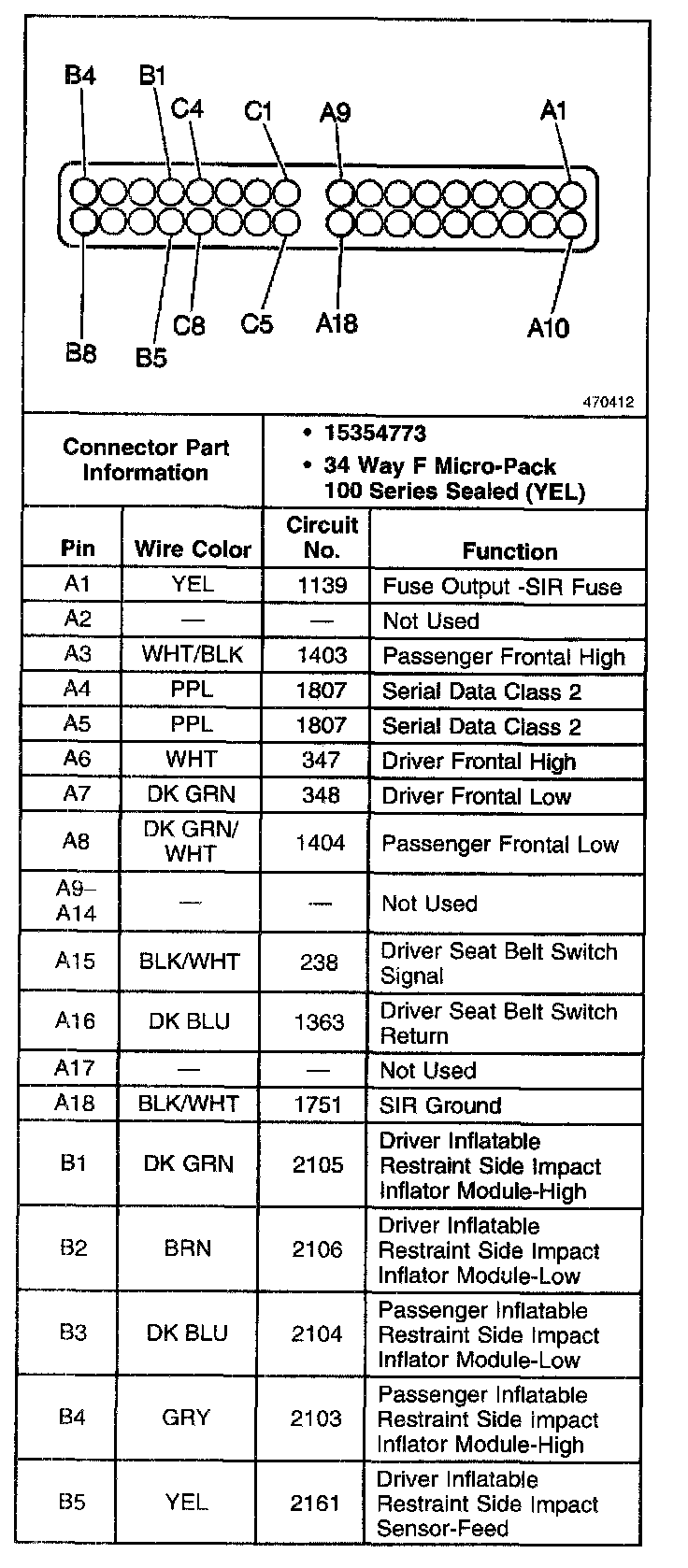

Inflatable Restraint Sensing and Diagnostic Module (SDM) (Part 1 of 2):

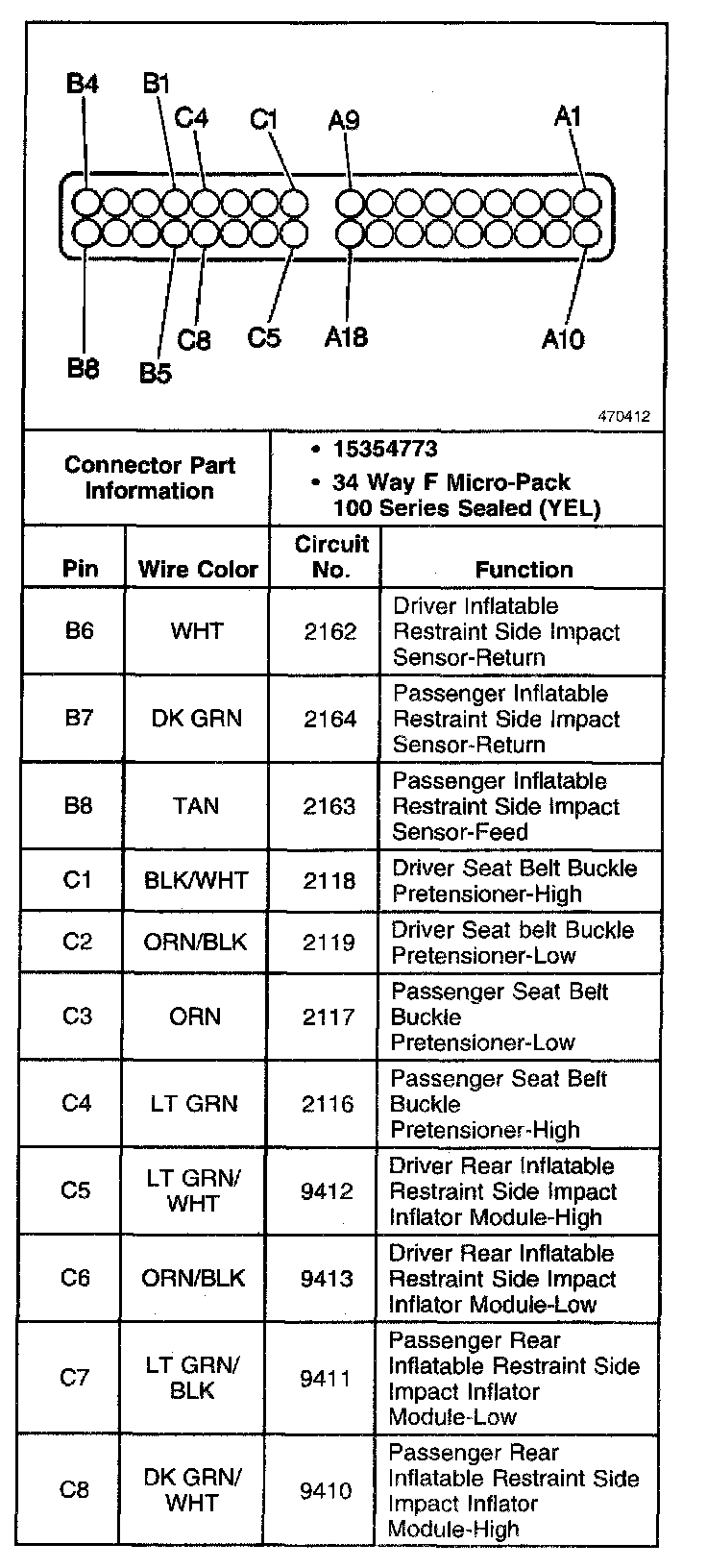

Inflatable Restraint Sensing and Diagnostic Module (SDM) (Part 2 of 2):
