Removal & Installation

Remove passenger's hush panel from below instrument panel. Disconnect DIM connectors. See Figure . Depress locking tab inward. See Fig 1 . With locking tab depressed, slide DIM module downward and remove DIM from bracket. To install, reverse removal procedure. After installation, DIM must be programmed. See PROGRAMMING  .

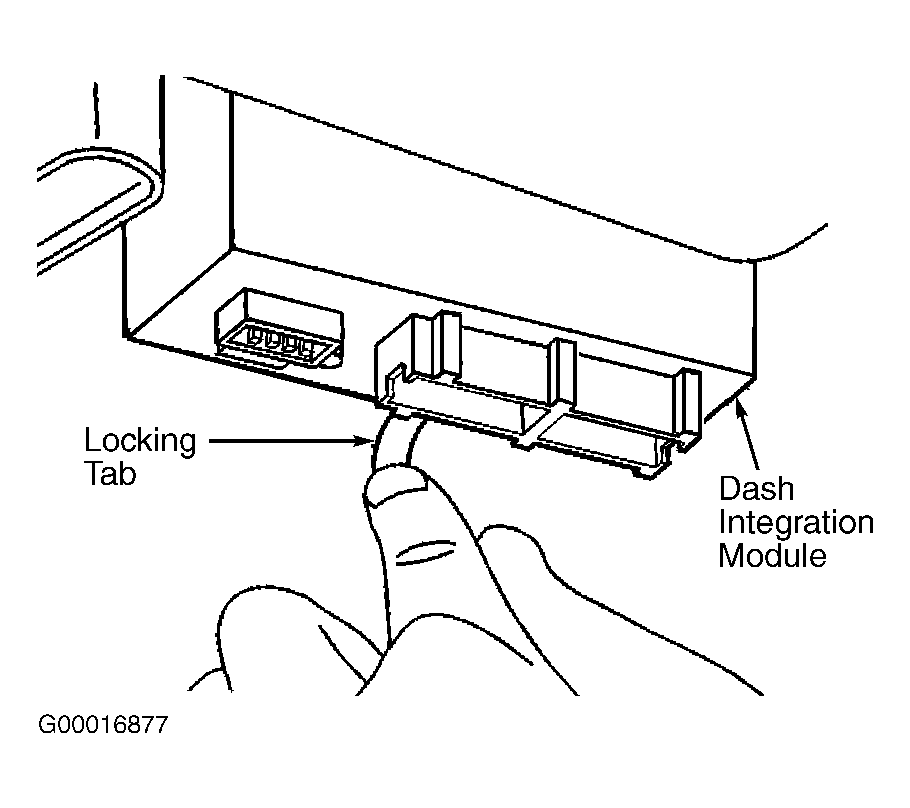

Fig 1: Removing Dash Integration Module

Courtesy of GENERAL MOTORS CORP.
