Home >> Cadillac >> 2000 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Locations

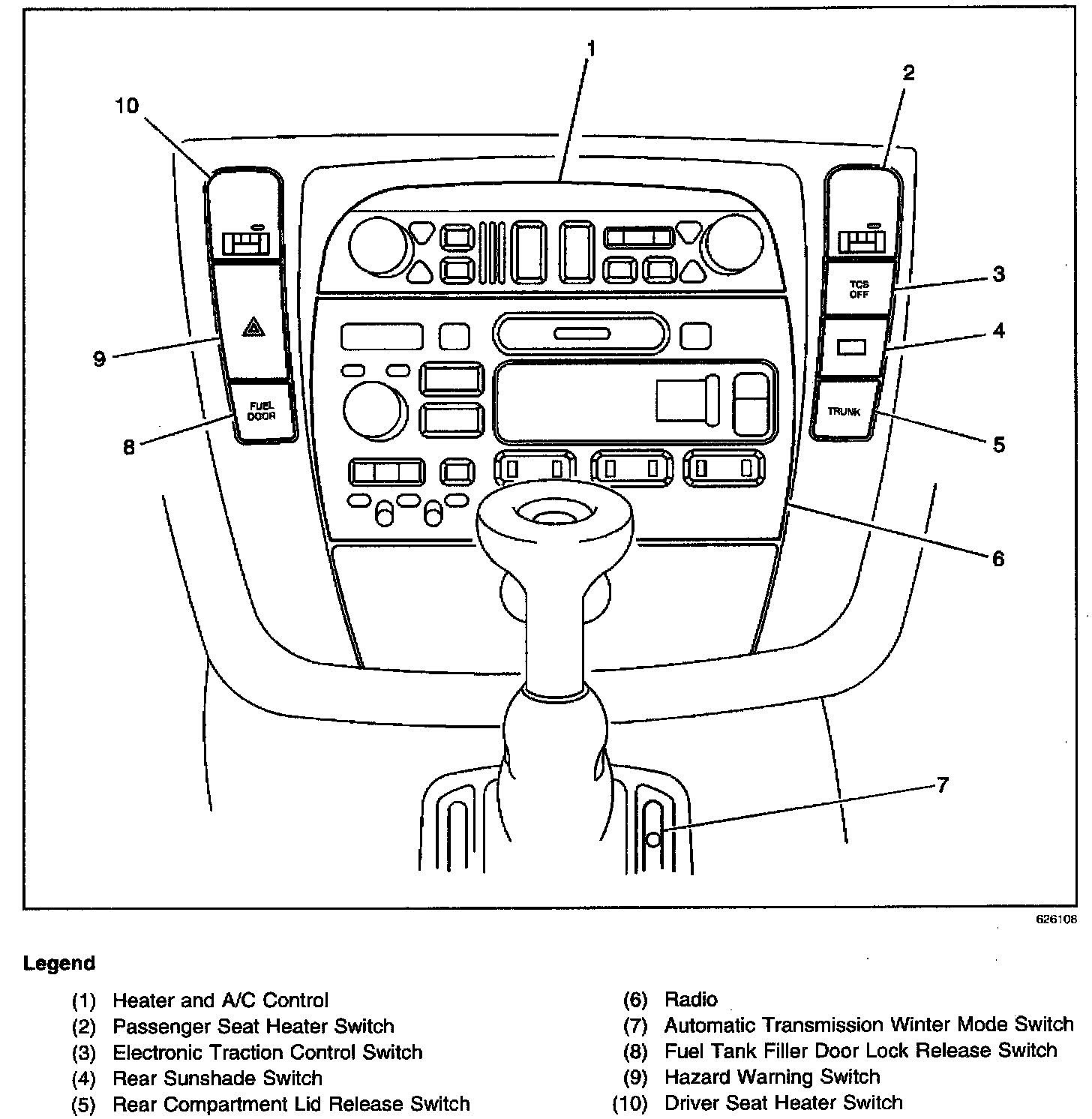

Control Assembly: Locations

Locations View:




Center of the I/P, above the radio
