Home >> Cadillac >> 1999 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> Panel Illumination Control Module >> Diagrams >> Instrument Panel Integration Module (IPM): C2

Instrument Panel Integration Module (IPM): C2

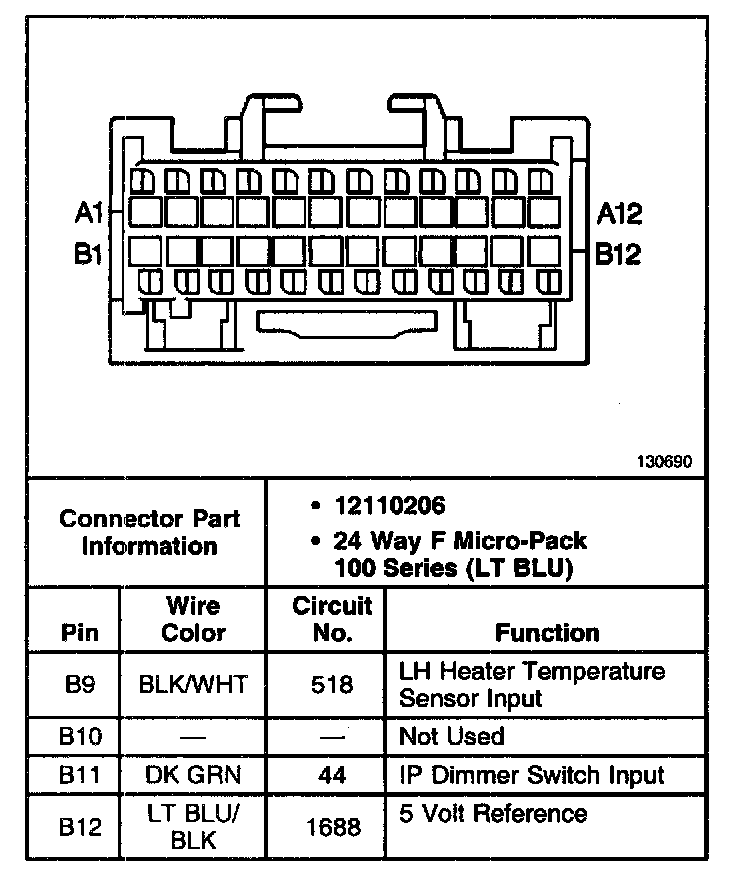

Instrument Panel Integration Module (IPM): C2 (Part 1 Of 2):

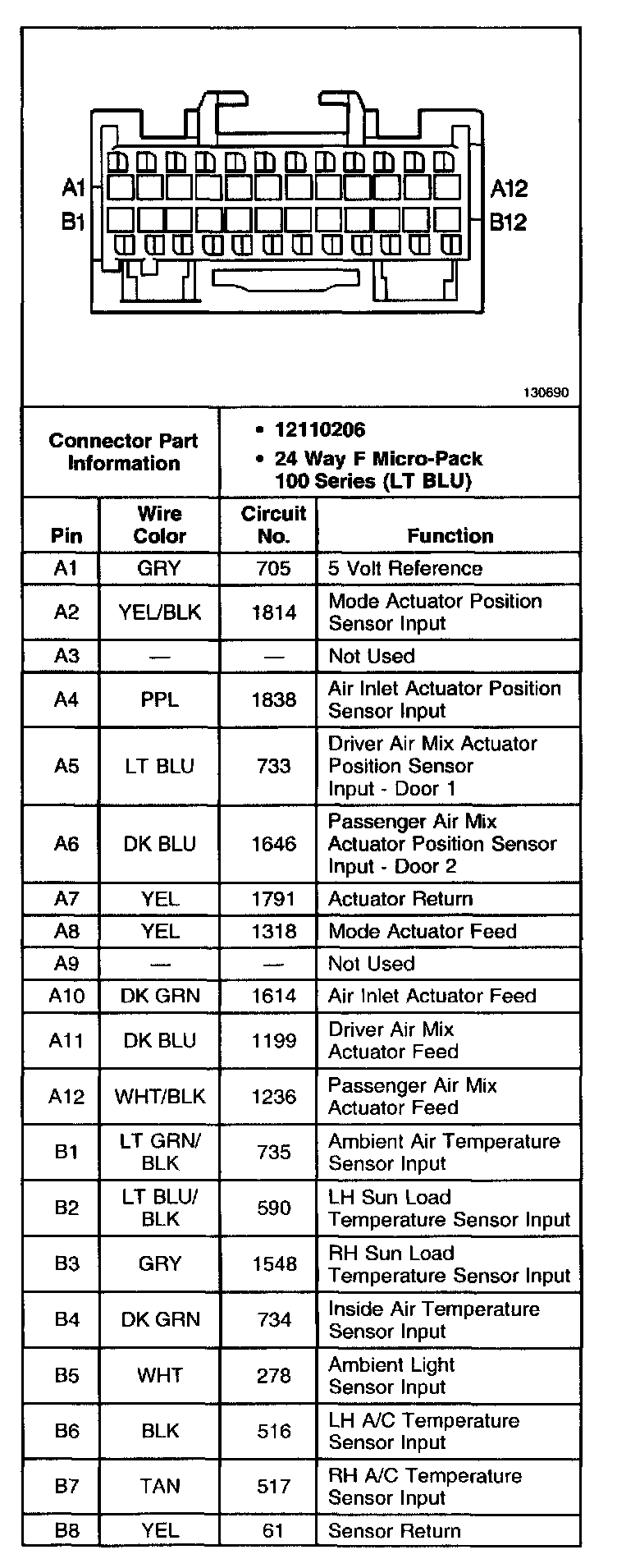

Instrument Panel Integration Module (IPM): C2 (Part 2 Of 2):
