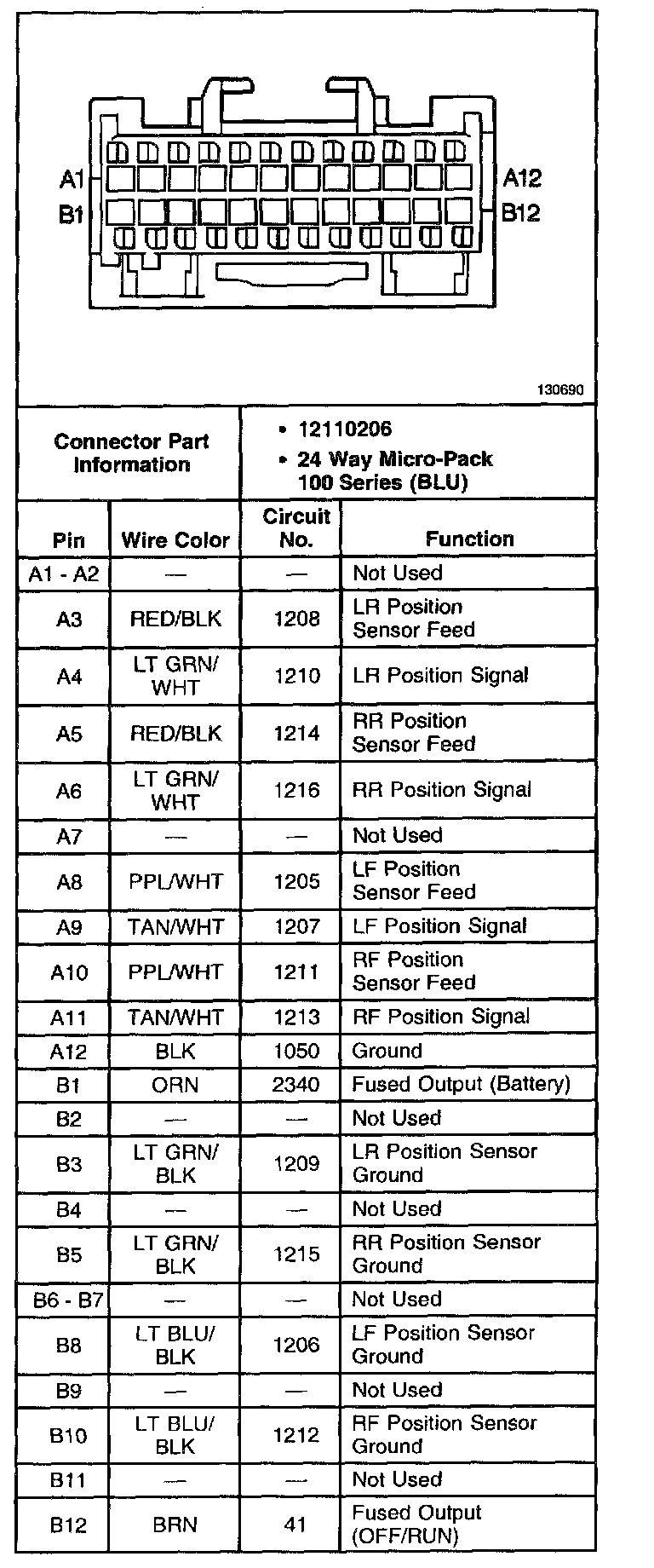

Home >> Cadillac >> 1999 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Suspension Control Module >> Continuously Variable Road Sensing Suspension (CVRSS) >> Module Connector C2
