Home >> Cadillac >> 1999 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Sunroof / Moonroof Module >> Sunroof Control Module: C1

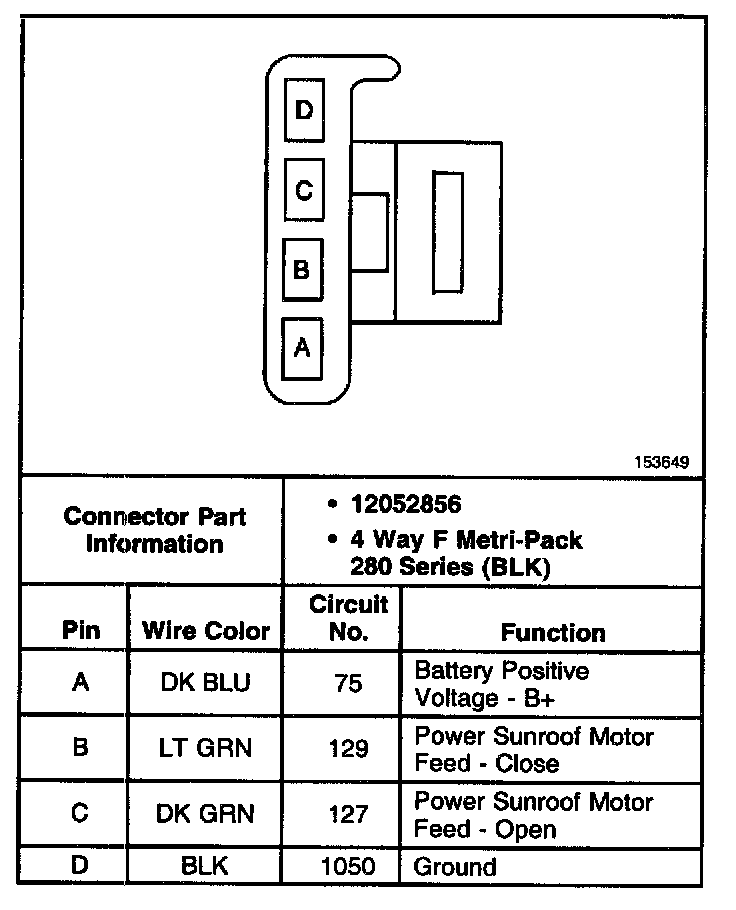

Sunroof Control Module: C1

Sunroof Control Module: C1:
