Home >> Cadillac >> 1999 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> Power Seat Control Module >> Passenger Lumbar Message Module

Passenger Lumbar Message Module

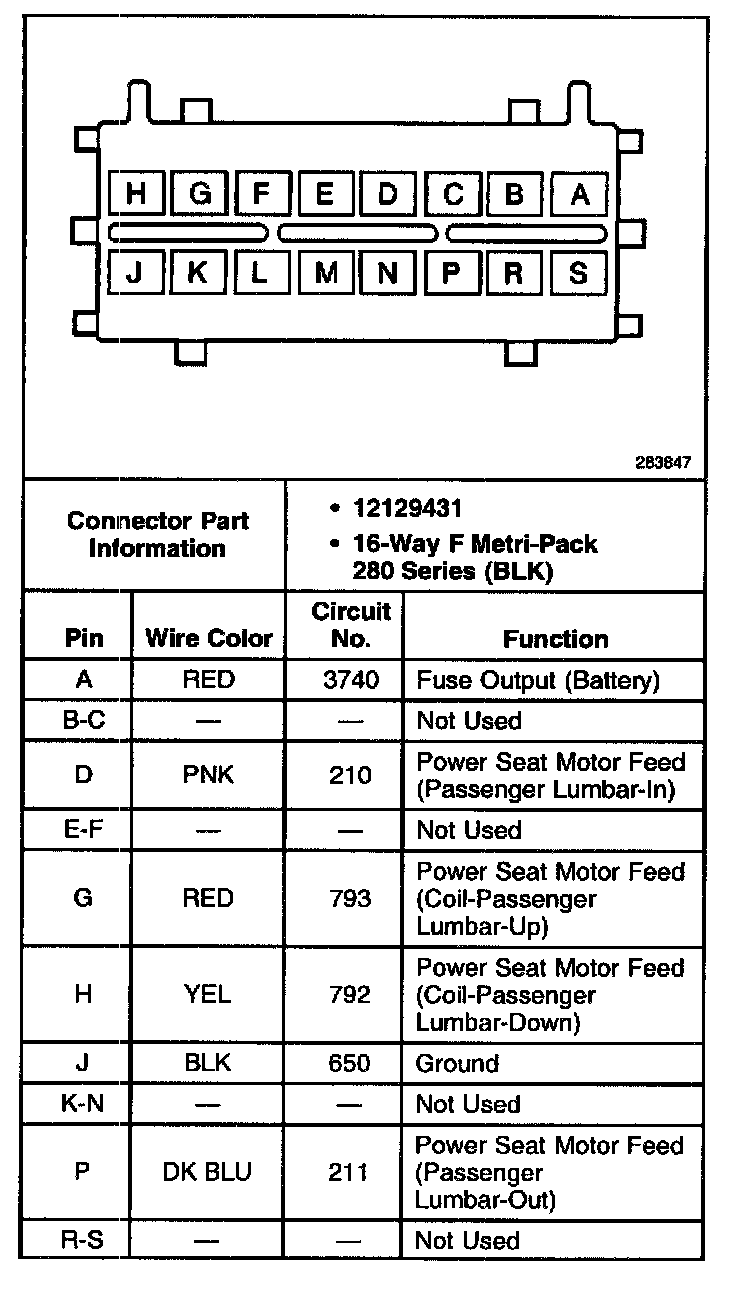

Passenger Lumbar Massage Module:
