Home >> Cadillac >> 1999 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> Power Seat Control Module >> Driver Lumbar Message Module

Driver Lumbar Message Module

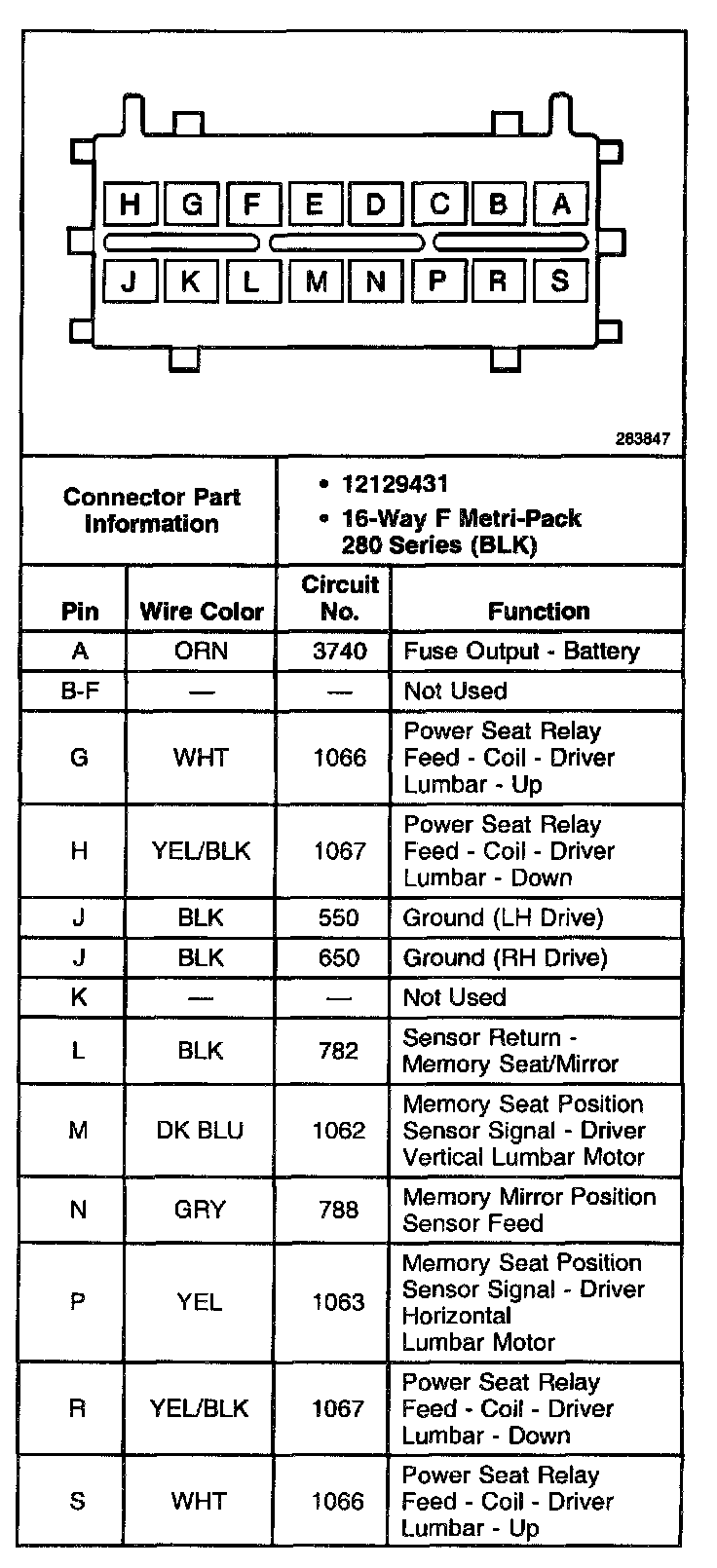

Driver Lumbar Massage Module:
