Home >> Cadillac >> 1999 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> Power Seat Control Module >> Adaptive Lumbar Module, RH

Adaptive Lumbar Module, RH

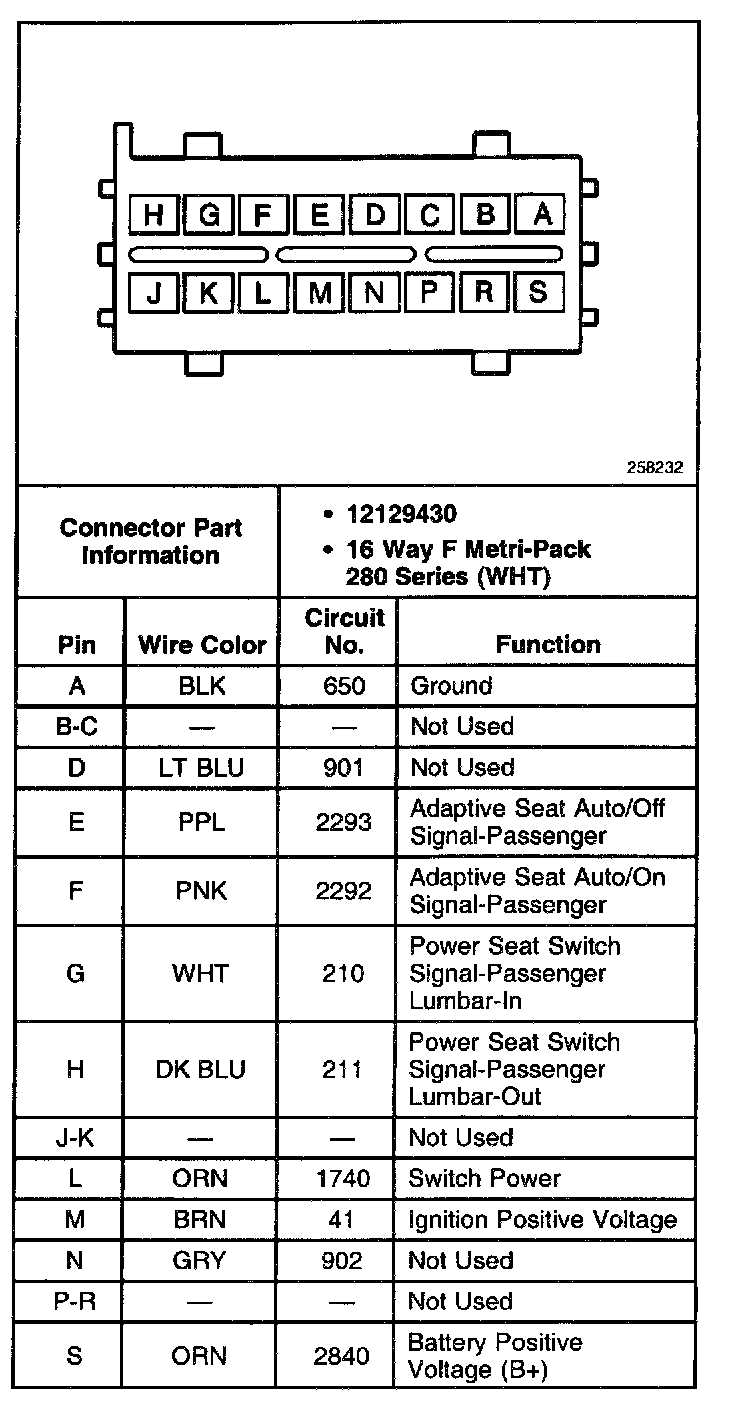

RH Adaptive Lumbar Module:
