Home >> Cadillac >> 1999 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> Power Seat Control Module >> Adaptive Lumbar Module, LH

Adaptive Lumbar Module, LH

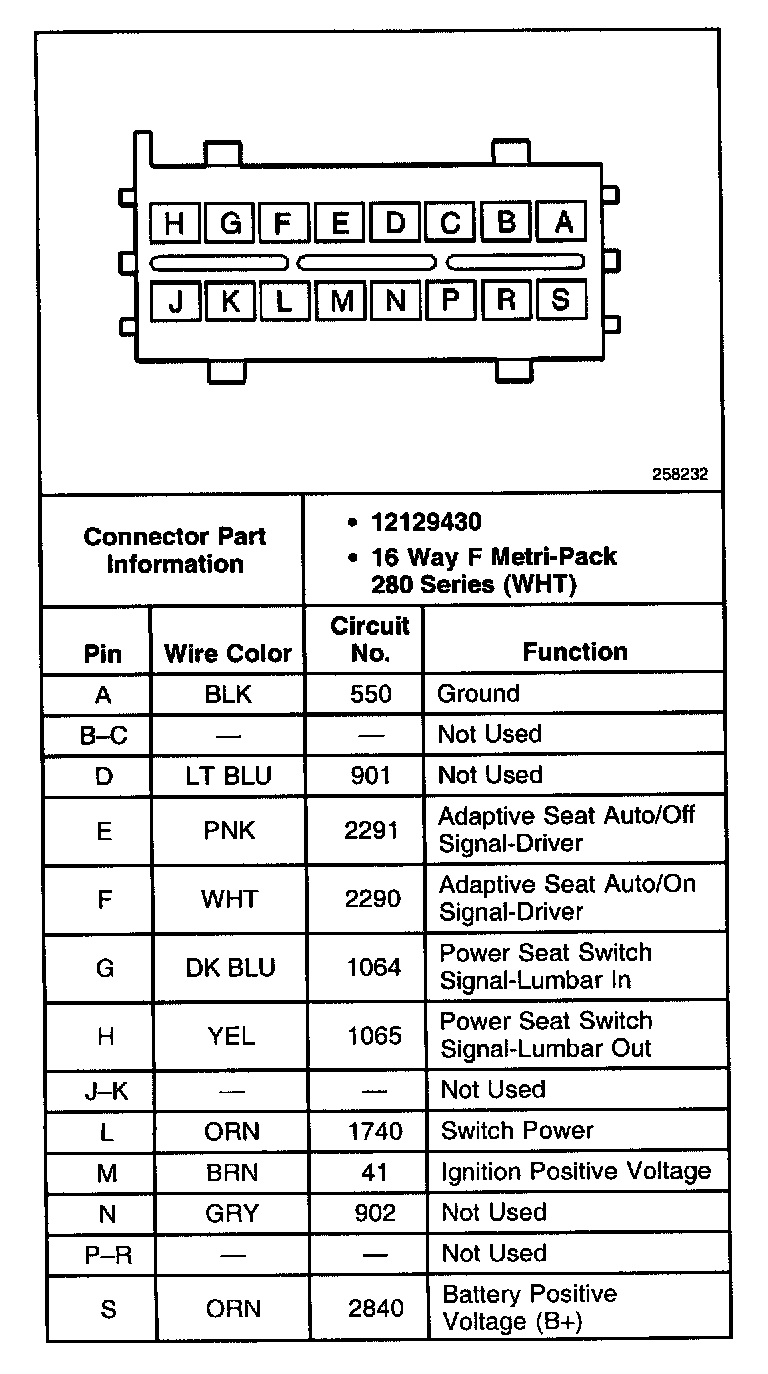

LH Adaptive Lumbar Module:
