Home >> Cadillac >> 1999 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> Door Module (RFDM): C1, RH Front

Door Module (RFDM): C1, RH Front

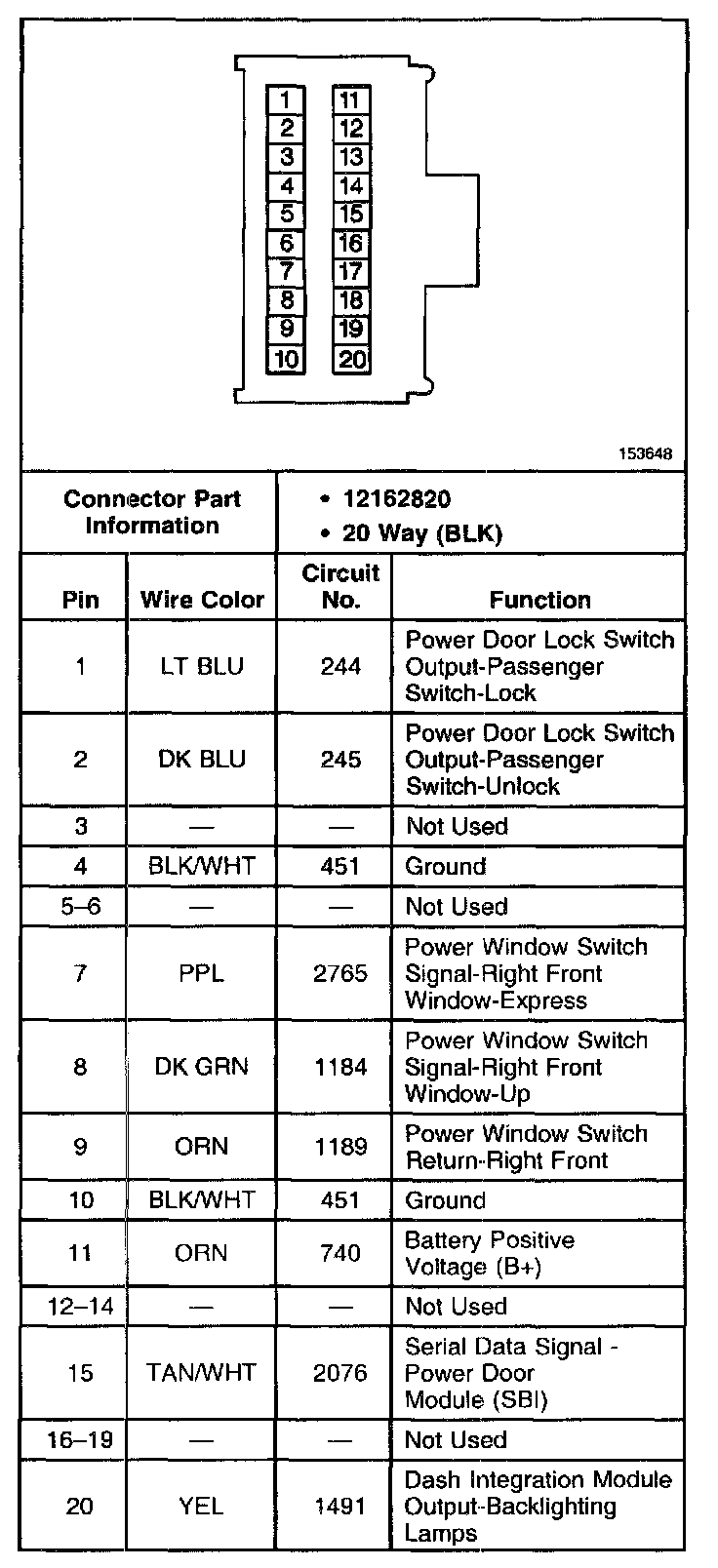

RH Front Door Module (RFDM): C1:
