LEMON Manuals: Even more car manuals for everyone
Home >> Cadillac >> 1999 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antitheft and Alarm Systems >> Alarm Module, (Vehicle Antitheft)

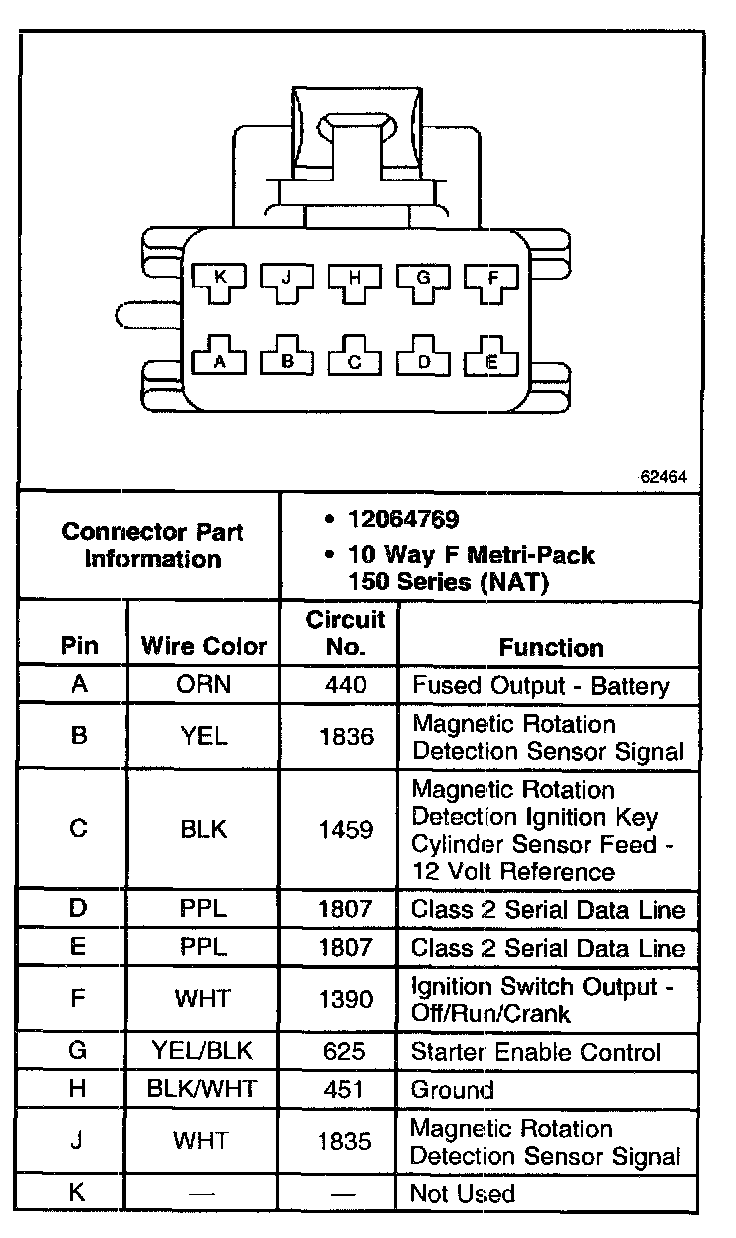

Alarm Module, (Vehicle Antitheft)

PASS-Key(R) III Theft Deterrent Module:
