Home >> Cadillac >> 1999 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antilock Brakes / Traction Control Systems >> Traction Control Module

Traction Control Module

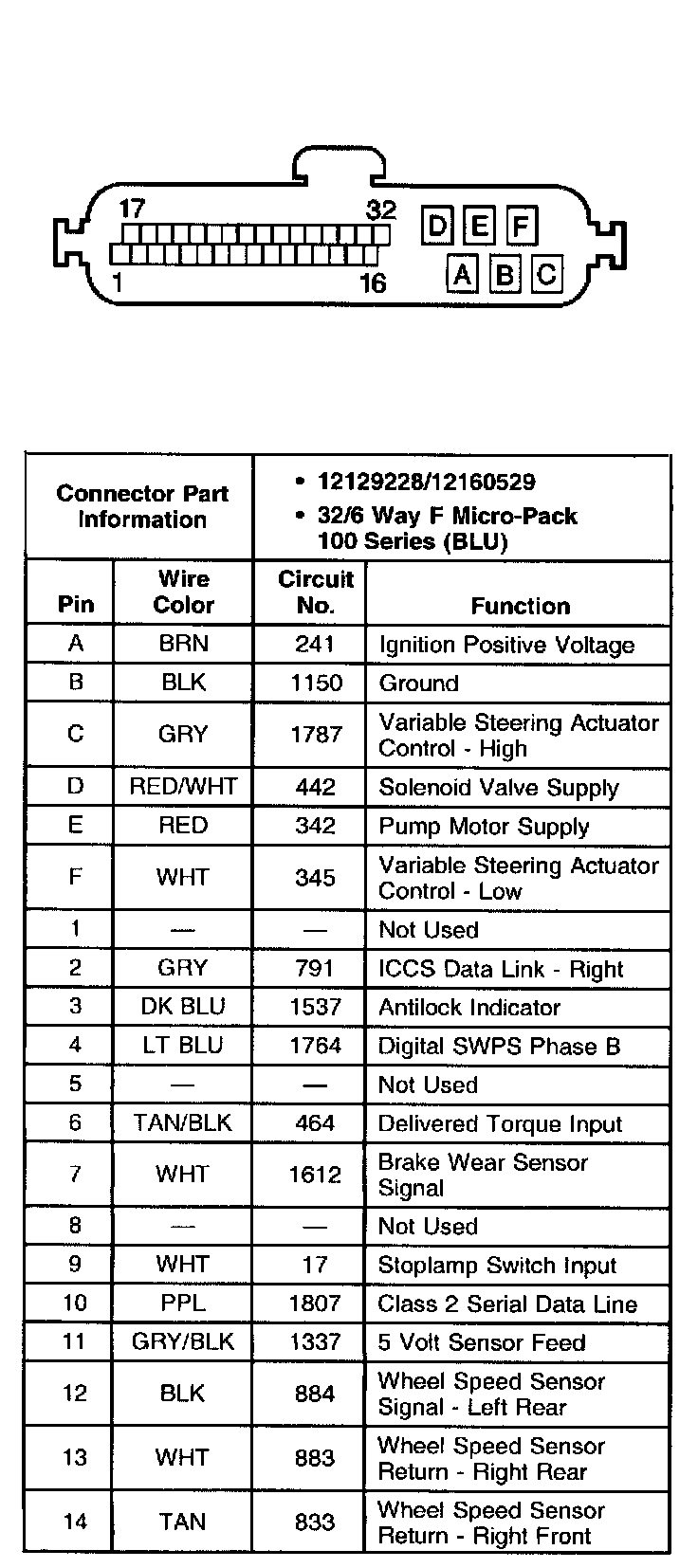

Part 1 Of 2:

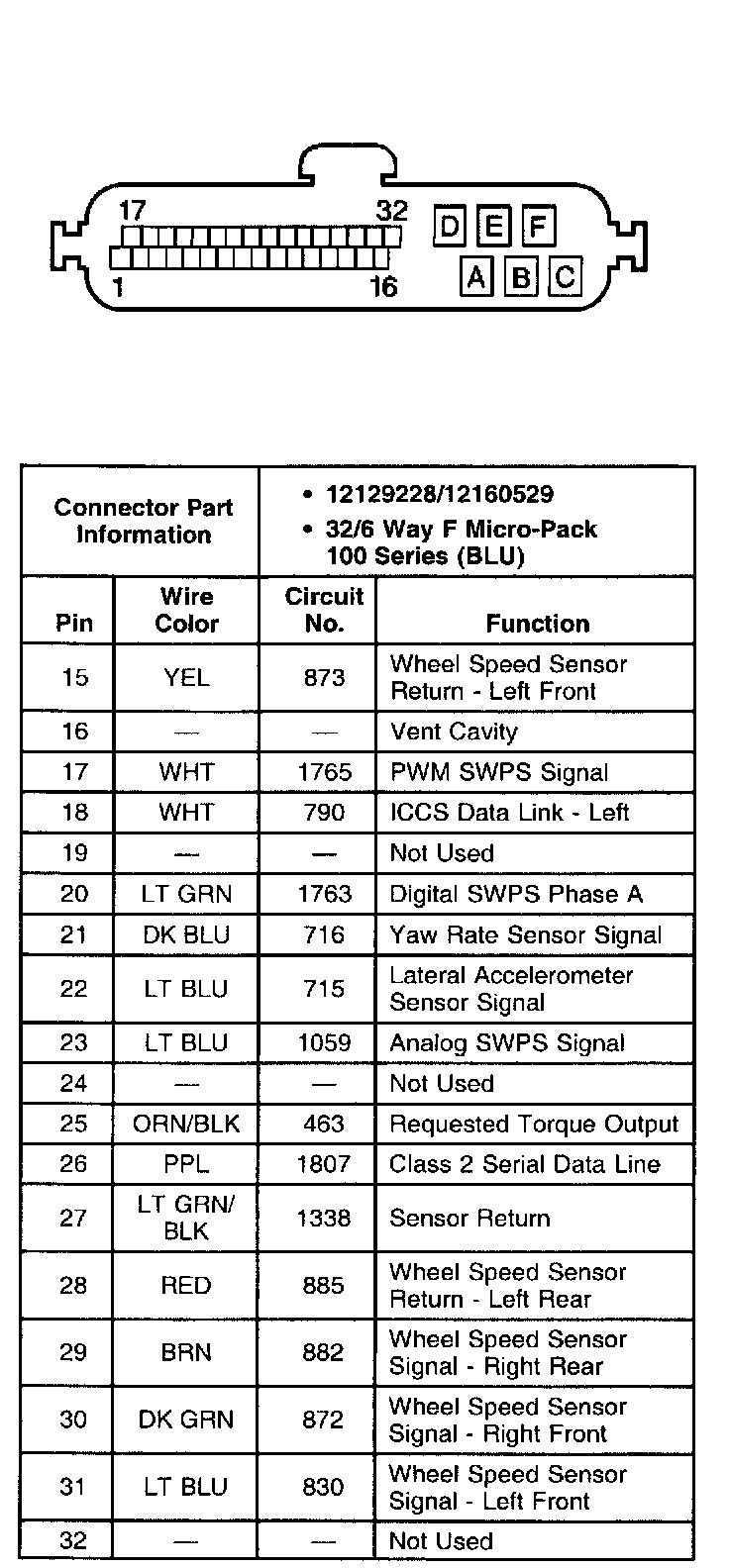

Part 2 Of 2:
