Home >> Cadillac >> 1999 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Cruise Control >> Diagrams >> Electrical Diagrams >> Cruise Control Module Inputs and Outputs

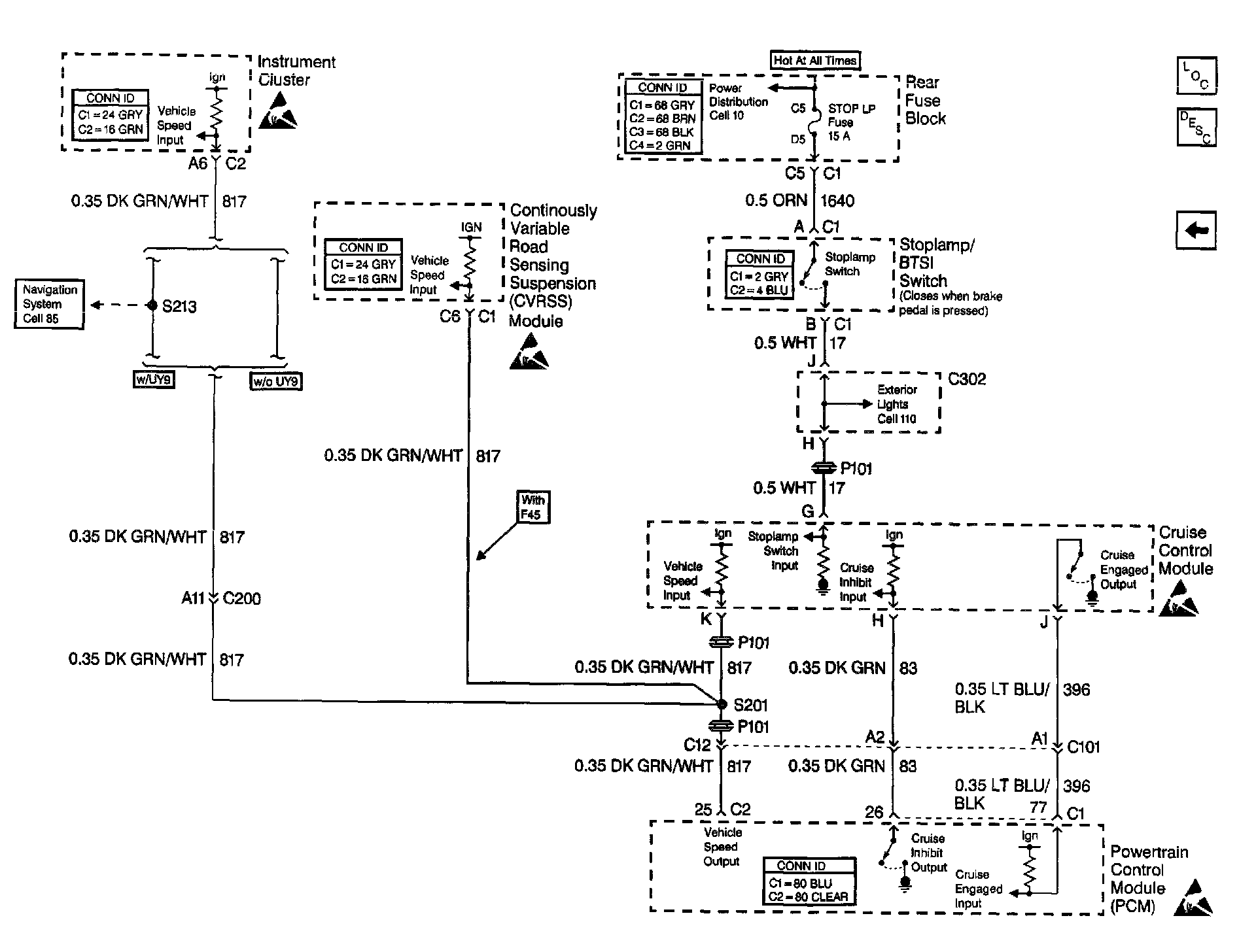

Cruise Control Module Inputs and Outputs

Cruise Control Schematics: Cruise Control Module Inputs And Outputs:
