Home >> Cadillac >> 1998 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> Instrument Panel Control Module >> Locations >> Dash Integration Module (Dim)

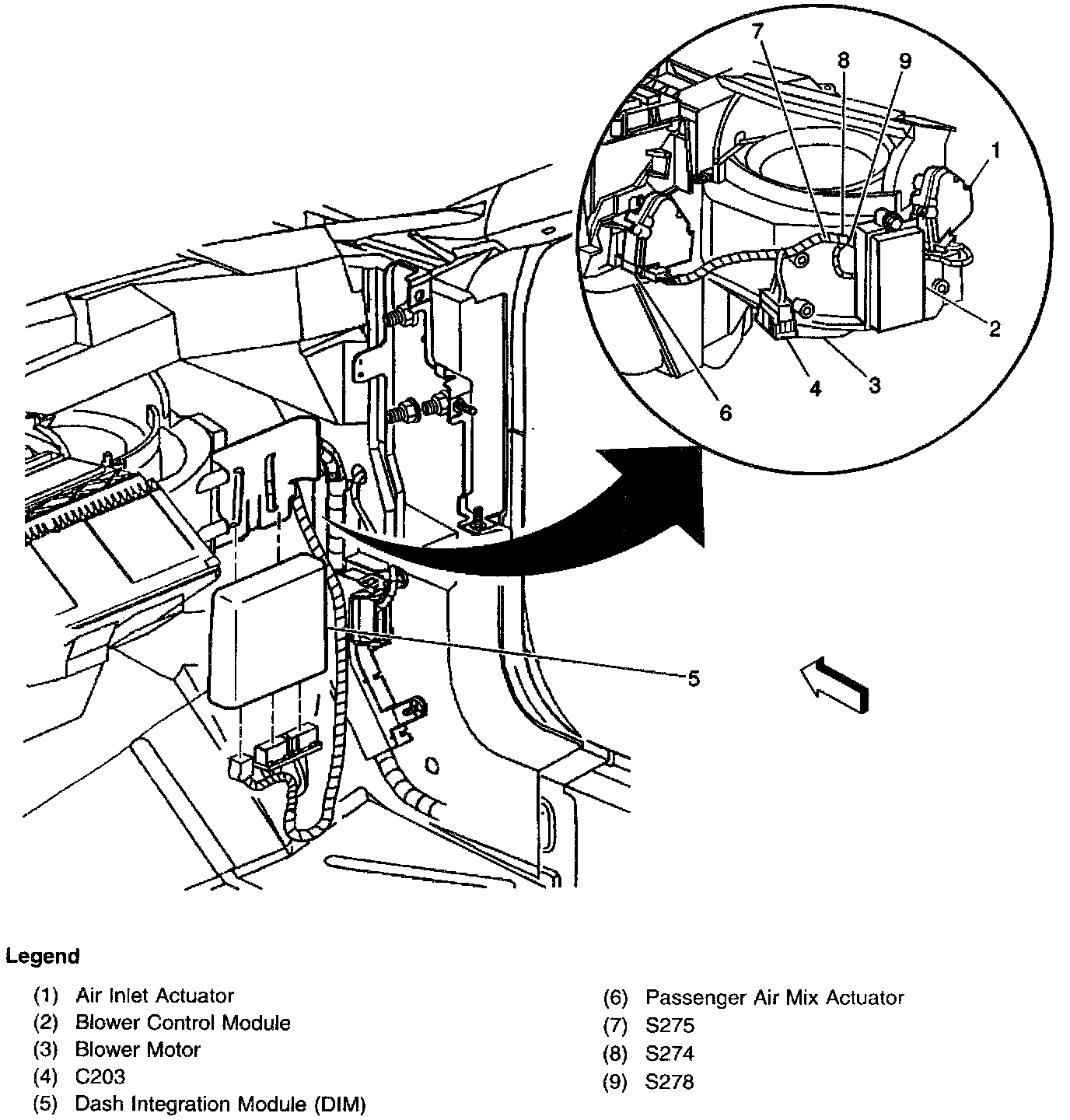

Dash Integration Module (Dim)

Passenger Compartment, Right Side Below The IP:





Right side of the instrument panel, near the blower motor
