C2

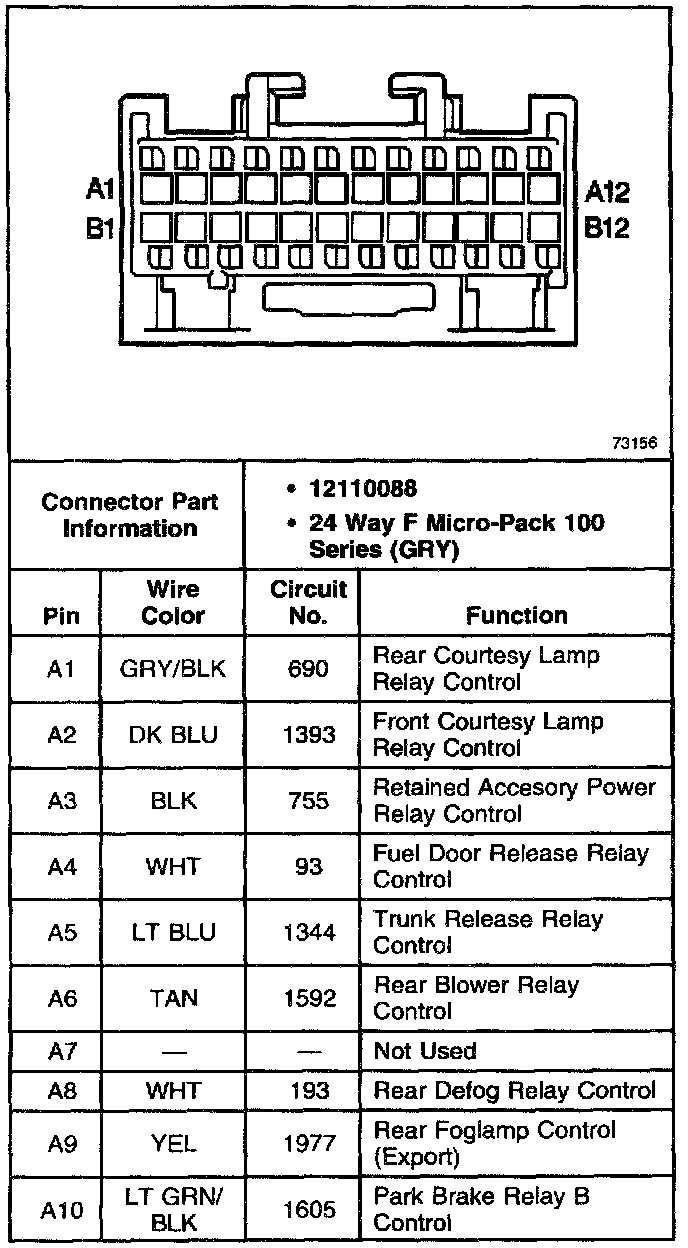

Rear Integration Module (RIM): C2 (Part 1 Of 2):

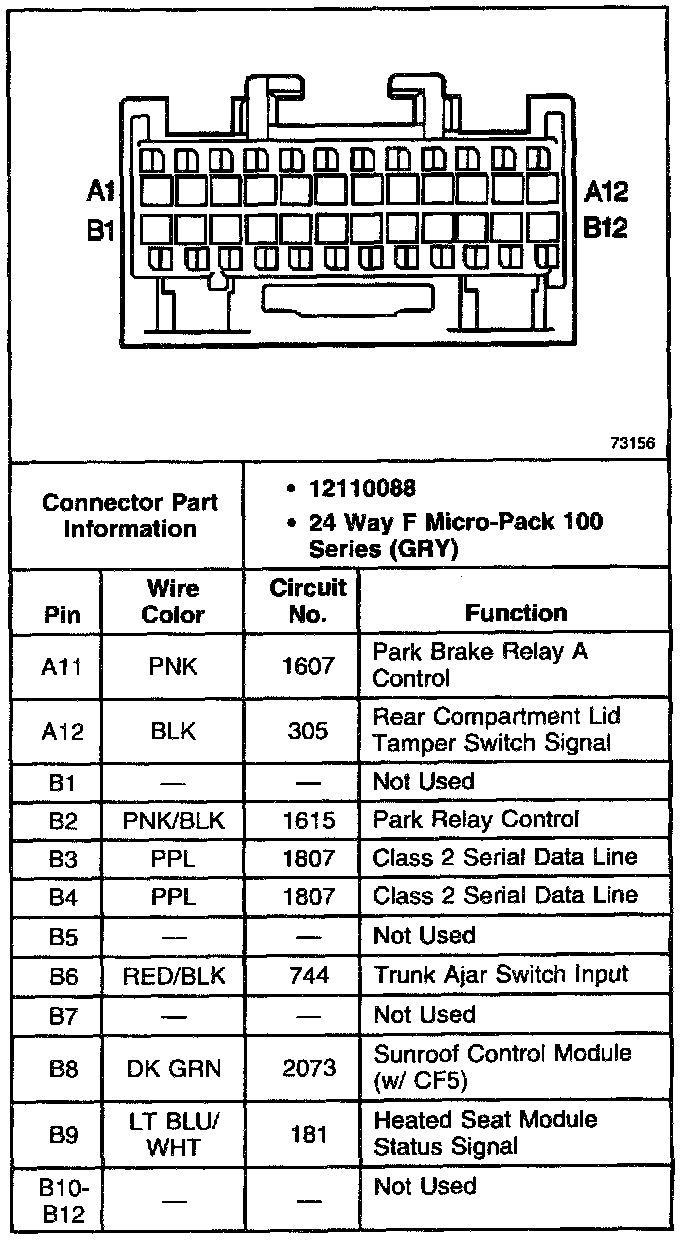

Rear Integration Module (RIM): C2 (Part 2 of 2):
