Keyless Entry Module: Locations

Rear Compartment:

Rear Compartment:

Rear Compartment:

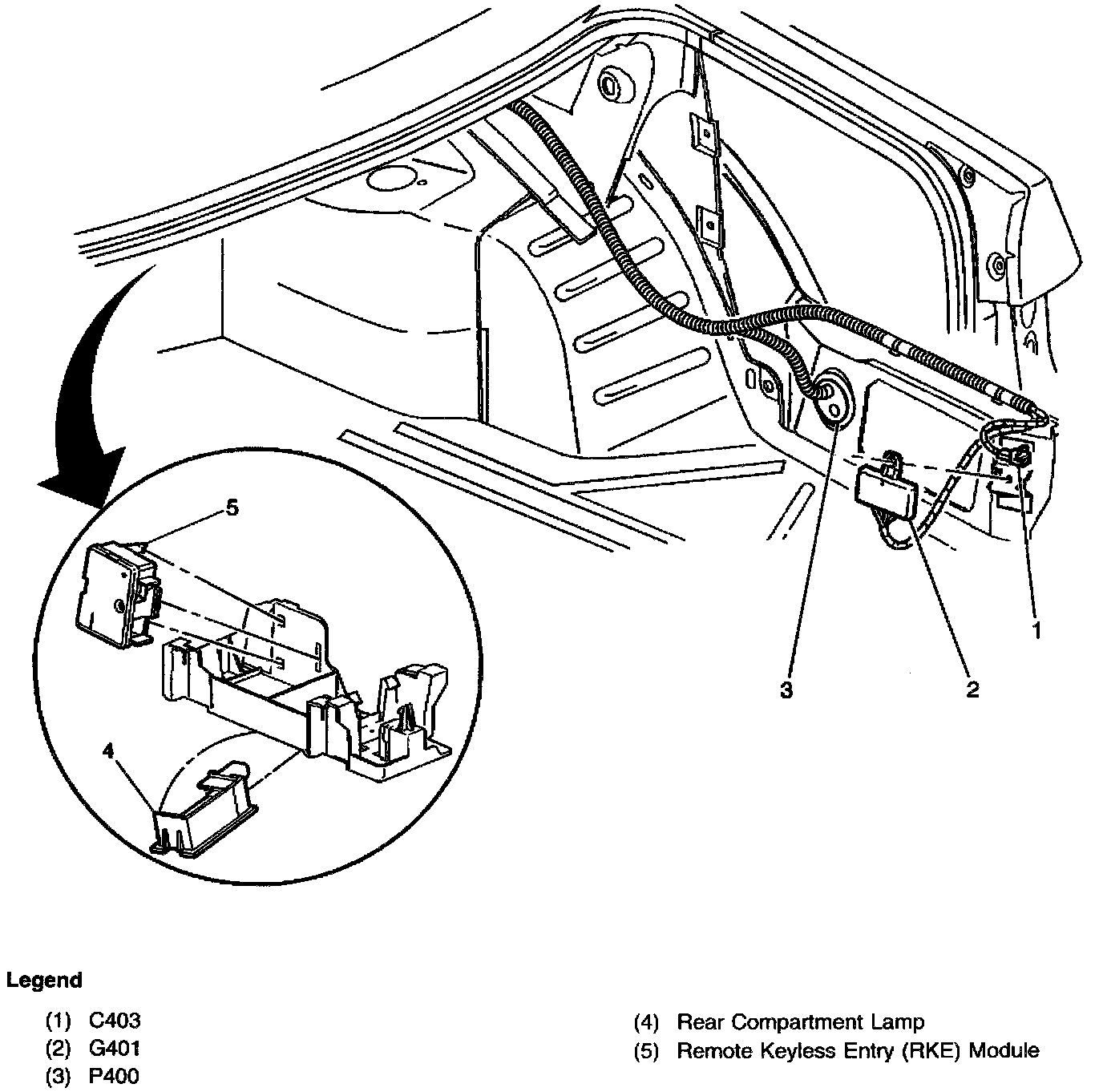

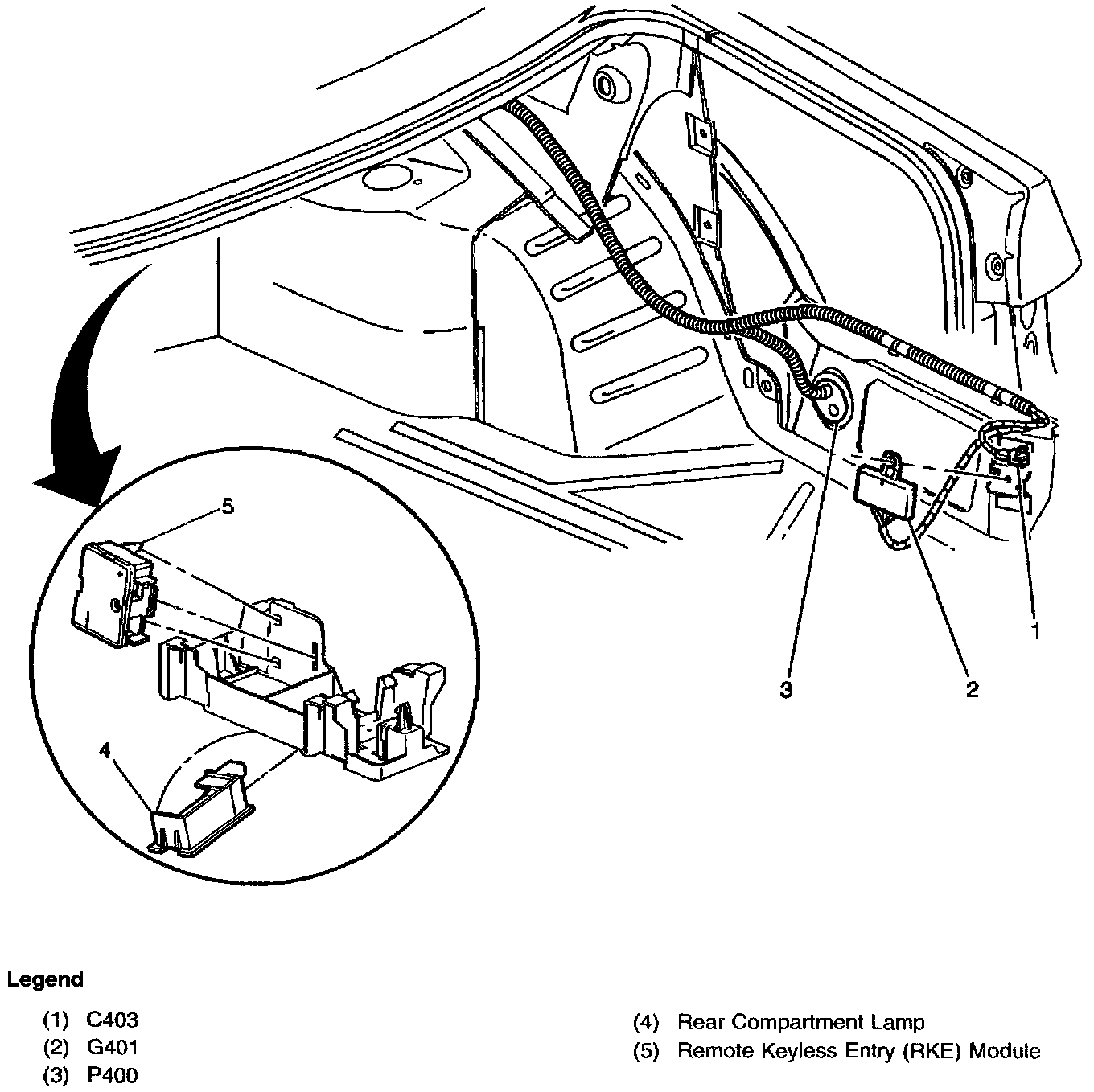

Center front of the Rear compartment, under the package shelf

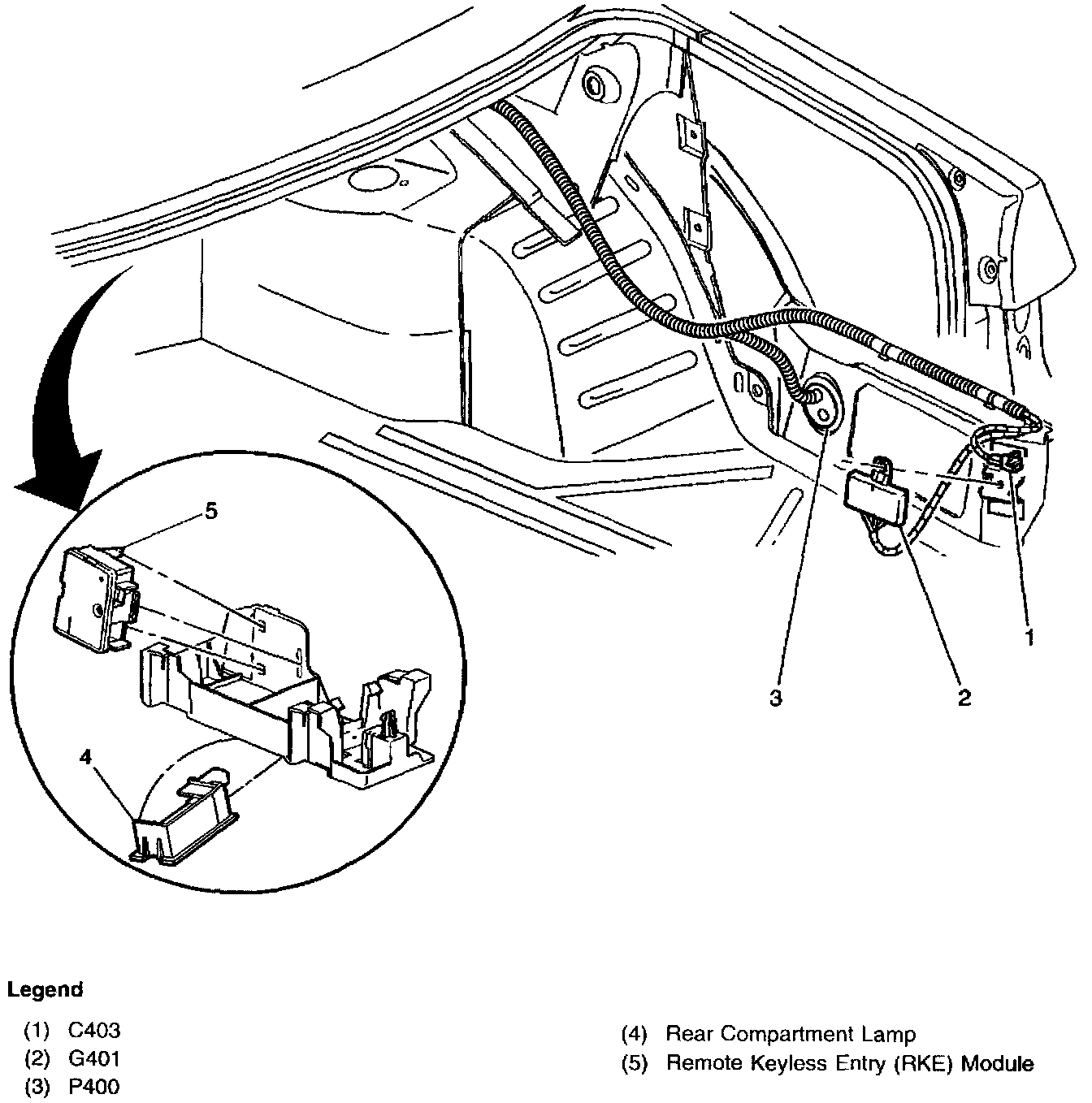

Front center of the rear compartment, near the rear compartment lamp
