Electrical Symbols

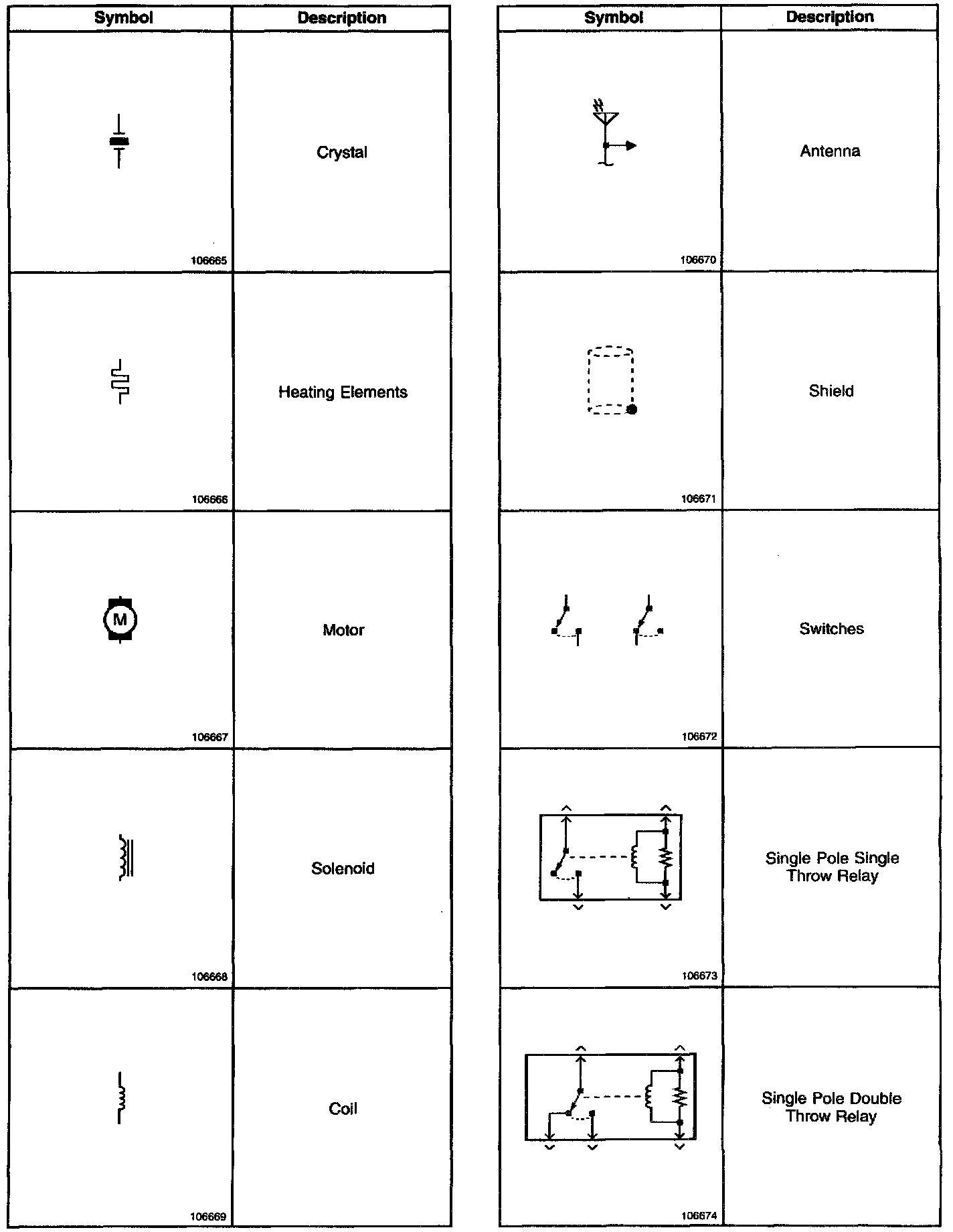

Electrical Symbols (Part 1 of 4):

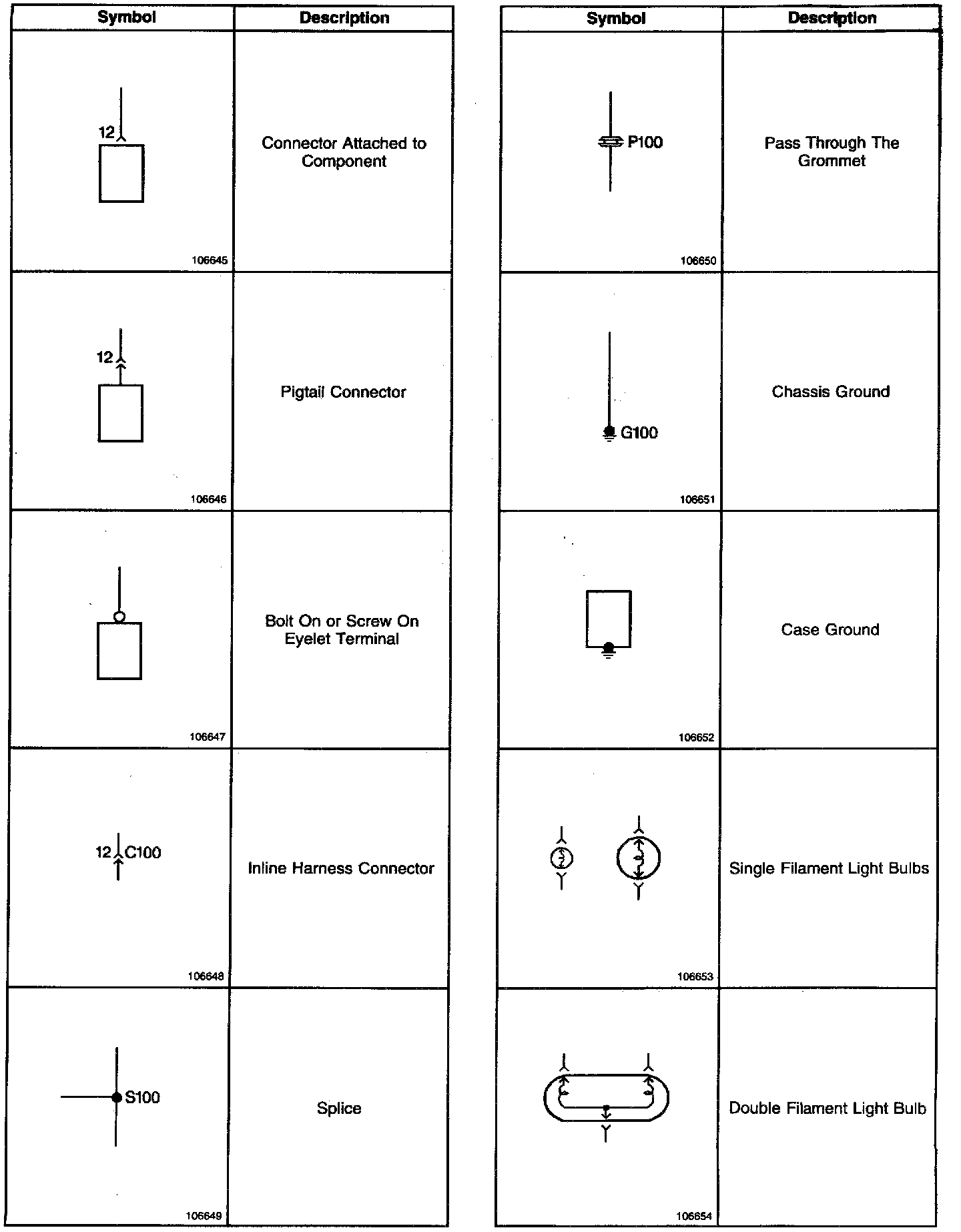

Electrical Symbols (Part 2 of 4):

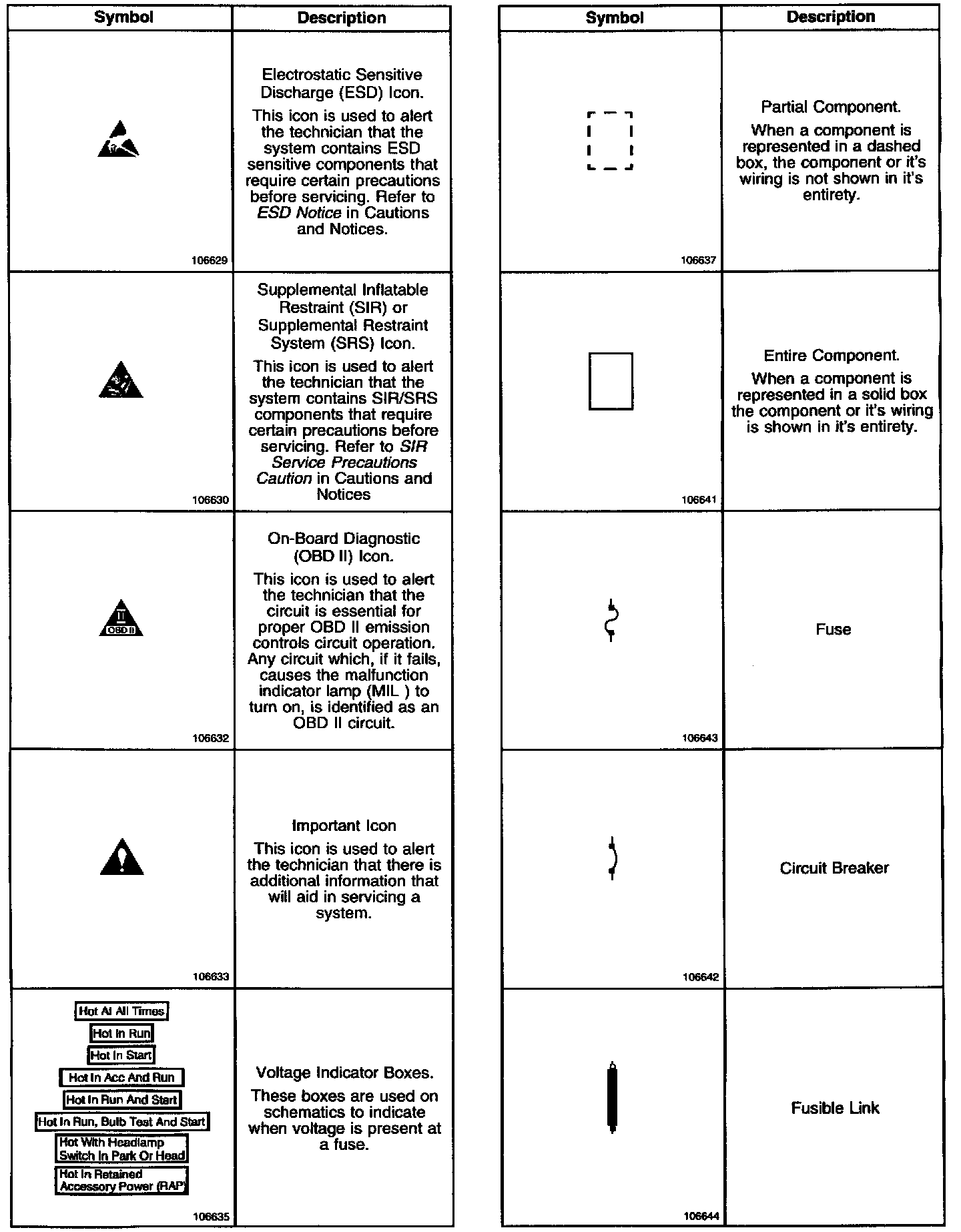

Electrical Symbols (Part 3 of 4):

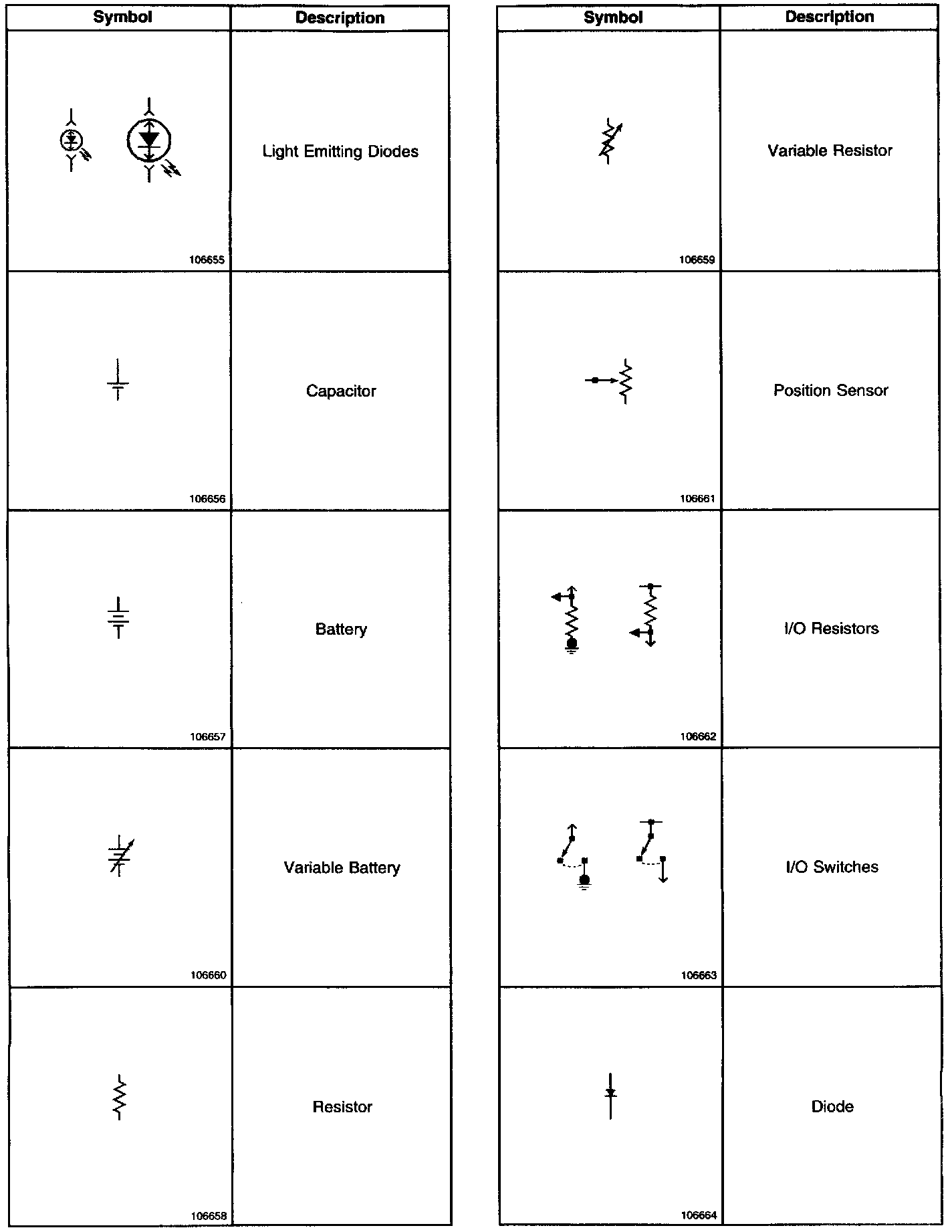

Electrical Symbols (Part 4 of 4):
