Home >> Cadillac >> 1998 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Air Flow Meter/Sensor >> Locations

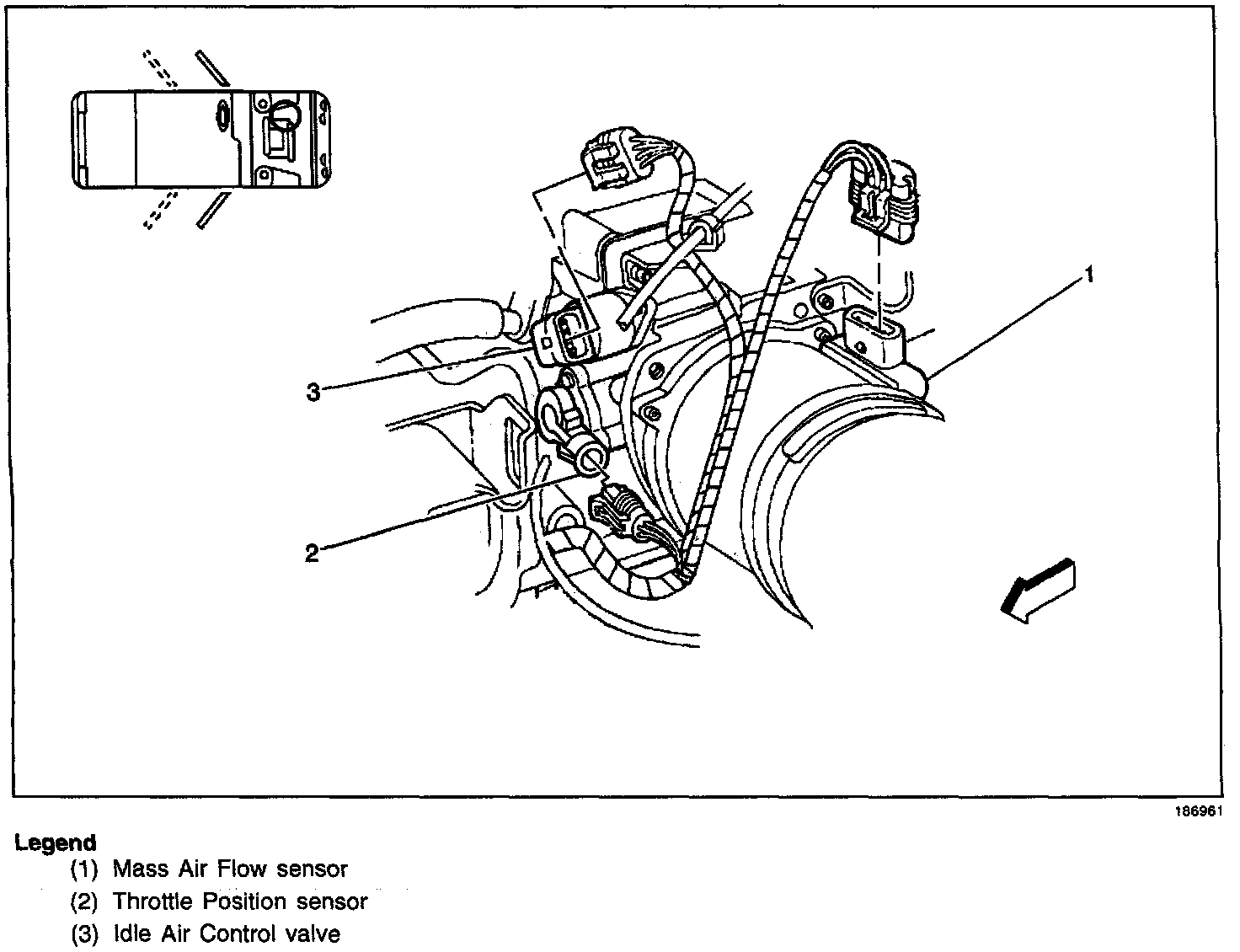

Air Flow Meter/Sensor: Locations

Description:




Center left hand of the engine, on the throttle body.
