Home >> Cadillac >> 1998 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Body and Frame >> Seats >> Power Seat Control Module >> Diagrams >> Adaptive Lumbar Module >> LH

LH

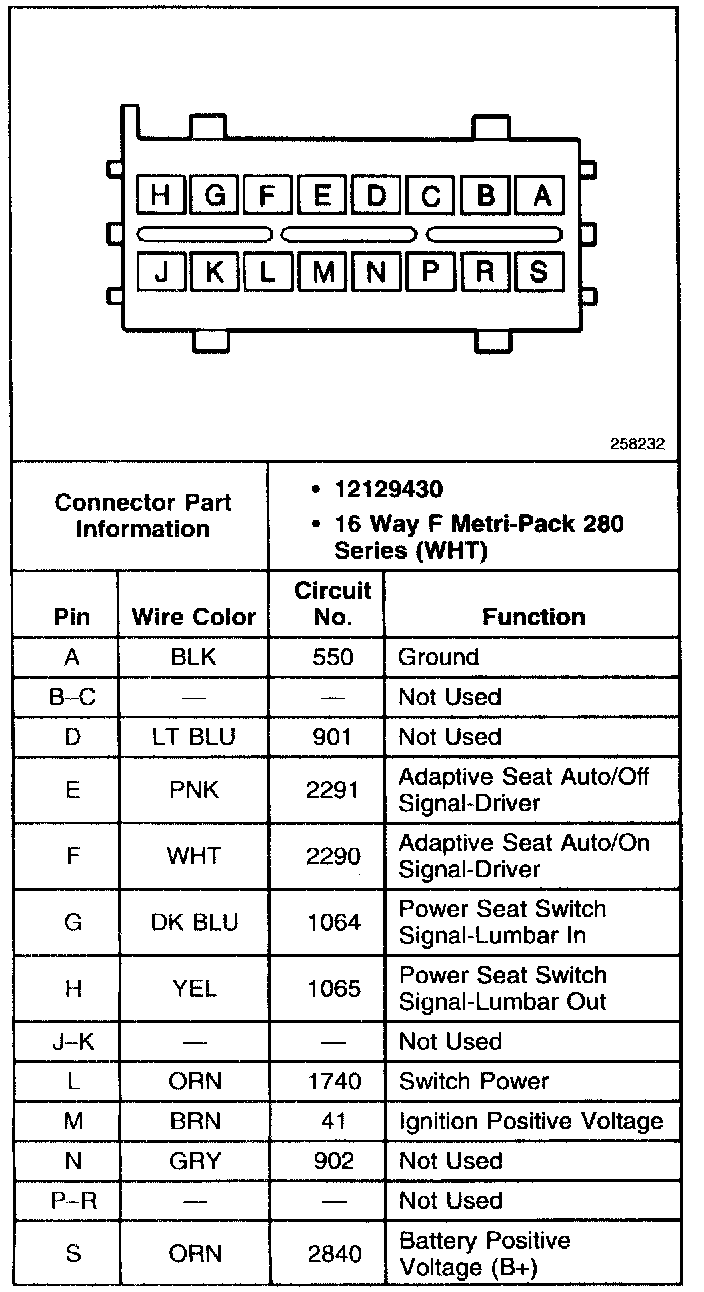

LH Adaptive Lumbar Module (A45 With AC9):
