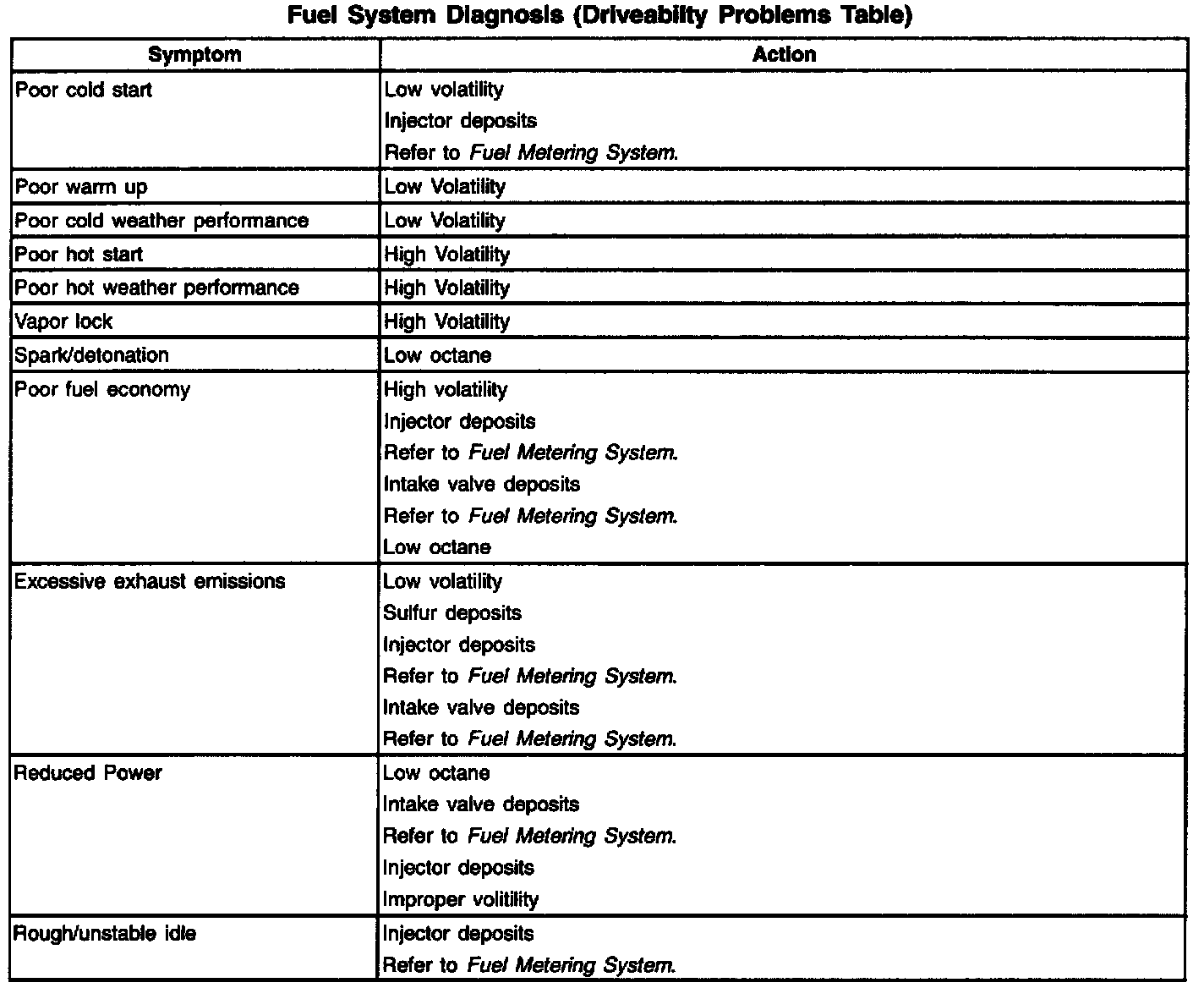

Driveability Problems Table

Always begin the fuel and the air control system diagnosis with, Fuel System Check. This chart will identify other charts for specific checks, such as:
^ Fuel Pressure Check
^ Injector Flow/Voltage Drop Check
^ Power Balance Check
^ Idle Speed Control Check
