Electrical Diagrams

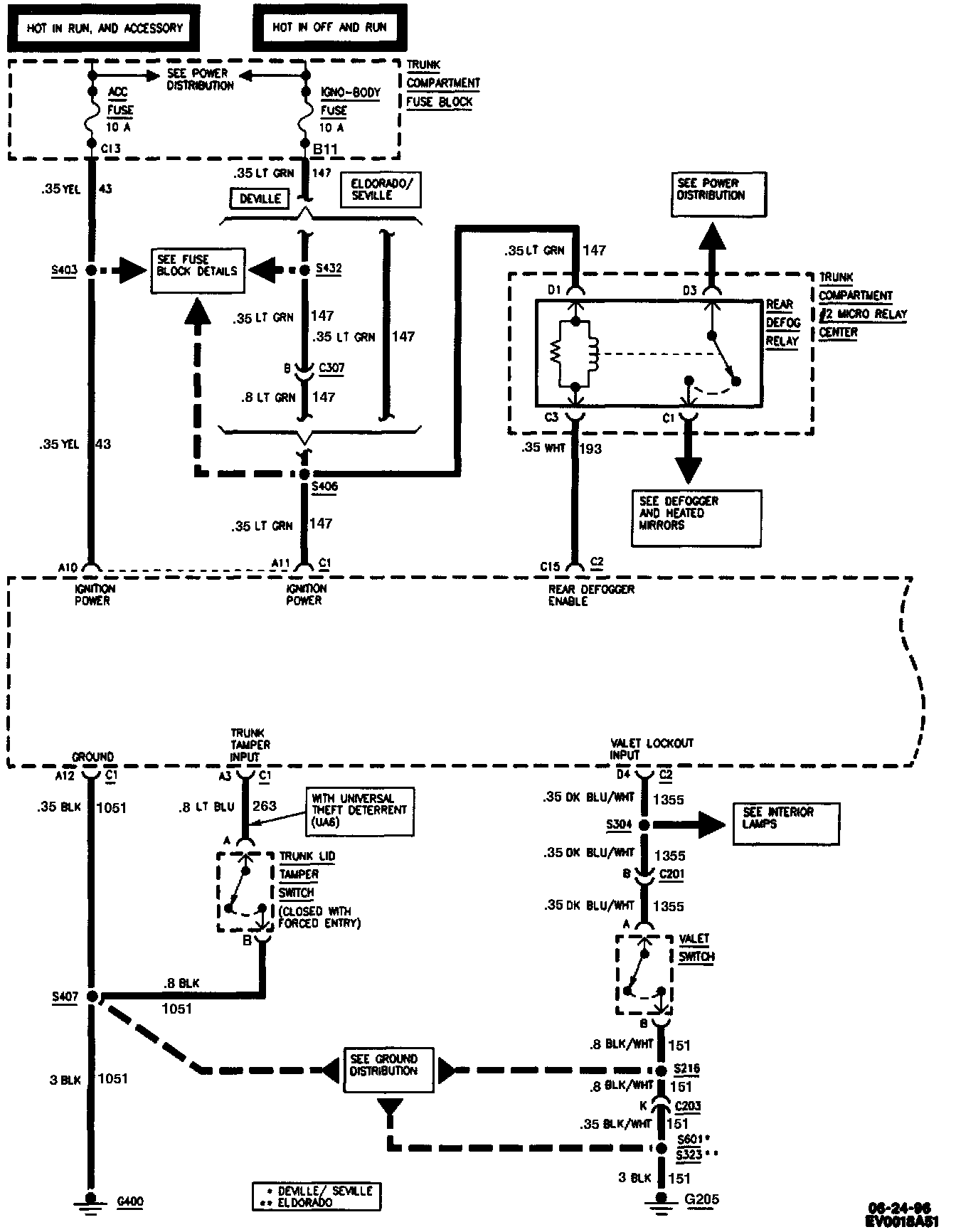

Body Control Module (PZM) Wiring Diagrams (1 Of 5):

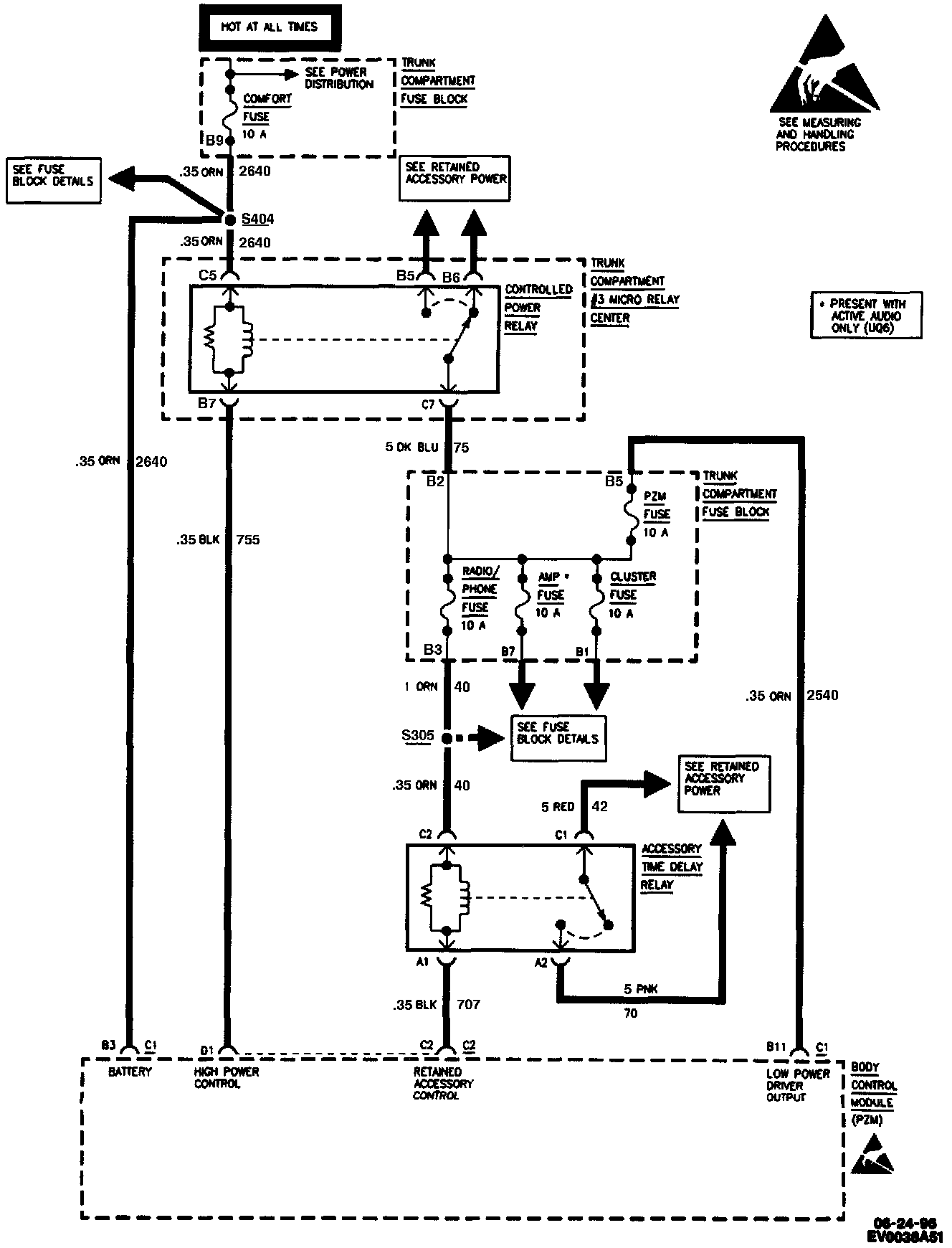

Body Control Module (PZM) Wiring Diagrams (2 Of 5):

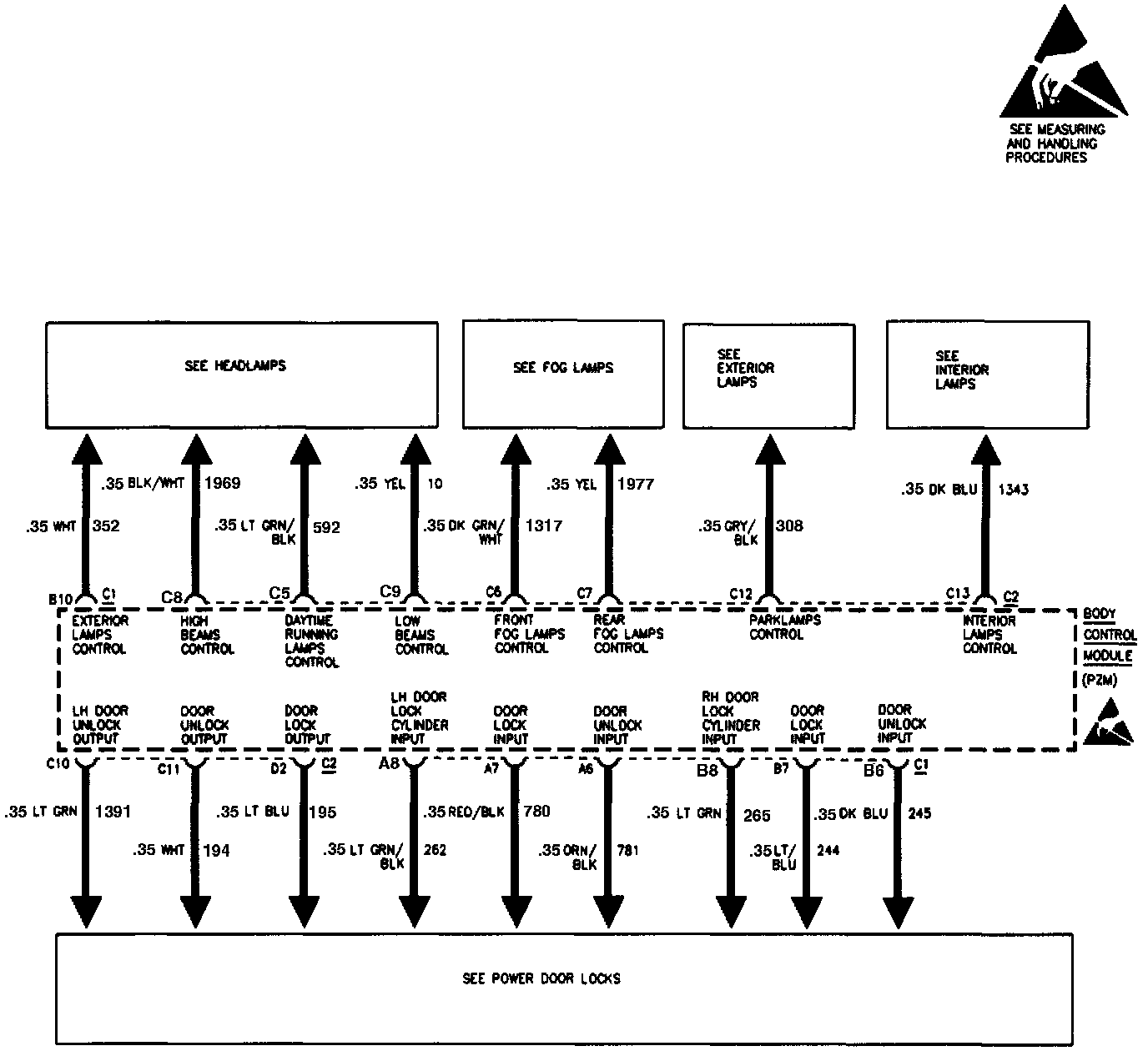

Body Control Module (PZM) Wiring Diagrams (3 Of 5):

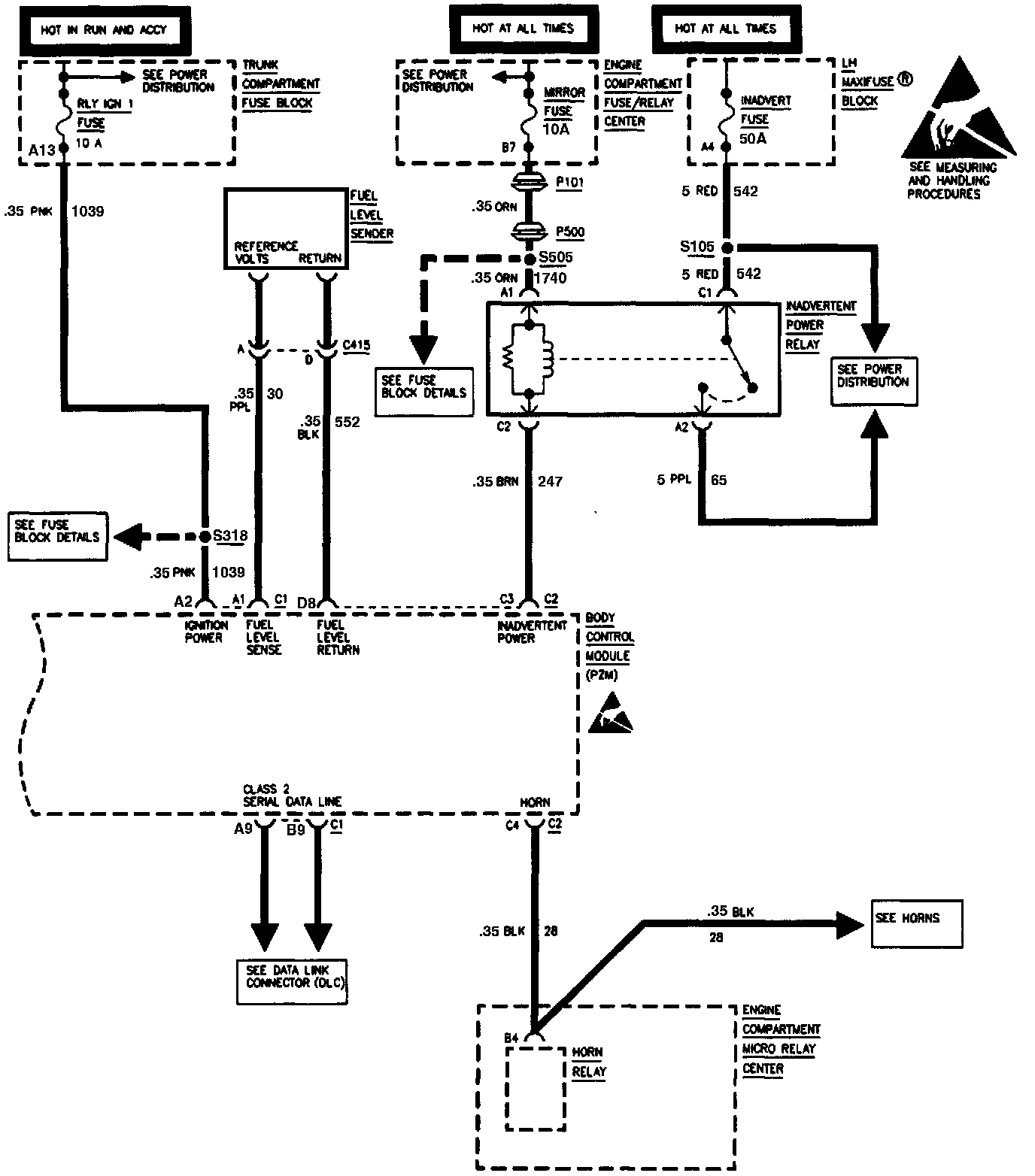

Body Control Module (PZM) Wiring Diagrams (4 Of 5):

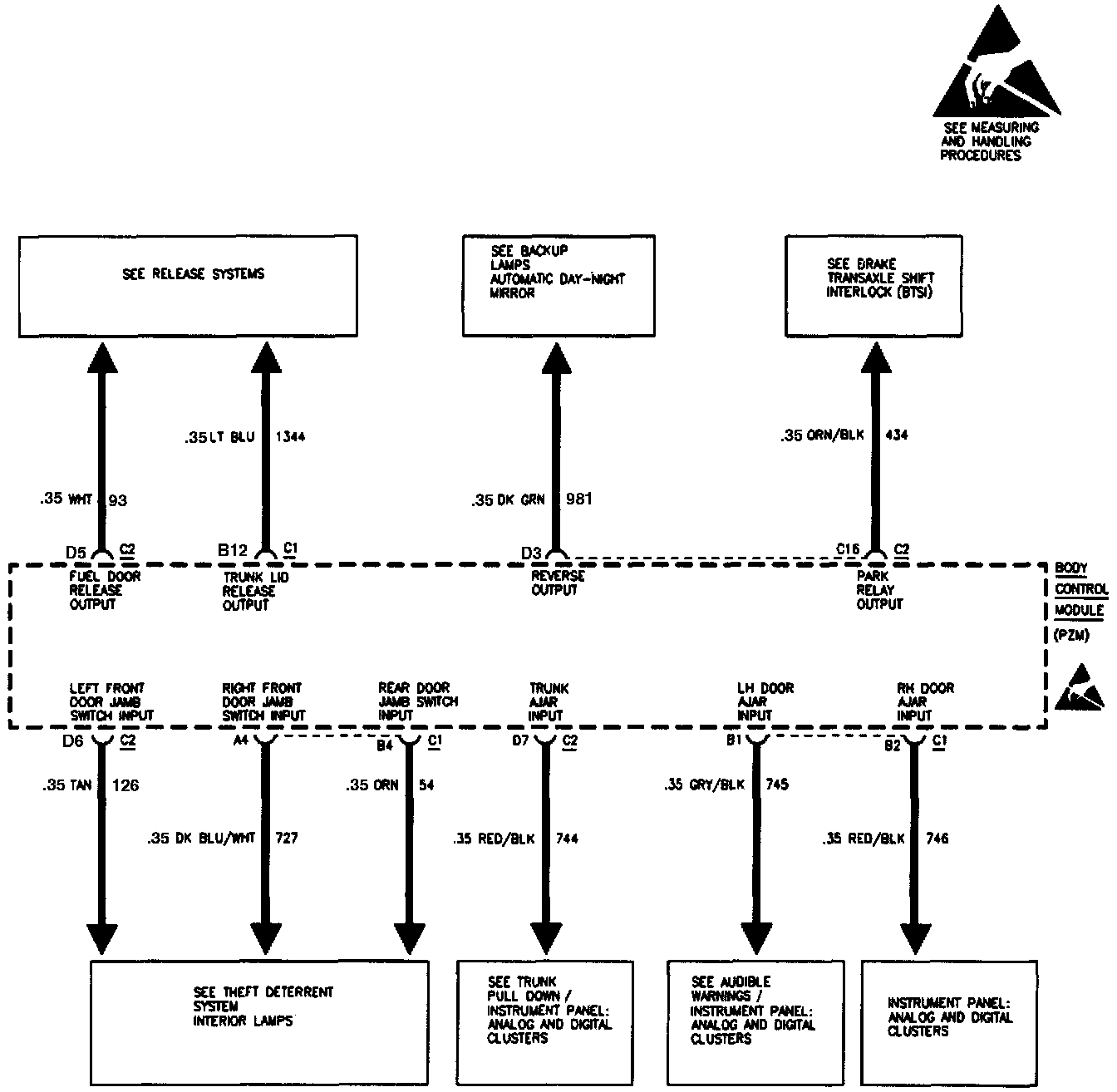

Body Control Module (PZM) Wiring Diagrams (5 Of 5):
