Front Caster Adjustment

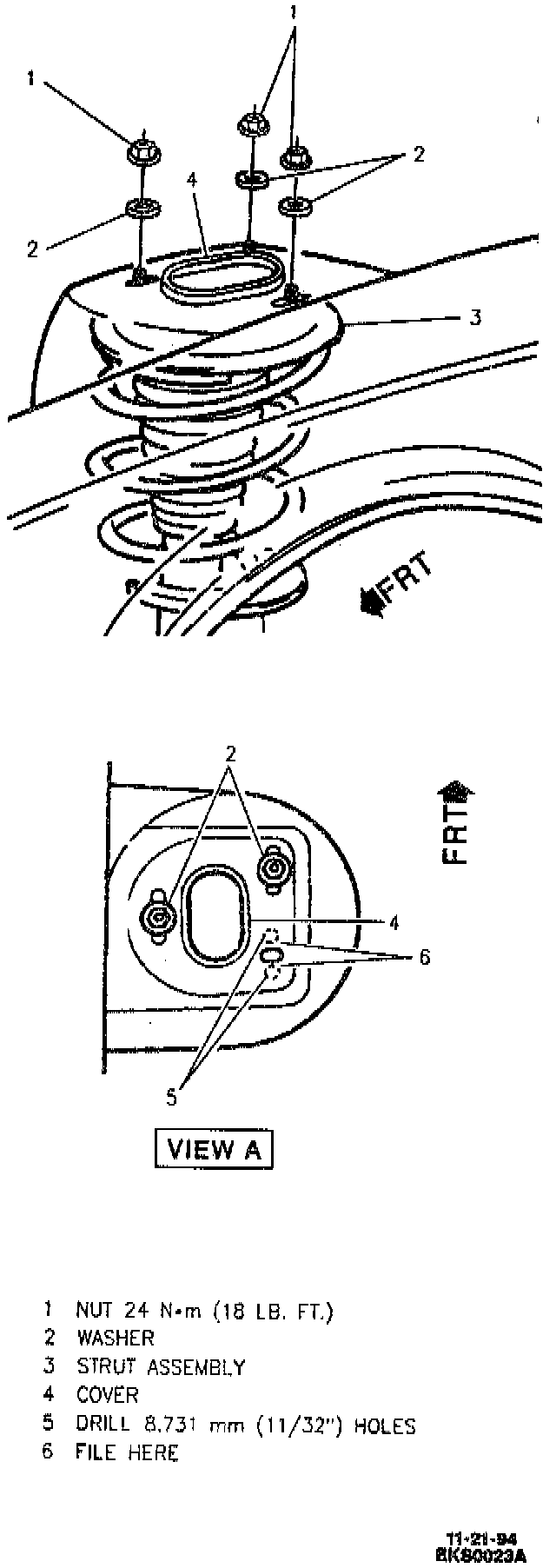

1. With car supported by its wheels, remove the three top strut mounting nuts and washers.
^ Set caster to specification by moving top of strut forward or rearward as required. The adjustment sensitivity is approximately 0.1° of caster per millimeter moved.
^ Tighten top strut mounting nuts to 24 Nm (18 ft. lbs.).
